117-079-100 83171 Century 170GL flux 130 amp cold 220V

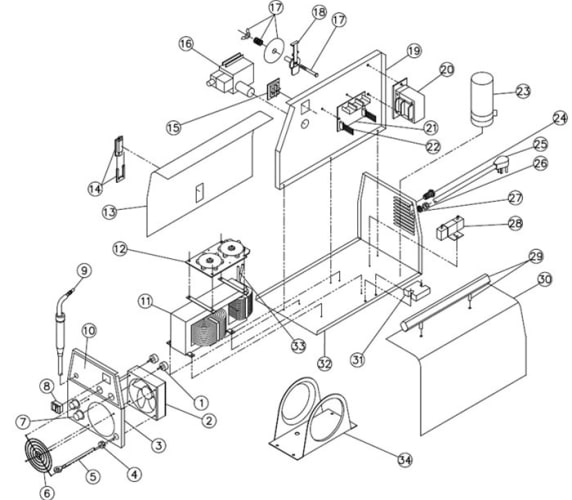

117-079 Replacement Parts List
Item No.
Customer #
Description
1
880-052-666
Heat & Wire Speed Controls with Potentiometers
2
216-101-000
Fan Motor
3
410-924-XXX
Front Panel
4
541-057-000
Strain Relief
5
238-159-666
Cable Assembly
6
412-641-666
Fan Guard
7
246-107-000
Knob
8
246-424-666
Switch
9
238-593-000
10' Mig Gun
(Used on units built after 01/01/2001, RED Trigger)

238-566-000
10' Mig Gun
(Used on units built from 05/02/1999 to 12/31/2000, BLACK Trigger)

238-507-000
10' Mig Gun
(Used on units built before 05/02/1999, RED Trigger,
Gas Diffuser has left-hand threads)
10
410-869-XXX
Control Panel
11
880-416-888
Transformer
12
880-327-666
Rectifier
13
410-869-XXX
Left Side Panel
14
312-295-666
Slide Latch with Clip
15
246-414-000
Terminal Block
16
880-406-666
Drive Motor with Gearbox

310-187-000
Steel Drive Roller, 0.024 / 0.030 / 0.035

880-427-666
Neoprene Drive Roller for Aluminum

S24355-6 Idle Roller (C609Z)

S24355-9 Wire Feed Tension Knob

S24355-10 Wire Feed Tension Spring

334-627-000 Inlet Guide Tube (cut to length 2.75")
17
131-419-000 Tension Kit Less 312-110-666
18
312-076-666 Spindle
19
410-867-XXX Center Panel
20
880-233-888,
880-041-888
Dirve Transformer
21
880-428-666
Circuit Board with Heat Sink
22
880-425-666
Wire Harness
23
213-041-000
Capacitor, 98,000 mf, 40 Volt DC
24
253-333-666
Push in Union Fitting 5/32"
25
248-330-666
Power Cord, 12-3, 6' with 6-50 Plug
26
512-215-666
Bushing
27
239-074-666
Strain Relief
28
245-145-666
25 Ohm, 50 Watt Resistor
29
312-296-666
Handle
30
410-864-XXX
Right Side Panel
31
216-055-666
Triac Relay
32
880-431-000
Base
33
246-428-000,
880-426-000
Thermal Protector
34
412-635-010
Tank Bracket
34
334-468-666
Liner for Mig Gun with RED Trigger (Not Shown)
35
334-476-666
Liner for Mig Gun with BLACK Trigger (Not Shown)
36
334-460-001
Regulator (Not Shown)
37
059-217-040
5/32" Gas Hose (Not Shown)
38
43090,
334-203-300,
KP2039-1B1,
M15522
0.025 Contact Tip (Not Shown)
39
43100,
334-160-300,
KP2039-2B1,
M15523
0.030 Contact Tip (Not Shown)
40
43110,
334-161-300,
KP2039-3B1,
M15524
0.035 Contact Tip (Not Shown)
41
43480,
334-203-300,
KP1942-1,
M15578
Steel Welding Nozzle (Not Shown)
42
312-110-666
Wire Spool Adapter (Not Shown)
43
41007
Ground Clamp (Not Shown)
44
KH600
Helmet (Not Shown)
