You are here: Home > Chicago Pneumatic Air Drills > Chicago Pneumatic CP7300RQC Air Drill Repair Parts

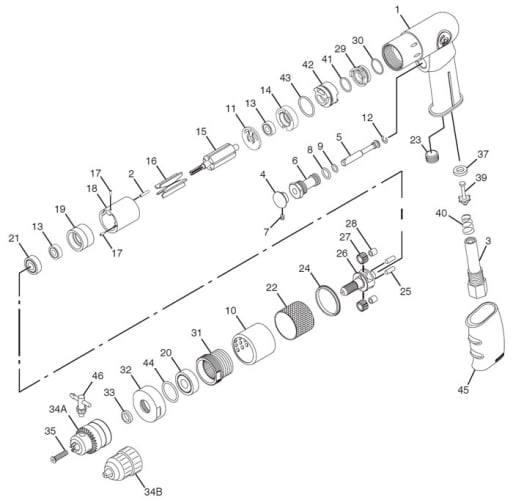

CP7300RQC Air Drill Repair Parts


Index
No.
Part No.
Description
No.
Req'd
1
2050528083
Motor Housing
1
2
2050528093 Spring Pin (2 x 10)
1
3
2050528103 Air Inlet
1
4
2050528113 Trigger
1
5
2050528123 Valve Stem
1
6
2050528133 Valve Bushing
1
7
2050528143 Set Screw (M3 x 4)
1
8
2050496523 O-Ring (7.65 x 1.78)
1
9
2050528153 O-Ring (6 x 1.5) 1
10
2050528163 Exhaust Deflector
1
11
2050528173 End Plate
1
12
2050528183 E-Ring (ETW-2.3)
1
13
2050486853 Ball Bearing (696ZZ)
2
14
2050528193 Rear End Plate
1
15
2050487613 Rotor
1
16
8940158741 Rotor Blade
5
17
2050528213 Spring Pin (1.5 x 4)
2
18
2050528223 Cylinder
1
19
2050528233 Front End Plate
1
20
2050486843 Ball Bearing (6000ZZ)
1
21
2050528243 Ball Bearing (698ZZ)
1
22
2050487643 Filter
1
23
2050528253 Set Screw (PT 1/8")
1
24
2050487663 Rubber Ring
1
25
2050487673 Pin (3.97 x 10.8)
2
26
2050528263 Cage
1
27
2050487693 Gear
2
28
2050487703 Bushing
2
29
2050528273 Reverse Knob
1
30
2050528283 O-Ring (14.5 x 1.5)
1
31
2050528053 Internal Gear
1
32
2050528293 Clamp Nut
1
33
2050487743 Washer
1
34A
2050486983 Drill Chuck 1/4"
1
34B
2050528623 Keyless Chuck
1
35
2050528303 Screw (L M5 x 25)
1
37
2050528313 Rubber Spacer
1
39
2050528573 Valve Stem
1
40
2050485633 Spring
1
41
2050528583 O-Ring (13.5 x 1.5)
1
42
2050528593 Reversing Valve
1
43
2050528603 O-Ring
1
44
2050528613 O-Ring
1
45
2050528073 Rubber Grip
1
60
2050497003
Chuck Key 1/4"
1
-
6158727980
Warning Label
1
-
2050528673 Tune-Up Kit (Incl: 13, 16, 20, 21, 27, 37 & 39)
