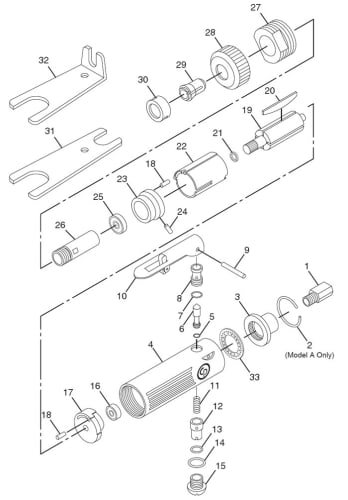

Chicago Pneumatic CP872 Die Grinder Repair Parts


Index
No.
Part No.
Description
No.
Req'd
1
CA144870
Bushing - Air Inlet (Model A)
1
-
CA157739
Bushing - Air Inlet (Model B) 1
2
CA144871 Ring - Retaining (Model A Only)
1
3
CA144872 Deflector - Exhaust (Model A)
1
-
CA157734
Deflector - Exhaust (Model B) 1
4
CA144873 Housing - Motor (Model A) 1
-
CA157736
Housing - Motor (Model B) 1
5
CA144874 O-Ring
1
6
CA144875 Valve - Throttle
1
7
CA144876 O-Ring 1
8
CA144877 Bushing - Throttle Valve 1
9
CA144878 Pin - Roll
1
10
CA144879 Lever - Throttle
1
11
CA144880 Spring - Throttle Valve 1
12
CA144881 Regulator - Air
1
13
CA144882 O-Ring 1
14
CA144883 O-Ring 1
15
CA144884 Plug - Throttle Valve 1
16
CA144885 Bearing - Ball
1
17
CA144886 Plate - Rear End
(Incl Index No: 18)
1
18
CA144887 Pin - Roll 2
19
CA144888 Rotor
1
20
CA144889 Blade Set - Rotor (4)
1
21
CA144890 Collar - Rotor
1
22
CA144891 Liner
1
23
CA144892 Plate - Front End
(Incl Index Nos: 18 & 24)
1
24
CA144893 Pin - Roll 1
25
CA144894 Bearing - Ball 1
26
CA144905 Spindle
1
27
CA144896 Nut - Clamp
1
28
CA144897 Cap - Housing
1
29
C138727
Collet (1/4")
1
-
C138289
Collet (6mm)
1
30
KF124525
Not - Collet
1
31
CA144908 Wrench - Spindle
1
32
CA144909 Spanner - Angle
1
33
CA157735
Silencer (Model B)
1
-
CA144813 Decal - Safety Warning (Not Shown)
1
-
CA145448 Motor Assembly
(Incl Index Nos: 16, 17, 19, 20, 21, 22, 23, 25 & 26)
1
-
CA127175
Rear Exhaust Accessory Kit (Model A) (Not Shown)
1
