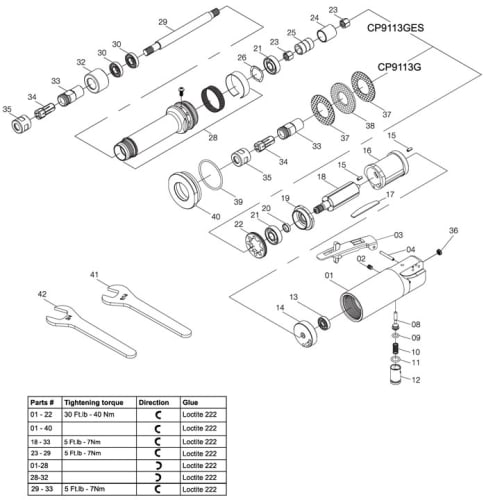

Chicago Pneumatic CP9113GES Die Grinder Repair Parts



Index
No.
Part No. Description No.
Req'd
A
2050562653
Throttle Kit (Version D)
-
3
-
Throttle lever
1
4
-
Pin
1
B
2050545123
Valve Kit
-
2+7
-
Screw set
2
8
-
Valve throttle screw set
1
9
-
O-Ring 1
10
-
Spring
1
11
-
O-Ring
1
12
-
Cap regulator
1
C
2050545133
Rear Plate Kit
-
13
2050544013
Bearing - ball
1
14
-
Plate rear end
1
D
2050545143
Front Plate Kit
-
19
-
Plate - front end
1
20
-
Spacer
1
21
2050544093
Bearing - ball
1
E
2050545153
Motor Kit
-
C
2050545133
Rear plate kit
1
D
2050545143
Front plate kit
1
15
-
Spring pin
2
16
2050544043
Cylinder
1
17
2050544053
Blade (set of 4)
1
18
2050544063
Rotor
1
22
2050544103
Nut clamp
1
F
2050545253
Extension Kit (CP9113GES
-
21
-
Bearing - ball
1
26
-
Washer
1
29
2050544463
Spindle
1
28
2050544453
Housing Assembly (incl deflector & grid)
1
G
2050545263
Coupling Kit (CP9113GES)
-
23
-
Nut
2
24
-
Spacer
1
25
-
Coupling
1
H
2050545273
Collet Holder Kit
-
33
-
Collet holder
1
35
-
Collet nut
1
I
2050545243
Small Parts Kit (CP9113 & CP3040 Series)
-
2
-
Screw 1
7
-
Screw
1
4
-
Pin (set of 2)
1
5
-
Spring
1
6
-
Pin
1
15
-
Spring pin
2
26
-
Washer (for CP9113GES)
1
-
-
Grid + screw (CP9113GES & CP3040 Series)
1
-
-
Key (for CP3040)
1
-
21
2050544093
Bearing - ball *
30
2050544143
Bearing - ball
2
31
2050544253
Nut CP9113GES
1
34
2050544493
1/4" (6.35 mm) Collet - 200 Series
1
37
2050544533
Muffler CP9113G (incl 38)
1
40
2050544553
Nut CP9113G
1
41
2050544513
Spanner wrench 1
42
2050544523
Spanner wrench
1
-
2050545233
Tune-up Kit
-
9
-
O-Ring 1
11
-
O-Ring
1
17
2050544053
Blade (set of 4)
1
39
-
O-Ring (for CP9113GES)
1
Sort By:
2050544013 Chicago Pneumatic Ball Bearing 2050544013 Chicago Pneumatic Ball Bearing

2050544013 Chicago Pneumatic Ball Bearing

Price $14.22
2050544043 Chicago Pneumatic Cylinder 2050544043 Chicago Pneumatic Cylinder

2050544043 Chicago Pneumatic Cylinder

Price $79.58
2050544063 Chicago Pneumatic Rotor 2050544063 Chicago Pneumatic Rotor

2050544063 Chicago Pneumatic Rotor

Price $66.37
2050544093 Chicago Pneumatic Ball Bearing 2050544093 Chicago Pneumatic Ball Bearing

2050544093 Chicago Pneumatic Ball Bearing

Price $20.66
2050544103 Chicago Pneumatic Nut Clamp 2050544103 Chicago Pneumatic Nut Clamp

2050544103 Chicago Pneumatic Nut Clamp

Price $38.31
2050544143 Chicago Pneumatic Ball Bearing 2050544143 Chicago Pneumatic Ball Bearing

2050544143 Chicago Pneumatic Ball Bearing

Price $27.21
2050544453 Chicago Pneumatic Housing Kit 2050544453 Chicago Pneumatic Housing Kit

2050544453 Chicago Pneumatic Housing Kit

Price $168.07
2050544513 Chicago Pneumatic Spanner Wrench 2050544513 Chicago Pneumatic Spanner Wrench

2050544513 Chicago Pneumatic Spanner Wrench

Price $5.42
2050544523 Chicago Pneumatic Spanner Wrench 2050544523 Chicago Pneumatic Spanner Wrench

2050544523 Chicago Pneumatic Spanner Wrench

Price $5.42
2050544533 Chicago Pneumatic Muffler Cp9113G 2050544533 Chicago Pneumatic Muffler Cp9113G

2050544533 Chicago Pneumatic Muffler Cp9113G

Price $16.18
2050545123 Chicago Pneumatic Valve Kit 2050545123 Chicago Pneumatic Valve Kit

2050545123 Chicago Pneumatic Valve Kit

Price $17.69
2050545153 Chicago Pneumatic Motor Kit 2050545153 Chicago Pneumatic Motor Kit

2050545153 Chicago Pneumatic Motor Kit

Price $318.41
2050545233 Chicago Pneumatic Tune-Up Kit CP9113 Series 2050545233 Chicago Pneumatic Tune-Up Kit CP9113 Series

2050545233 Chicago Pneumatic Tune-Up Kit CP9113 Series

Price $11.90
2050545243 Chicago Pneumatic Small Part Kit 2050545243 Chicago Pneumatic Small Part Kit

2050545243 Chicago Pneumatic Small Part Kit

Price $22.10
2050545253 Chicago Pneumatic Extension Kit Cp9113Ges 2050545253 Chicago Pneumatic Extension Kit Cp9113Ges

2050545253 Chicago Pneumatic Extension Kit Cp9113Ges

Price $237.35
2050545263 Chicago Pneumatic Coupling Kit Cp9113 2050545263 Chicago Pneumatic Coupling Kit Cp9113

2050545263 Chicago Pneumatic Coupling Kit Cp9113

Price $26.55
2050545273 Chicago Pneumatic Collet Holder Kit 2050545273 Chicago Pneumatic Collet Holder Kit

2050545273 Chicago Pneumatic Collet Holder Kit

Price $60.90
CP9113GES Chicago Pneumatic Steel Body 1/4" (6.35mm) Collet 1Hp Industrial Die Grinder with Extended Shaft CP9113GES Chicago Pneumatic Steel Body 1/4" (6.35mm) Collet 1Hp Industrial Die Grinder with Extended Shaft

CP9113GES Chicago Pneumatic Steel Body 1/4" (6.35mm) Collet 1Hp Industrial Die Grinder with Extended Shaft - Industrial extended shaft die grinder. High body durability. Withstands rough usage. Withstands extreme temperatures.

Price $520.40
