6001 SERIAL NUMBER 00001-20939 Associated Battery Charger Parts List



Part # Description
6202 Positive Clamp Assembly
6202 Negative Clamp Assembly
604579 Stop / Go Light
610190 Fan Motor
605183 Front Leg
605184 Wheels W/ Nuts
605185 Axle W/ Nuts
605186 Base
605189 Transformer
605190 Rectifier Assembly (New # 610100)
605192 Cabinet Fastener Set
610189 Fan Blade
605196 Decal Set
605197 Circuit Breaker Assembly
605200 Venturi
611254 Timer W/ Knob
605204 Amp Charge Meter
605205 Ac Cord (14-3)
605207 Dc Cable Set
605208 Top Panel
605209 Side Panel (1)
605210 Front Or Rear Panel (1)
605211 Lid
605212 Cable Brackets
605213 Handle
611187 Switch W/ Knob
6204 Jaw Kit (Repairs 1 Clamp) Obs. Use 610970
Sort By:
Page of 1
020-0076 Associated Chrome Handle Screws (Each) 020-0076 Associated Chrome Handle Screws (Each)

020-0076 Associated Chrome Handle Screws (Each)

Price $1.54
600121 Associated Meter Cover 600121 Associated Meter Cover

Clear Acrylic Lens Replaces Cover For 605204 Meter And Others

Price $10.02
6001A Associated 100/75/375 Amp 6/12 Volt Automotive Battery Charger W/ Start 6001A Associated 100/75/375 Amp 6/12 Volt Automotive Battery Charger W/ Start

Made In The USAThe 6001A is one of the highest performance fleet car battery charger on the market, comes with our best manufacturer's boost rating of 625 Amps. Charges 6 & 12 volt batteries. Heavy-duty transformer, patented "Sub-Sil" multi diode rectifiers, longer AC cord and 8' (4 AWG) DC leads are standard features for higher performance. Features include, fully insulated "Flex-Spring" clamps; the strongest in the industry. An Automatic Timer for accurate charging. Patented "Stop/Go" light polarity protection. Heavy-duty chrome plated handle. Rugged 7 inch wheels. Made in the USA. UL listed for indoor/outdoor use, "Safe In Any Weather"

Price $752.52
602101 Associated 500 Amp Positive Clamp Assembly 602101 Associated 500 Amp Positive Clamp Assembly

Professional quality heavy duty 500 amp replacement clamp for all booster cables. Replace Associated clamps or other manufacturer's products with these professional quality insulated clamps. Clamps incorporate Associated's innovative "Flexi-Spring" for long cable life at the point it bends most. Possibly the best clamp in the industry.

Price $26.74
602102 Associated 500 Amp Negative Clamp Assembly 602102 Associated 500 Amp Negative Clamp Assembly

Professional quality heavy duty 500 amp replacement clamp for all booster cables. Replace Associated clamps or other manufacturer's products with these professional quality insulated clamps. Clamps incorporate Associated's innovative "Flexi-Spring" for long cable life at the point it bends most. Possibly the best clamp in the industry.

Price $26.48
604579 Associated Stop/Go Polarity Indicator Assembly 604579 Associated Stop/Go Polarity Indicator Assembly

STOP/GO LITE Assembly will upgrade any battery charger clamp kit or repair an existing damaged light. A great safety feature for any battery charger. Fits Snugly inside a clamp lever and reads red for no-go, green for go, preventing reverse connection in poorly lit or unreadable conditions.

Price $33.71
604592 Associated Stop/Go Polarity Indicator Lamp 604592 Associated Stop/Go Polarity Indicator Lamp

604592 Associated Booster Cables STOP/GO LITE Assembly. This is the replacement light only (does not include resistor See 604579 for complete kit). For repair of an existing damaged light. A great safety feature for any battery charger. Fits Snugly inside a clamp lever and reads red for no-go, green for go, preventing reverse connection in poorly lit or unreadable conditions.

Price $29.45
605183 Associated Front Leg 7" Wheeled Units 605183 Associated Front Leg 7" Wheeled Units

605183 Associated Front Leg 7" Wheeled Units

Price $44.80
605184 Associated Wheel Hub Kit 3/8" Axle Units 605184 Associated Wheel Hub Kit 3/8" Axle Units

605184 Associated Wheel Hub Kit 3/8" Axle Units. If you have 1/2" axle this may replace with some modifications.

Price $65.01
605190 Associated Duratron Selenium Rectifier 605190 Associated Duratron Selenium Rectifier

605190 Associated Duratron Selenium Rectifier

Price $90.00

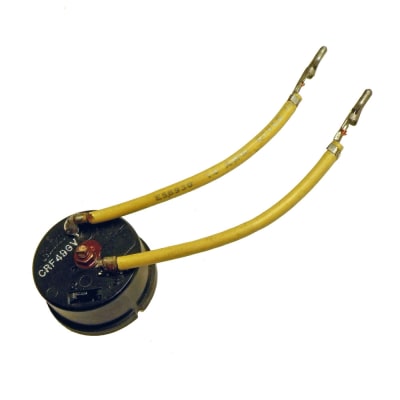

605197 Circuit Breaker 6001-2 CRF49GV 605197 Circuit Breaker 6001-2 CRF49GV

605197 Circuit Breaker 6001-2 CRF49GV

Price $31.52
605201 Associated Timer With Knob 605201 Associated Timer With Knob

605201 Associated Timer With Knob

Discontinued See 611254
605204 Associated Ammeter 0-100 Amp Range W/ Boost 605204 Associated Ammeter 0-100 Amp Range W/ Boost

Associated 605204 Ammeter 0-100 Amp Range w/ Boost. Includes Sealing Gasket, Mounting Template and mounting hardware.

Price $29.34
605205 Associated 115 Volt Power Cord SJO 14/3 With Bushing 605205 Associated 115 Volt Power Cord SJO 14/3 With Bushing

605205 Associated 115 Volt Power Cord SJO 14/3 With Bushing

Price $35.53
605207 Associated DC Cable Set DISC SEE 611074 605207 Associated DC Cable Set

Associated 605207 DC Cable Set DISC SEE 611074

Discontinued See 611074
605209 Associated Universal Side Panel 6001 6002 605209 Associated Universal Side Panel 6001 6002

605209 Associated Side Panel 6001, 6002, 6003, 6008. Universal Side panel utilized on both sides (axle cutout on front and back).

Price $41.02
605211 Associated Lid Assembly 605211 Associated Lid Assembly

Lid Assembly with hinge, screws and rubber bumper pad. Replace your lid and keep those knobs from getting knocked off. Protects the switches and gauge s from damage and weather.

Price $27.03
605213 Associated Chrome Handle 605213 Associated Chrome Handle

Chrome Handle with screws and insulated clamp bar.

Price $52.11
605675 Associated Rotary Switch Multi Knob Kit 605675 Associated Rotary Switch Multi Knob Kit

605675 Associated Rotary Switch Multi Knob Kit. This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob of your choice and discard the rest. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.

When Discontinued See 611187

Discontinued See 611187
610100 Associated Heatsink Rectifier Kit 610100 Associated Heatsink Rectifier Kit

610100 Associated Heatsink Rectifier Kit. The Highest rated Rectifier on the market, completely assembled, includes mounting hardware and insulators.

Price $57.04
610189 Associated Fan Blade Kit 610189 Associated Fan Blade Kit

610189 Associated Fan Blade Kit, includes two blades with the same diameter, rotation, pitch and wings but differing shaft diameter for older units.

Price $14.39
610190 Associated Fan Motor Kit With Blade 115 Volt 610190 Associated Fan Motor Kit With Blade 115 Volt

Universal Fan Motor Installation Kit includes everything needed to install on virtually any unit. Comes complete with a 115v. skeleton frame motor (reversible), equipped with 1/4" spade terminals for electrical connections, a fan blade, a set of 1/4" female spade terminal adapter leads, 1/4" Crimp-on female spades for alternate hook up, 2 sets of pin terminals for molex plug installation and 2 wire nuts.

Price $62.04
610517 Associated Clamp Bar 7" 610517 Associated Clamp Bar 7"

610517 Associated Clamp Bar 7"

Price $7.58
610753 Associated Chrome Handle 610753 Associated Chrome Handle

610753 Associated Chrome Handle

Discontinued See 605213
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp) 610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.

Price $17.87
611074 Associated DC Cable Assembly 8' (4 AWG) 611074 Associated DC Cable Assembly 8' (4 AWG)

Associated DC Cable Assembly, with 500 amp, fully insulated, "Flex-Spring" clamps. 8' (4 AWG)

Price $163.90
611187 Associated 8 Position Rotary Selector Switch With Pointer Knob 611187 Associated 8 Position Rotary Selector Switch With Pointer Knob

This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.

Price $44.18
611254 Associated 120 Minute Electronic Timer with Knob Upgrade Kit 611254 Associated 120 Minute Electronic Timer with Knob Upgrade Kit

611254 Associated 120 Minute Electronic Timer with Knob, retrofit for units with a mechanical timer. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Price $76.68
6200 Associated Side Terminal Adapter Pair 6200 Associated Side Terminal Adapter Pair

Need side terminal adapters? Model 6200 fits Associated and most other insulated clamps for easier connections. Side terminal adapters clip easily into place inside the clamp rivit and pull out of the way when not in use.

Price $7.34
6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair) 6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair)

Made In U.S.A.Professional quality heavy duty 500 amp replacement clamps for all booster cables. Replace Associated clamps or other manufacturer's products with these professional quality insulated clamps. Clamps incorporate Associated's innovative "Flexi-Spring" for long cable life at the point it bends most. Possibly the best clamp in the industry.

Price $36.29
6204 Associated 500 Amp Jaw Kit 6204 Associated 500 Amp Jaw Kit (Repairs One Clamp)

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.

Discontinued See 610970
