You are here: Home > Welding & Plasma Cutting > Welding & Plasma Cutting Parts > Welder Parts - Arc > 110-114 Tri Star Century 230/140 Amp AC/DC Arc Welder 110-114 Tri Star Century 230/140 Amp AC/DC Arc Welder
![]()

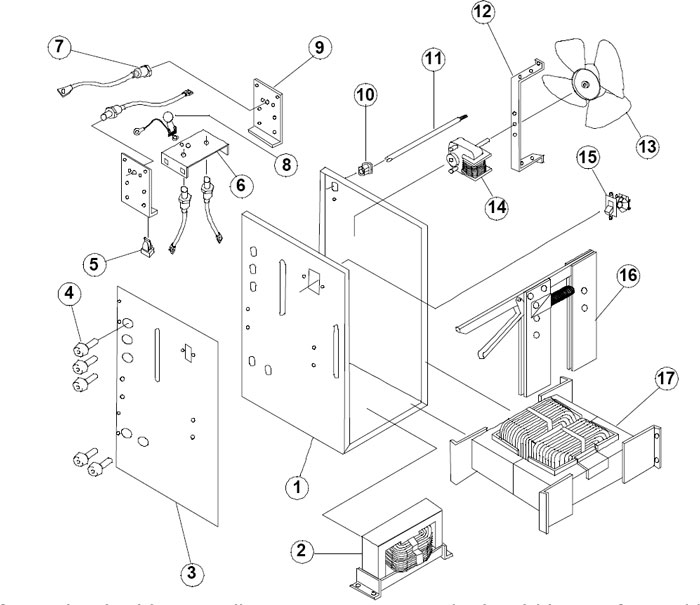

| ITEM | DESCRIPTION | PART NO. |
| 1 | Welderbase | 410-182-xxx |
| 2 | ReactorCoil Assembly | 860-986-888 |
| 3 | Faceplate | 711-133-xxx |
| 4 | JackReceptacle Assembly | 312-028-100 |
| 5 | Insulator | 512-072-000 |
| 6 | HeatSink, Channel | 412-433-000 |
| 7 | Diode | 860-476-000 |
| 8 | TransientVoltage Protector | 860-189-000 |
| 9 | HeatSink, Angle | 412-436-000 |
| 10 | Strainrelief | 541-019-000 |
| 11 | Powercord | 248-301-000 |
| 12 | Fanmounting bracket | 411-072-000 |
| 13 | Fanblade | 316-007-666 |
| 14 | FanMotor | 216-086-000 |
| 15 | Switch | 246-371-000 |
| 16 | Shuntassembly | 860-402-666 |
| 17 | Transformerass’y | 860-431-888 |
| 18 | Cover(not shown) | 410-164-100 |
| 19 | GroundCable W/Clamp (not shown) | 4007 |
| 20 | ElectrodeCable W/Holder (not shown) | 4017 |
![]()
110-114 Tri Star Century 230/140 amp AC/DC arc welder
