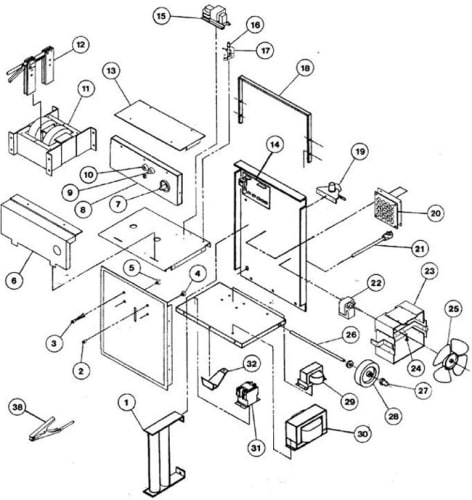

| 118-004Replacement Parts List | ||
| Item No. | Part No. | Description |
| 1 | N/A | Resistor Bank Assembly |
| 215-028-000 | 8 Ohm, 420 Watt Resistor (needs 2) | |
| 2 | 245-088-000 | Red Lamp |
| 3 | 245-078-000 | Amber Lamp |
| 4 | 246-164-000 | Toggle Switch, SPDT |
| 5 | 246-163-000 | Toggle Switch, DPST |
| 6 | 410-463-060 | Access Panel |
| 7 | 210-220-000 | Coupling Coil |
| 8 | 410-537-020 | Torch Mounting Panel |
| 9 | 253-058-000 | Fitting, Pilot Arc |
| 10 | 312-045-666 | Ground Cable Jack |
| 11 | 860-964-888 | Transformer |
| 12 | 860-402-666 | Shunt |
| 13 | 410-533-030 | Top Panel |
| 14 | 860-962-666 | Main Circuit Board |
| 15 | 860-855-888 | High Voltage Transformer |
| 16 | 252-003-000 | Air Pressure Switch |
| 17 | 246-166-666 | Solenoid with Fitting |
| 18 | 412-256-016 | Handle |
| 19 | 254-003-666 | Regulator |
| 20 | 251-002-666 | Gauge |
| 21 | 860-850-000 | Capacitor Assembly |
| 22 | 218-089-000 | Power Cord |
| 23 | 216-085-366 | Fan Motor |
| 24 | 860-849-666 | Diode, 70 Amp, 1000 Volt |
| 25 | 316-010-000 | Fan Blade |
| 26 | 413-022-106 | Axle |
| 27 | 068-024-666 | Hubs (2) |
| 28 | 413-030-000 | Wheel |
| 29 | 860-852-888 | Control Transformer 230 Volt AC to 120 & 24 Volt AC |
| 30 | 860-966-888 | Reactor Coil |
| 31 | 216-165-000 | Contactor |
| 32 | 413-023-106 | Foot |
| 33 | 238-228-000 | Ground Cable with Clamp |
| 34 | 860-853-666 | 5 Ohm, 50 Watt Resistor |
| 35 | 860-993-666 | 500 Ohm, 100 Watt Resistor |
| 36 | 213-022-000 | Single Sided Spark Tip |
| 37 | 213-023-000 | Double Sided Spark Tip |
| 38 | 860-992-000 | 25' Torch Assembly |
| 39 | 44040 (334-266, 020104) | Standard Nozzle Cap |
| 40 | 44010 (334-265, 020115) | Standard Nozzle |
| 41 | 44030 (334-264, 020101) | Swirl Ring |
| 42 | 44020 (334-263, 020103) | Electrode |
| 43 | 44050 (512-087, 044016) | O-Rings |
| 44 | 44140 (334-271, 020200) | Tapered Nozzle Cap |
| 45 | 44110 (334-270, 020197) | Tapered Nozzle |
