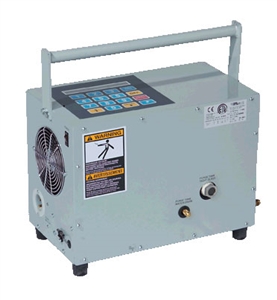

MPS-240 RefTec MINIPURGE Portable Refrigerant Purge Unit

MPS-240 RefTec MINIPURGE Portable Refrigerant Purge Unit

Price $8,413.20


Product Code: REFMPS-240
Qty:

Description Prop65

MPS-240 RefTec MINIPURGE Portable Refrigerant Purge Unit High Speed Purge Unit Processes all Refrigerants

MiniPurge portable purge unit temporarily connects to chillers and storage tanks charged with high or low pressure refrigerants and rapidly eliminates non-condensibles. Unit is ideal for supplementing thermal purge units during seasonal start ups on R11 or R123 chillers. A 0.5hp compressor draws refrigerant vapor, pumps it through a condenser, and compresses it in a stainless steel purge vessel. Condensed refrigerant is forced back to the cooling system or recovery tank. When pressure rises to a certain point, non-condensibles are discharged with virtually no loss of refrigerant

High Speed Purge Unit Processes all Refrigerants. An on board compressor greatly accelerates purge speed by removing vapor from the cooling system and forcing processed refrigerant liquid back into the cooling system. Vapor is pumped through a high capacity condenser then compressed in a purge vessel. Microprocessor controls calculate the most efficient time to purge non-condensibles. Achieves discharge efficiency as high as 0.08 lb-refg/lb non condensibles and is many times more efficient than other thermal purge units on the market.
Product Features
  • High Speed Purge Unit Processes all Refrigerants
  • On board compressor greatly accelerates purge speed by removing vapor from the cooling system and forcing processed refrigerant liquid back into the cooling system.
  • Eliminates air from either high or low pressure refrigerants
  • Smallest and lightest purge unit on the market. At 65-lbs in weight, it is readily hand carried
  • Vapor is pumped through a high capacity condenser then compressed in a purge vessel.
  • Microprocessor controls calculate the most efficient time to purge non-condensibles
  • Achieves discharge efficiency as high as 0.08 lb-refg/lb non-condensibles
  • Many times more efficient than thermal purge units on the market
Specifications

MPS-115 103-127V,50/60Hz,0.5hp,1Ph,15A
MPS-240 220-240V,50/60Hz,0.5hp,1Ph,15A


Discharge efficiency
High pressure gas: 0.20-lb refg/lb-air
Low pressure gas:
0.08-lb refg/lb-air
Weight: 65-lbs
Dimensions: 18”l x 10”w x 16”h
Connections: 3/8” flare
Warranty: 1 year parts
