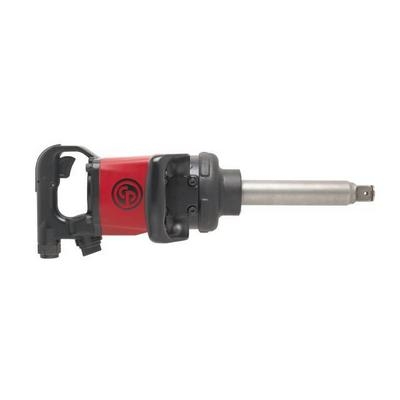

CP7782-6 Chicago Pneumatic 1" Impact Wrench 6" Anvil

CP7782-6 Chicago Pneumatic 1" Impact Wrench 6" Anvil

Price $542.43
Deal of the Day Price: $499.95
Part #: 8941077826

Product Code: CPTCP7782-6
Qty:

Description Prop65

CP7782-6 1" Impact Wrench 6" Anvil - This 1" square drive, straight impact wrench has the following features: 6" extended anvil, 1,920 ft-lbs of torque, a pinless closed rocking dog mechanism, dual socket retainers, an ergonomic side handle and a full teasing trigger.
Product Features
  • 1" straight impact wrench with 6" extended anvil
  • 1920 ft.lbs - 2600 Nm of maximum torque in reverse
  • Pinless closed reinforced rocking dog impact mechanism
  • Socket retainer ring combined with hole retainer
  • Ergonomic side handle
  • Full teasing trigger
  • Regulator with integrated forward/reverse with 3-position power settings in both directions
  • High efficiency motor, yet economical with durable reinforced clutch mechanism
  • Durable impact wrench with great power for the toughest jobs on heavy vehicles

Specifications:

  • Output drive: 1"
  • Working Torque Range (fwd): 370 - 1475 (500 - 2000 Nm)
  • Maximum Torque (reverse): 1920 ft.lbs (2600 Nm)
  • Free speed: 5200 rpm
  • Blows per minute: 500
  • Net weight: 25.55 lb (11.6 kg)
  • Power/weight ratio: 83.8 ft-lb/lb (250 Nm/kg)
  • Length: 20.4" (520mm)
  • Average air consumption: 10 cfm (4.8 l/s)
  • Actual air consumption: 40.7 cfm (19.2 l/s)
  • Air inlet thread size: 0.5 "
  • Min. hose size: 1/2" (13mm)
  • Noise level: 100 db(A)
  • Sound Power: 111 db(A)
  • Vibration α (ISO-28927-2): 7.8 m/sē
  • Vibration K (ISO-28927-2): 1.8 m/sē
  • Socket retainer: Dual
  • Clutch type: Pin less closed rocking dog
  • Bolt size: M32
  • Box dimensions: 35.9" x 6.5" x 11" (670mm x 245mm x 130mm)
