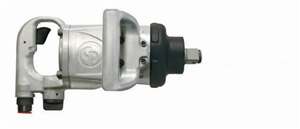

CP7778 Chicago Pneumatic 1" Impact Wrench

CP7778 Chicago Pneumatic 1" Impact Wrench

Price $905.55
Part #: 8941077780


Product Code: CPTCP7778
Qty:

Description Prop65

CP7778 1" Impact Wrench - This 1" heavy duty impact wrench has: a rocking dog clutch, high efficiency motor, 3-position power settings with directional control and angled down exhaust port.
Product Features
  • 1" heavy-duty impact wrench
  • Rocking dog clutch
  • High efficiency 6-vane motor
  • 3-position power settings with directional control
  • Angled down exhaust
  • High efficiency motor, yet economical
  • Ideal tool for tire work, general repair and maintenance

Specifications:

  • Output Drive: 1" Square
  • Working Torque Range (fwd): 300 - 1,330 ft-lb ( 400 - 1,800 Nm)
  • Maximum Torque (reverse): 1620 ft.lbs (2200 Nm)
  • Free speed: 5000 rpm
  • Net weight: 22.2 lb (10.1 kg)
  • Power/weight ratio: 65.3 ft-lb/lb (217.821782178218 Nm/kg)
  • Length: 13.4" (355mm)
  • Average air consumption: 8.7 cfm (4.1 l/s)
  • Actual air consumption: 35 cfm (16.5 l/s)
  • Air inlet thread size: 1/2 "
  • Min. hose size: 1/2" (13mm)
  • Noise level: 106 db(A)
  • Sound Power: 117 db(A)
  • Vibration (ISO-8662-7): 9.1 m/sē
  • Vibration α (ISO-28927-2): 11.2 m/sē
  • Vibration K (ISO-28927-2): 3.5 m/sē
  • Socket retainer: Dual
  • Clutch type: Pinless rocking dog
