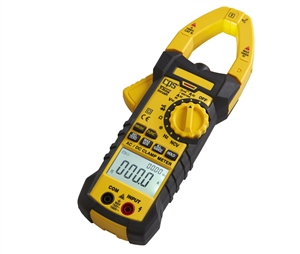

AC750 CPS True RMS Digital Clamp-On Amp Meter - CAT III 600V

AC750 CPS True RMS Digital Clamp-On Amp Meter - CAT III 600V

Alternative Views:
Price $137.13


Product Code: CPSAC750
Qty:

Description Prop65

AC750 Multi-Functional AC/DC Clamp Meter - The AC750 hosts an array of enhanced features such as the ability to capture True Inrush measurements, Non-Contact Voltage Detection and Data Logging your output readings to a PC (USB Connection cable included).
Product Features
  • Versatile for testing AC/DC voltage, AC/DC current, resistance and frequency
  • True RMS AC measurement
  • Max./Min. value measurement
  • Audible continuity and diode test
  • Non contact voltage detection
  • Integrated clamp light and LCD backlight
  • Auto zero key for DCA measurement
  • Auto/Manual range, auto power off
  • Secondary injection molded case, safety as per IEC1010 CAT.III 600V

AC750 Specifications:

AC Current
Measuring Range Resolution Accuracy
60A 0.01A ±(2.5% reading + 8 digits)
600A 0.1A
1000A 1A
- Maximum input current: 1000A AC
- Frequency range: 50 ~60Hz
DC Current
Measuring Range Resolution Accuracy
60A 0.01A ±(2.5% reading + 8 digits)
600A 0.1A
1000A 1A
- Maximum input current: 1000A DC

Surge Current
Measuring Range Resolution Accuracy
60A 0.01A < 60A for reference only
±(10% reading + 60 digits)
600A 0.1A
1000A 1A
- Time of integration: 100ms
- Measurement range: 10 ~ 1000A
- Frequency range: 40 ~ 400Hz
DC Voltage
Measuring Range Resolution Accuracy
600mV 0.1mV ±(0.5% reading + 5 digits)
6V 0.001V
60V 0.01V
600V 0.1V
1000V 1V ±(0.8% reading + 4 digits)
- Input impedance: 10MΩ
- Maximum input voltage: 750V AC (RMS) or 1000V DC
- 600mV measuring range can be inputted only by RANGE key.
NOTE: In the small voltage measuring range, the probe is not connected with the circuit to be tested,
and the meter may have fluctuating readings. This is normal and caused by the meters high sensitivity,
and does not affect actual measurement results.

AC Voltage
Measuring Range Resolution Accuracy
600mV 0.1mV ±(0.8% reading + 5 digits)
6V 0.001V
60V 0.01V
600V 0.1V
750V 1V ±(0.8% reading + 4 digits)
- Input impedance: 10MΩ
- Maximum input voltage: 750V AC (RMS) or 1000V DC
- Frequency range: 50 ~ 60Hz
- 600mV measuring range can be inputted only by RANGE key.
NOTE: In the small voltage measuring range, the probe is not connected with the circuit to be tested,
and the meter may have fluctuating readings. This is normal and caused by the meters high sensitivity,
and does not affect actual measurement results.

Frequency
Clamp head measuring frequency (through range A):
Measuring Range Resolution Accuracy
60.00Hz 0.01Hz ±(1.5% reading + 5 digits)
600.0Hz 0.1Hz
6.000kHz 1Hz
- Measuring scope: 10Hz ~ 1kHz
- The signal range: ≥ 20A AC (RMS) (input voltage will increase when the frequency to be measured increases)
Frequency
Through grade V:
Measuring Range Resolution Accuracy
60.00Hz 0.01Hz ±(1.5% reading + 5 digits)
600.0Hz 0.1Hz
6.000kHz 1Hz
60.00kHz 10Hz
- Measuring scope: 10Hz ~ 10kHz
- The signal range: ≥ 20A AC (RMS) (input voltage will increase when the frequency to be measured increases)
Frequency
Through Hz grade:
Measuring Range Resolution Accuracy
60.00Hz 0.01Hz ±(0.3% reading + 5 digits)
600.0Hz 0.1Hz
6.000kHz 1Hz
60.00kHz 0.01kHz
600.0kHz 0.1kHz
6.000MHZ 1kHz
60.00MHZ 0.01MHZ
- The input signal: VPP 3V square wave
- Overload protection: 250V DC or AC (RMS)
Duty Ratio
Measuring Range Resolution Accuracy
10 ~ 90% 0.1% ±3.0%

Resistance
Measuring Range Resolution Accuracy
600Ω 0.1Ω ±(0.8% reading + 3 digits)
6kΩ 0.001kΩ
60kΩ 0.01kΩ
600kΩ 0.1kΩ
6MΩ 0.001MΩ ±(1.2% reading + 3 digits)
60MΩ 0.1MΩ
- Overload protection: 250V DC or AC (RMS)
