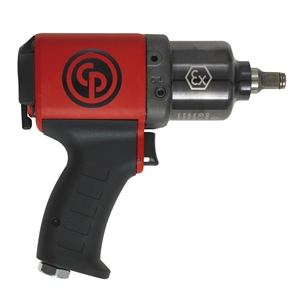

CP6748EX Chicago Pneumatic 1/2" Square Drive Ultimate Performance for Explosive Environments Impact Wrench

CP6748EX Chicago Pneumatic 1/2" Square Drive Ultimate Performance for Explosive Environments Impact Wrench

Part #: 6151590570


Product Code: CPTCP6748EX
Discontinued

Description Prop65

CP6748EX Chicago Pneumatic 1/2" Square Drive Ultimate Performance for Explosive Environments Impact Wrench - Ultimate Performance for Explosive Environment (ATEX). Superior Quality for intensive usage. Compact Design and light weight for operator comfort.
Product Features

Features:

  • Reliable double-dog clutch in oil bath & durable steel housing
  • Power Regulator 4 settings & One-hand reverse
  • Comfortable handling with rubber grip on composite housing

Benefits:

  • Ultimate Performance for Explosive Environment (ATEX)
  • Superior Quality for intensive usage
  • Compact Design and light weight for operator comfort

CP6748EX-P11R ATEX Specifications:

Part Number
6151590570
Model
CP6748EX-P11R ATEX
Handle Type
Pistol
Square Drive
1/2"
Working Torque Range (forward)
130 - 560 ft-lb (180 - 760 Nm)
Maximum Torque (reverse)
800 ft-lb (1085 Nm)
Free Speed
8400 rpm
Blows Per Minute
1200
Net Weight
5.4 lb (2.4 kg)
Power / Weight Ratio
148.1 ft-lb/lb (452.1 Nm/kg)
Length
7.9" (200 mm)
Side to Center
1.4" (36 mm)
Actual Air Consumption
30 cfm (14.2 l/s)
Air Inlet Thread Size
0.25"
Minimum Hose Size
3/8" (10 mm)
Noise Level
93 db(A)
Sound Power
104 db(A)
Vibration a (ISO-28927-2)
8.7 m/s²
Vibration K (ISO28927-2)
2.2 m/s²
Socket Retainer
Friction Ring
Clutch Type
Twin Hammer / Oil bath
Bolt Size
M20
