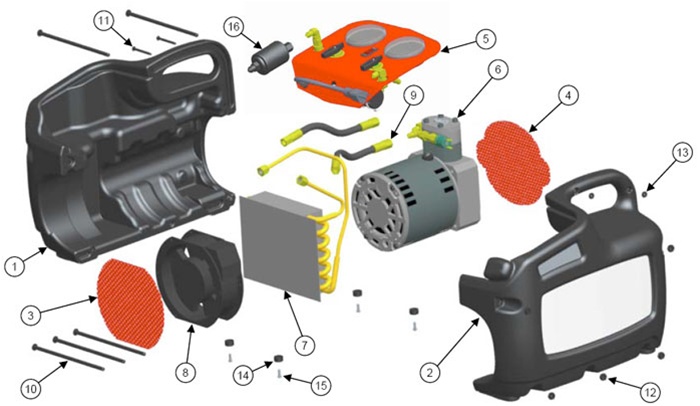

DIABLO RECOVERY UNIT REPLACEMENT PARTS
#
Qty
Part Number
Description
1
1
PPM011
RIGHT HAND PLASTIC PANEL
2
1
PPM012
LEFT HAND PLASTIC PANEL
3
1
MPM778
FRONT METAL SCREEN
4
1
MPM779
REAR METAL SCREEN
5
1
MPM779
MAIN PANEL ASSEMBLY
6
1
CPK090
COMPRESSOR WITH MOTOR
7
1
RCC019
CONDENSOR COIL
8
1
EMO136
FAN 35W, 115v
9
2
RHH009
HOSE 5MM (3/16) 500PSI
10
5

SCREW PHILIPS PAN HEAD 1/4-20 X 7.00
11
2

SCREW PHILIPS PAN HEAD 8-30 X 1.75
12
5

NUT HEX 1/4-20
13
2

NUT HEX #8-32
14
4

FEET
15
4

SCREWS #8 SELF DRILL / SELF TAPING
16
1
RFD032
DRIER
REFTEC Diablo Compressor Parts Detail
DIABLO COMPRESSOR REPLACEMENT PARTS
#
Qty
Part Number
Description
1
1
RSCP051
DIABLO STYLE BLOCK
2
1
RSCP02
COMPRESSOR CYLINDER
3
1
RSCP01
COMPRESSOR HEAD
4
1
RSCP019
LIP SEAL
5
1
RSC106
COVER PLATE
6
1
RSC108
COMPRESSOR COUNTER WEIGHT
7
1
CPK078
COMPRESSOR HEAD KIT
8
1
CPK077
COMPRESSOR PISTON KIT
9
2
CPK076
COMPRESSOR O-RING KIT
10
5
RSC024
SCREW SOCKET HEAD CAP ¼-20 X 1.00 LONG STEEL BLACK
11
4
RSC025
SCREW SOCKET HEAD CAP ¼-20 X 3.00 LONG STEEL BLACK
12
1
RSC250
SUCTION VALVE PLUG
13
1
RSP08
DISCHARGE PLUG / WITH O-RING
RefTec Diablo Electrical Parts
DIABLO ELECTRICAL REPLACEMENT PARTS
#
Qty
Part Number
Description
1
1
EAC777

115VAC PLUG / CORD

2
1
ERY001

120 VAC 50/60hz SPDT RELAY 12 FLA,60 LRA, 120VAC COIL

3
1
ERB015

15 AMP CIRCUIT BREAKER SWITCH

4
1
ECP189

COMPRESSOR START CAPACITOR

5
1
ERY120

120V START RELAY

6
1
XSW550

HIGH PRESSURE SWITCH 550PSIG 24-240VAC

7
1
EMO750

COMPRESSOR MOTOR .75HP, 110/115VAC, 50/60HZ, 1PH,1425/1725 RPM, 4.0/4.5 LA

8
1
EMO136

FAN

Sort By:
Page of 1
550 Reftec High Pressure Cut-Out Switch
550 Reftec High Pressure Cut-Out Switch
Price $30.00

XSW550 RefTec High Pressure Cut-Out Switch
CPK075 Reftec Complete Compressor Less Motor
CPK075 Reftec Complete Compressor Less Motor
Price $366.75

CPK075 RefTec Complete Compressor Less Motor
CPK076 Reftec Compressor O-Ring Kit
CPK076 Reftec Compressor O-Ring Kit
Price $15.00

CPK076 RefTec Compressor O-Ring Kit
CPK077 Reftec Compressor Piston Assy
CPK077 Reftec Compressor Piston Assy
Price $93.76

CPK077 RefTec Compressor Piston Assy
CPK078 Reftec Suction/Discharge Valve Kit
CPK078 Reftec Suction/Discharge Valve Kit
Price $22.50

CPK078 RefTec Suction/Discharge Valve Kit
CPK079 Reftec Compressor Rebuild Kit
CPK079 Reftec Compressor Rebuild Kit
Price $153.76

CPK079 RefTec Compressor Rebuild Kit
Diablo Reftec Oilless High-Speed Refrigerant Recovery Unit
Diablo Reftec Oilless High-Speed Refrigerant Recovery Unit
Price $599.95

RefTec International, Inc, manufacturer of custom HVAC commercial and residential recovery units announces their new high-speed residential refrigerant recovery unit – The Diablo. RefTec redesigned their residential refrigerant recovery unit, replacing their Microvac with the Diablo. The objective was to design and to build a completely new unit with overall performance characteristics that would exceed the closest competitors.
Published Recovery Rates
Direct Liquid - 7.71 lb/min Direct Vapor - 0.74 lb/min Push/Pull - 17.67 lb/min
EBR015 Reftec Circuit Breaker, 15 Amp
EBR015 Reftec Circuit Breaker, 15 Amp
Price $10.50

EBR015 RefTec Circuit Breaker, 15 Amp
ECA777 Reftec 115v Power Cord Pigtail
ECA777 Reftec 115v Power Cord Pigtail
Price $15.00

ECA777 RefTec 115v Power Cord Pigtail
ECP189 Reftec Start Capacitor
ECP189 Reftec Start Capacitor
Price $11.26

ECP189 RefTec Start Capacitor
EMO136 Reftec Cooling Fan
EMO136 Reftec Cooling Fan
Price $93.76

EMO136 RefTec Cooling Fan
EMO750 Reftec Compressor Motor 115v
EMO750 Reftec Compressor Motor 115v
Price $157.50

EMO750 RefTec Compressor Motor 115v
ERY001 Reftec SPDT Relay
ERY001 Reftec SPDT Relay
Price $9.00

ERY001 RefTec Spdt Relay
ERY120 Reftec Start Relay
ERY120 Reftec Start Relay
Price $24.76

ERY120 RefTec Start Relay
KIT006 Reftec Low Pressure Cut-Out Kit
KIT006 Reftec Low Pressure Cut-Out Kit
Price $74.95

KIT006 Reftec Low Pressure Cut-Out Kit
KIT007 Reftec Float cable Kit for Diablo 115 volt
KIT007 Reftec Float cable Kit for Diablo 115 volt
Price $74.95

KIT007 Reftec Float cable Kit for Diablo 115 volt
MVH777 Reftec Inlet / Outlet Manifold Assembly (Less Gauges)
MVH777 Reftec Inlet / Outlet Manifold Assembly (Less Gauges)
Price $130.00

MVH777 Reftec Inlet / Outlet Manifold Assembly (Less Gauges)
PPM011 Reftec Left Side Plastic
PPM011 Reftec Left Side Plastic
Price $27.00

PPM011 RefTec Left Side Plastic
PPM012 Reftec Right Side Plastic
PPM012 Reftec Right Side Plastic
Price $27.00

PPM012 RefTec Right Side Plastic
RCC777 Reftec Condenser Coil
RCC777 Reftec Condenser Coil
Price $63.76

RCC777 RefTec Condenser Coil
RCP090 Reftec Complete Compressor 115 Volt
RCP090 Reftec Complete Compressor 115 Volt
Price $437.25

RCP090 Reftec Complete Compressor 115 Volt
RFD032 Reftec External Filter Drier
RFD032 Reftec External Filter Drier
Price $14.95

RFD032 RefTec External Filter Drier
RGA502 Reftec Low Pressure PSI Gauge (Bottom Tap)
RGA502 Reftec Low Pressure PSI Gauge (Bottom Tap)
Price $33.76

RGA502 RefTec LOW PRESSURE PSI GAUGE (Bottom Tap)
RGA802 Reftec High Pressure PSI Gauge (Bottom Tap)
RGA802 Reftec High Pressure PSI Gauge (Bottom Tap)
Price $33.76

RGA802 RefTec HIGH PRESSURE PSI GAUGE (Bottom Tap)
RHH009 Reftec Internal Refrigerant Hose
RHH009 Reftec Internal Refrigerant Hose
Price $37.50

RHH009 RefTec Internal Refrigerant Hose
RSC019 Reftec Compressor Shaft Seal
RSC019 Reftec Compressor Shaft Seal
Price $14.95

RSC019 RefTec Compressor Shaft Seal
