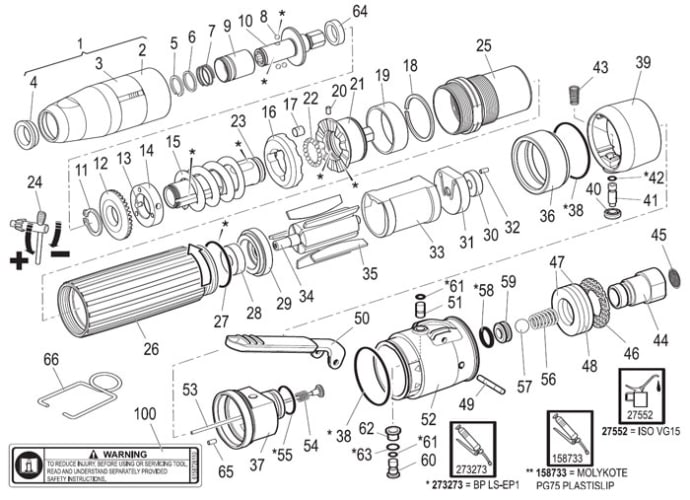

Chicago Pneumatic CP2011 Screwdriver Repair Parts
Index
No. |
Part No. |
Description |
No.
Req'd |
1
|
2050480833
|
Clutch module case complete
|
1
|
2
|
2050480053
|
Clutch case
|
1
|
3
|
161253
|
Clip, spring
|
1
|
4
|
465873
|
Bearing
|
1
|
5
|
443773
|
Circlip
|
1
|
6
|
2050481893
|
Ring
|
1
|
7
|
301013
|
Spring
|
1
|
8
|
280313
|
Ball
|
3
|
9
|
2050481863
|
Sleeve
|
1
|
10
|
465633
|
Output spindle
|
1
|
11
|
218453
|
Circlip
|
1
|
12
|
465663
|
Ring, adjusting
|
1
|
13
|
280313
|
Ball
|
4
|
14
|
465673
|
Ring, locking
|
1
|
15
|
465783
|
Spring, clutch
|
1
|
16
|
465803
|
Cam follower
|
1
|
17
|
465743
|
Roller
|
3
|
18
|
465793
|
Circlip
|
1
|
19
|
2050482073
|
Sleeve, retaining
|
1
|
20
|
2050482093
|
Roller
|
1
|
21
|
465813
|
Cam, clutch
|
1
|
22
|
280313
|
Ball
|
18
|
23
|
465643
|
Spindle
|
1
|
24
|
29932
|
Clutch key
|
1
|
25
|
2050481283
|
Gearbox
|
1
|
26
|
2050480203
|
Motor case
|
1
|
27
|
369163
|
O-Ring
|
1
|
28
|
465983
|
Bearing, front
|
1
|
29
|
2050482113
|
Housing, front bearing
|
1
|
30
|
279863
|
Bearing, rear
|
1
|
31
|
2050482123
|
Housing, rear bearing
|
1
|
32
|
301043
|
Pin
|
1
|
33
|
465963
|
Cylinder
|
1
|
34
|
465953
|
Rotor, radial
|
1
|
35
|
465973
|
Blade, radial standard
|
5
|
36
|
471233
|
Housing, valve
|
1
|
37
|
466293
|
Block valve
|
1
|
38
|
200763
|
O-Ring |
2
|
39
|
2050482383
|
Collar button
|
1
|
40
|
242993
|
Button, black
|
1
|
41
|
466363
|
Plunger, button
|
1
|
42
|
251733
|
O-Ring |
1
|
43
|
466463
|
Spring
|
1
|
44
|
2050482403
|
Bolt, complete, airfeed BSP
|
1
|
45
|
252183
|
Filter
|
1
|
46
|
2050482193
|
Baffle, exhaust
|
1
|
47
|
466823
|
Silencer
|
2
|
48
|
466793
|
Silencer
|
1
|
49
|
466443
|
Pin, grooved
|
1
|
50
|
2050480073
|
Lever, standard
|
1
|
51
|
2050482223
|
Plunger, outer
|
1
|
52
|
2050480213
|
Housing, exhaust
|
1
|
53
|
466743
|
Valve, complete
|
1
|
54
|
466753
|
Spring
|
1
|
55
|
268513
|
O-Ring |
1
|
56
|
466713
|
Spring
|
1
|
57
|
466703
|
Ball
|
1
|
58
|
202323
|
O-Ring |
1
|
59
|
328893
|
Valve seat
|
1
|
60
|
2050482213
|
Plunger, inner
|
1
|
61
|
280163
|
O-Ring |
2
|
62
|
2050482203
|
Bush
|
1
|
63
|
500953
|
O-Ring |
1
|
64
|
2050482103
|
Spacer
|
1
|
65
|
2050482093
|
Roller
|
1
|
66
|
2050482253
|
Suspension bail
|
1
|
100
|
6158726110
|
Warning label
|
1
|
|
|
