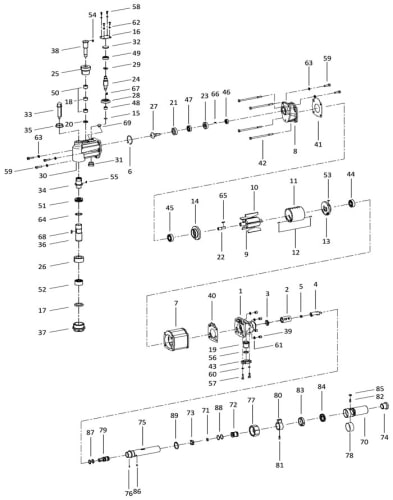

Chicago Pneumatic CP1720R22 Corner Drill Repair Parts



Index
No. 		Part No. Description No.
Req'd
1
 5412102926
 Housing cover
 1
7
 5412102928
 Housing
 1
8
 5412102930
 Housing lower cover
 1
9
 5412051485
 Rotor
 1
10
 5412051487
 Rotor blade
 5
11
 5412051488
 Cylinder
 1
17
 5412051495
 Felt ring
 1
30
 5412102931
 No. 1 gear case
 1
31
 5412051508
 Gear case cover
 1
37
 5412051515
 Socket nut
 1
69
 5412055400
 Plug
 1
70
 5412054710
 Throttle vlave handle
 1
74
 5412054715
 Throttle vlave cover (NPT)
 1
75
 5412051476
 Throttle vlave stem
 1
A
 8940170544
 Reverse Kit
 -
2
 -
 Reverse valve bushing
 1
3
 -
 Reverse valve washer
 1
4
 -
 Reverse valve 1
5
 -
 Reverse valve sheet
 1
79
 -
 Reverse valve rod
 1
80
 -
 Reverse valve lever
 1
81
 -
 Small screw
 1
86
 -
 Needle roller
 1
87
 -
 O-Ring
 2
B
 8940170545
 Upper Plate Kit
 -
12
 -
 Spring pin
 1
13
 -
 Cylinder upper plate
 1
44
 -
 Ball bearing
 1
53
 -
 Pin
 1
C
 8940170546
 Lower Plate Kit
 -
12
 -
 Spring pin
 1
14
 -
 Cylinder lower plate
 1
45
 -
 Ball bearing
 1
D
 8940170547
 Bearing Cover Kit
 -
15
 -
 Bearing cover
 1
16
 -
 Bearing cover 1
58
 -
 Screw
 4
62
 -
 Spring washer
 4
E
 8940170548
 No. 1 Pinion Gear Kit
 -
22
 -
 No. 1 pinion
 1
23
 -
 No. 1 gear
 1
F
 8940170549
 No. 2 Pinion Gear Kit
 -
24
 -
 No. 2 pinion
 1
25
 -
 No. 2 gear
 1
26
 -
 No. 3 gear
 1
G
 8940170550
 Bevel Kit
 -
27
 -
 Bevel pinion
 1
28
 -
 Bevel gear
 1
H
 8940170551
 Exhaust Kit
 -
19
 -
 Exhaust cover
 1
43
 -
 Exhaust cover holder
 1
56
 -
 O-Ring
 1
57
 -
 Cap screw
 2
60
 -
 Spring washer
 2
I
 8940170552
 Packing Kit
 -
40
 -
 Packing (A)
 1
41
 -
 Packing (B)
 1
J
 8940170553
 Bevel No. 1 Bearing Kit
 -
21
 -
 Bearing case
 1
46
 -
 Ball bearing
 1
47
 -
 Ball bearing 1
K
 8940170554
 Bevel No. 2 Bearing Kit
 -
29
 -
 Bevel gear washer
 1
32
 -
 Bearing holder
 1
48
 -
 Needle bearing
 1
49
 -
 Ball bearing 1
L
 8940170555
 Bevel No. 3 Service Kit
 -
18
 -
 Bearing spacer
 1
20
 -
 Washer
 1
50
 -
 Needle bearing
 2
51
 -
 Thrust bearing
 1
52
 -
 Needle bearing
 1
M
 8940170556
 Screw Kit
 -
39
 -
 Hexagon nut
 4
42
 -
 Half-cut head bolt
 4
57
 -
 Cap screw
 2
58
 -
 Screw
 4
59
 -
 Cap screw
 5
60
 -
 Spring washer
 2
61
 -
 Spring washer 4
62
 -
 Spring washer 4
63
 -
 Spring washer 5
N
 8940170557
 Throttle Valve Kit
 -
71
 -
 Throttle valve
 1
72
 -
 Throttle valve rod
 1
73
 -
 Throttle valve sheet
 1
77
 -
 Throttle valve stem nut
 1
78
 -
 Throttle valve handle band
 1
82
 -
 Small screw (B)
 1
83
 -
 Throttle handle step
 1
84
 -
 Throttle valve handle spring
 1
85
 -
 Guide roller
 1
88
 -
 O-Ring
 2
89
 -
 Snap ring
 1
O
 8940170558
 Mt. Socket Kit
 -
36
 -
 Mt. socket
 1
68
 -
 Key
 1
P
 8940170559
 No. 2 Gear Spindle Kit
 -
38
 -
 No. 2 gear spindle
 1
54
 -
 Spring pin
 1
Q
 8940170560
 Feed Kit
 -
33
 -
 Feed screw
 1
34
 -
 Feed sleeve
 1
35
 -
 Feed sleeve nut
 1
55
 -
 Spring pin
 1
R
 8940170561
 Tune-up Kit
(incl 10, 40, 41, 56, 87, 88)
 -
S
 8940170562
 Small Parts Kit
(incl 6, 53, 54, 55, 64, 65, 66, 67, 68, 76, 81, 86, 89)
 -
Sort By:
5412051485 Chicago Pneumatic Rotor Cp1820 5412051485 Chicago Pneumatic Rotor Cp1820

5412051485 Chicago Pneumatic Rotor Cp1820

Discontinued
5412051487 Chicago Pneumatic Rotor Blade Cp1820 5412051487 Chicago Pneumatic Rotor Blade Cp1820

5412051487 Chicago Pneumatic Rotor Blade Cp1820

Discontinued
5412051488 Chicago Pneumatic Cylinder Cp1820 5412051488 Chicago Pneumatic Cylinder Cp1820

5412051488 Chicago Pneumatic Cylinder Cp1820

Discontinued
5412054710 Chicago Pneumatic Throttle Valve Handle Cp1820 5412054710 Chicago Pneumatic Throttle Valve Handle Cp1820

5412054710 Chicago Pneumatic Throttle Valve Handle Cp1820

Discontinued
5412054715 Chicago Pneumatic Throttle Valve Cover Cp1820 5412054715 Chicago Pneumatic Throttle Valve Cover Cp1820

5412054715 Chicago Pneumatic Throttle Valve Cover Cp1820

Discontinued
5412055400 Chicago Pneumatic Pulg Cp1720-R50 5412055400 Chicago Pneumatic Pulg Cp1720-R50

5412055400 Chicago Pneumatic Pulg Cp1720-R50

Discontinued
5412102926 Chicago Pneumatic Housing Cover Cp1720-R22 5412102926 Chicago Pneumatic Housing Cover Cp1720-R22

5412102926 Chicago Pneumatic Housing Cover Cp1720-R22

Discontinued
5412102928 Chicago Pneumatic Housing Cp1720-R22 5412102928 Chicago Pneumatic Housing Cp1720-R22

5412102928 Chicago Pneumatic Housing Cp1720-R22

Discontinued
5412102930 Chicago Pneumatic Housing Lower Cover Cp1720-R22 5412102930 Chicago Pneumatic Housing Lower Cover Cp1720-R22

5412102930 Chicago Pneumatic Housing Lower Cover Cp1720-R22

Discontinued
5412102931 Chicago Pneumatic Gear Case Cp1720-R22 5412102931 Chicago Pneumatic Gear Case Cp1720-R22

5412102931 Chicago Pneumatic Gear Case Cp1720-R22

Discontinued
8940170544 Chicago Pneumatic Reverse Kit Cp1720-R22 8940170544 Chicago Pneumatic Reverse Kit Cp1720-R22

8940170544 Chicago Pneumatic Reverse Kit Cp1720-R22

Price $255.13
8940170545 Chicago Pneumatic Upper Plate Kit Cp1720-R22 8940170545 Chicago Pneumatic Upper Plate Kit Cp1720-R22

8940170545 Chicago Pneumatic Upper Plate Kit Cp1720-R22

Price $151.44
8940170546 Chicago Pneumatic Lower Plate Kit Cp1720-R22 8940170546 Chicago Pneumatic Lower Plate Kit Cp1720-R22

8940170546 Chicago Pneumatic Lower Plate Kit Cp1720-R22

Price $126.74
8940170547 Chicago Pneumatic Bearing Cover Kit Cp1720-R22 8940170547 Chicago Pneumatic Bearing Cover Kit Cp1720-R22

8940170547 Chicago Pneumatic Bearing Cover Kit Cp1720-R22

Price $47.70
8940170548 Chicago Pneumatic Pinion Geear Kit Cp1720-R22 8940170548 Chicago Pneumatic Pinion Geear Kit Cp1720-R22

8940170548 Chicago Pneumatic Pinion Geear Kit Cp1720-R22

Price $138.27
8940170549 Chicago Pneumatic Pinion Gear Kit Cp1720-2R2 8940170549 Chicago Pneumatic Pinion Gear Kit Cp1720-2R2

8940170549 Chicago Pneumatic Pinion Gear Kit Cp1720-2R2

Price $371.43
8940170550 Chicago Pneumatic Bevel Kit Cp1720-R22 8940170550 Chicago Pneumatic Bevel Kit Cp1720-R22

8940170550 Chicago Pneumatic Bevel Kit Cp1720-R22

Price $264.98
8940170551 Chicago Pneumatic Exhaust Kit Cp1720-R22 8940170551 Chicago Pneumatic Exhaust Kit Cp1720-R22

8940170551 Chicago Pneumatic Exhaust Kit Cp1720-R22

Price $146.53
8940170552 Chicago Pneumatic Packing Kit Cp1720-R22 8940170552 Chicago Pneumatic Packing Kit Cp1720-R22

8940170552 Chicago Pneumatic Packing Kit Cp1720-R22

Price $32.90
8940170553 Chicago Pneumatic Bearing Kit Cp1720-R22 8940170553 Chicago Pneumatic Bearing Kit Cp1720-R22

8940170553 Chicago Pneumatic Bearing Kit Cp1720-R22

Price $72.41
8940170554 Chicago Pneumatic Service Kit Cp1720-R22 8940170554 Chicago Pneumatic Service Kit Cp1720-R22

8940170554 Chicago Pneumatic Service Kit Cp1720-R22

Price $83.98
8940170555 Chicago Pneumatic Service Kit Cp1720-R22 8940170555 Chicago Pneumatic Service Kit Cp1720-R22

8940170555 Chicago Pneumatic Service Kit Cp1720-R22

Price $164.61
8940170556 Chicago Pneumatic Screw Kit Cp1720-R22 8940170556 Chicago Pneumatic Screw Kit Cp1720-R22

8940170556 Chicago Pneumatic Screw Kit Cp1720-R22

Price $128.39
8940170557 Chicago Pneumatic Throttle Valve Kit Cp1720-R22 8940170557 Chicago Pneumatic Throttle Valve Kit Cp1720-R22

8940170557 Chicago Pneumatic Throttle Valve Kit Cp1720-R22

Price $241.94
8940170558 Chicago Pneumatic Mt.Socket Kit Cp1720-R22 8940170558 Chicago Pneumatic Mt.Socket Kit Cp1720-R22

8940170558 Chicago Pneumatic Mt.Socket Kit Cp1720-R22

Price $141.59
8940170559 Chicago Pneumatic Gear Spindle Kit Cp1720-R22 8940170559 Chicago Pneumatic Gear Spindle Kit Cp1720-R22

8940170559 Chicago Pneumatic Gear Spindle Kit Cp1720-R22

Price $83.98
8940170560 Chicago Pneumatic Feed Kit Cp1720-R22 8940170560 Chicago Pneumatic Feed Kit Cp1720-R22

8940170560 Chicago Pneumatic Feed Kit Cp1720-R22

Price $176.14
8940170562 Chicago Pneumatic Small Parts Kit Cp1720-R22 8940170562 Chicago Pneumatic Small Parts Kit Cp1720-R22

8940170562 Chicago Pneumatic Small Parts Kit Cp1720-R22

Price $123.41
CP1720R22 Chicago Pneumatic 7/8" (22mm) 2.2Hp Reversible Corner Drill CP1720R22 Chicago Pneumatic 7/8" (22mm) 2.2Hp Reversible Corner Drill

CP1720R22 Chicago Pneumatic 7/8" (22mm) 2.2Hp Reversible Corner Drill - Super Industrial drills designed for intensive duty and high durability with precision. Ideal for drilling, reaming & tapping of mild steel, cast iron.

Price $2,827.14
