You are here: Home > Chicago Pneumatic Air Hammers Chisels Scalers & Files > Chicago Pneumatic CP0456-LASAR Weld Flux Chipper Repair Parts

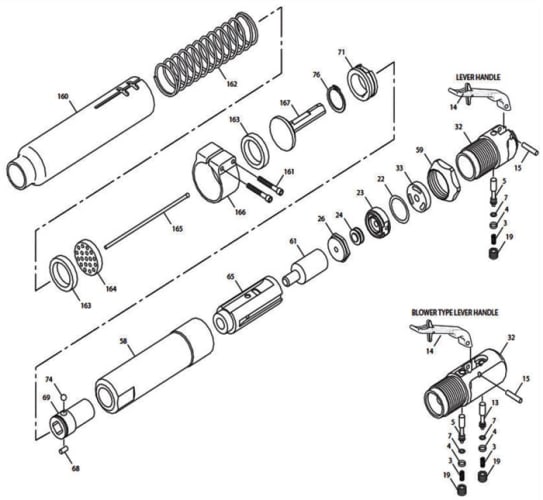

Chicago Pneumatic CP0456-LASAR Weld Flux Chipper Repair Parts



Index
No.
Part No. Description No.
Req'd
3
P091585
Valve spring
2
4
P091584
Cap O-Ring
2
5
P091582
Throttle valve
1
7
P083076
O-Ring
2
13
P091583
Blower valve
1
14
475353
Lever assembly
1
-
P084042
Throttle lever (blower type)
1
15
P084043
Pin - lever
1
19
P009876
Plug - valve
2
22
P084037
Shim (0.005")
AS REQ'D
-
P084038
Shim (0.010") AS REQ'D
23
P043309
Lid
1
24
P043310
Valve - cycling (metallic)
1
-
P119294
Valve - cycling (rubber) (not shown)
1
26
P084034
Case - valve cycling
1
32
P109273
Head - cylinder
1
-
P113310
Head - cylinder (blower type)
1
33
P125736
Spacer - head
1
58
P113312
Cylinder (incl index no 65)
1
59
P109271
Locknut - cylinder
1
61
P084033
Piston
1
65
P041557
Sleeve - cylinder
1
68
P088815
Lock - rubber
1
69
P050933
Sleeve - chisel (1/2" Q. O.)
1
71
P088813
Ring - chisel lock
1
74
P070416
Ball - steel (5/16")
1
76
P050934
Ring - retaining (external)(#5160-98)
1
160
P117630
Housing (round nose)
1
-
P117631
Housing (rectangular nose)
1
161
P117633
Screw - socket head (#10-32 x 1-1/4")
2
162
P100150
Spring - compression
1
163
P100964
Buffer - holder
2
164
P100145
Holder - needle
1
165
P100146
Set - needle (7") (consists of 19 steel needles)
1
-
P106454
Set - needle (7") (consists of 19 stainless steel needles) 1
-
P106455
Set - needle (7") (consists of 19 beryilium copper needles) 1
166
P117632
Clamp - housing
1
167
P100144
Anvil
1
Sort By:
CP0456-LESAR Chicago Pneumatic Industrial Weld Flux Chipper Shank Qtr. Oct. WF 1/2" Type 2 CP0456-LESAR Chicago Pneumatic Industrial Weld Flux Chipper Shank Qtr. Oct. WF 1/2" Type 2

CP0456-LESAR Chicago Pneumatic Industrial Weld Flux Chipper Shank Qtr. Oct. WF 1/2" Type 2 The CP0456-LESAR Chicago Pneumatic Weld Flux Chipper is designs to be a heavy industrial needle scaler with a quick change collar retainer. This needle scaler features a very robust construction with steel housing and a weld flux chisel.

Price $850.27
P009876 Chicago Pneumatic Plug Throttle Valve P009876 Chicago Pneumatic Plug Throttle Valve

P009876 Chicago Pneumatic Plug Throttle Valve

Price $15.90
P041557 Chicago Pneumatic Sleeve Cylinder P041557 Chicago Pneumatic Sleeve Cylinder

P041557 Chicago Pneumatic Sleeve Cylinder

Price $274.94
P043309 Chicago Pneumatic Case Valve P043309 Chicago Pneumatic Case Valve

P043309 Chicago Pneumatic Case Valve

Price $104.01
P043310 Chicago Pneumatic Valve Pulley P043310 Chicago Pneumatic Valve Pulley

P043310 Chicago Pneumatic Valve Pulley

Price $55.21
P050933 Chicago Pneumatic Sleeve Quick Release P050933 Chicago Pneumatic Sleeve Quick Release

P050933 Chicago Pneumatic Sleeve Quick Release

Price $333.79
P050934 Chicago Pneumatic Ring Retainer P050934 Chicago Pneumatic Ring Retainer

P050934 Chicago Pneumatic Ring Retainer

Price $3.99
P070416 Chicago Pneumatic Ball 5/16" Dia P070416 Chicago Pneumatic Ball 5/16" Dia

P070416 Chicago Pneumatic Ball 5/16" Dia

Price $3.99
P083076 Chicago Pneumatic O-Ring P083076 Chicago Pneumatic O-Ring

P083076 Chicago Pneumatic O-Ring

Price $8.22
P084033 Chicago Pneumatic Piston P084033 Chicago Pneumatic Piston

P084033 Chicago Pneumatic Piston

Price $147.00
P084034 Chicago Pneumatic Case Lower Valve P084034 Chicago Pneumatic Case Lower Valve

P084034 Chicago Pneumatic Case Lower Valve

Price $46.77
P084037 Chicago Pneumatic Shim Upper Valve 0.005" P084037 Chicago Pneumatic Shim Upper Valve 0.005"

P084037 Chicago Pneumatic Shim Upper Valve 0.005"

Price $4.86
P084038 Chicago Pneumatic Shim Upper Valve 0.010" P084038 Chicago Pneumatic Shim Upper Valve 0.010"

P084038 Chicago Pneumatic Shim Upper Valve 0.010"

Price $4.66
P084043 Chicago Pneumatic Pin Throttle Lever P084043 Chicago Pneumatic Pin Throttle Lever

P084043 Chicago Pneumatic Pin Throttle Lever

Price $7.30
P088813 Chicago Pneumatic Ring Quick Release P088813 Chicago Pneumatic Ring Quick Release

P088813 Chicago Pneumatic Ring Quick Release

Price $139.36
P088815 Chicago Pneumatic Ring Lock P088815 Chicago Pneumatic Ring Lock

P088815 Chicago Pneumatic Ring Lock

Price $15.43
P091582 Chicago Pneumatic Valve Throttle P091582 Chicago Pneumatic Valve Throttle

P091582 Chicago Pneumatic Valve Throttle

Price $45.60
P091584 Chicago Pneumatic Cap Throttle P091584 Chicago Pneumatic Cap Throttle

P091584 Chicago Pneumatic Cap Throttle

Price $19.71
P100144 Chicago Pneumatic Anvil P100144 Chicago Pneumatic Anvil

P100144 Chicago Pneumatic Anvil

Price $550.00
P100145 Chicago Pneumatic Holder Needles P100145 Chicago Pneumatic Holder Needles

P100145 Chicago Pneumatic Holder Needles

Price $65.01
P100146 Chicago Pneumatic Needle Flat 3mm X 178 Steel (Set 19) P100146 Chicago Pneumatic Needle Flat 3mm X 178 Steel (Set 19)

P100146 Chicago Pneumatic Needle Flat 3mm X 178 Steel (Set 19)

Price $24.09
P100150 Chicago Pneumatic Spring Compression P100150 Chicago Pneumatic Spring Compression

P100150 Chicago Pneumatic Spring Compression

Price $18.21
P100964 Chicago Pneumatic Ring Buffer P100964 Chicago Pneumatic Ring Buffer

P100964 Chicago Pneumatic Ring Buffer

Price $78.70
P106454 Chicago Pneumatic Stainless Steel Needle Set 19 Pc. (3mm x 178mm) P106454 Chicago Pneumatic Stainless Steel Needle Set 19 Pc. (3mm x 178mm)

P106454 Chicago Pneumatic Stainless Steel Needle Set(3mm x 178mm)

Price $143.20
P109271 Chicago Pneumatic Locknut Cylinder P109271 Chicago Pneumatic Locknut Cylinder

P109271 Chicago Pneumatic Locknut Cylinder

Price $45.90
P109273 Chicago Pneumatic Head Cylinder P109273 Chicago Pneumatic Head Cylinder

P109273 Chicago Pneumatic Head Cylinder

Price $284.50
P117630 Chicago Pneumatic Housing Rd. Nose P117630 Chicago Pneumatic Housing Rd. Nose

P117630 Chicago Pneumatic Housing Rd. Nose

Price $335.76
P117632 Chicago Pneumatic Clamp Housing P117632 Chicago Pneumatic Clamp Housing

P117632 Chicago Pneumatic Clamp Housing

Price $214.11
P117633 Chicago Pneumatic Screw Nylok P117633 Chicago Pneumatic Screw Nylok

P117633 Chicago Pneumatic Screw Nylok

Price $16.05


Chicago Pneumatic CP0456-LASAR Weld Flux Chipper Repair Parts
