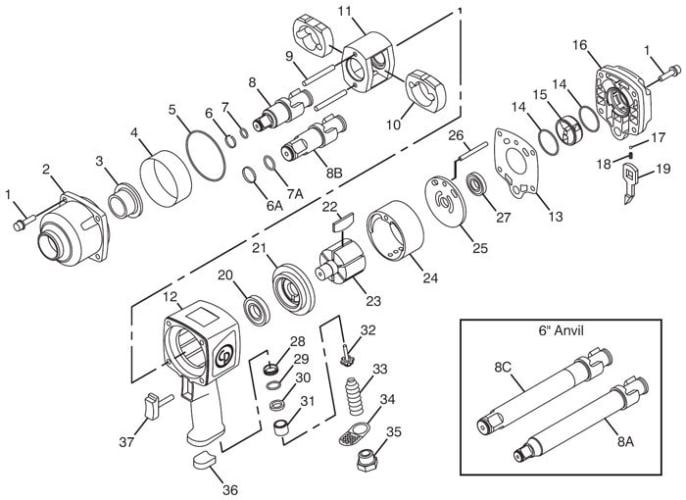

CP7763 3/4" "Old Style" Drive Impact Wrench Repair Parts
Index
No.
|
Part No.
|
Description
|
No.
Req'd
|
|
1
|
8940162843
|
Screw
|
8
|
|
2
|
8940162946
|
Clutch
Housing Assembly
(Incl Index Nos: 2 & 3)
|
1
|
|
4
|
8940162846
|
Steel
Ring
|
1
|
|
5
|
8940162847
|
Gasket
- Clutch Housing
|
1
|
|
6
|
8940162848
|
Ring
Friction (3/4" Sq.)
|
1
|
|
6A
|
8940162904
|
O-Ring
(1" Sq.)
|
1
|
|
7
|
8940162849
|
O-Ring
(3/4" Sq.)
|
1
|
|
7A
|
8940162905
|
Ring
- Friction (1" Sq.)
|
1
|
|
8
|
8940162947
|
Anvil
Assembly (3/4" Sq. Dr.)
(Incl Index Nos: 6, 7 & 8)
|
1
|
|
8A
|
8940162948
|
Anvil
Assembly (3/4" Sq. Dr. 6" Extension)
(Incl Index Nos: 6, 7 & 8A)
|
1
|
|
8B
|
8940162949
|
Anvil
Assembly (1" Sq. Dr.)
(Incl Index Nos: 6A, 7A & 8B)
|
1
|
|
8C
|
8940162950
|
Anvil
Assembly (1" Sq. Dr. 6" Extension)
(Incl Index Nos: 6A, 7A & 8C)
|
1
|
|
9
|
8940162854
|
Pin
|
2
|
|
10
|
8940162855
|
Dog
|
2
|
|
11
|
8940162856
|
Cage
|
1
|
|
12
|
8940162857
|
Housing
- Motor
|
1
|
|
13
|
8940162858
|
Gasket
- Rear Cover
|
1
|
|
14
|
8940162859
|
O-Ring
|
2
|
|
15
|
8940162860
|
Reverse
Valve
|
1
|
|
16
|
8940162861
|
Rear
Cover
|
1
|
|
17
|
8940162862
|
Steel
Ball
|
1
|
|
18
|
8940162863
|
Spring
|
1
|
|
19
|
8940162864
|
Lever
- Reverse Valve
|
1
|
|
20
|
8940162865
|
Bearing
|
1
|
|
21
|
8940162866
|
Plate
- Front End
|
1
|
|
22
|
8940162867
|
Rotor
Blades
|
6
|
|
23
|
8940162868
|
Rotor
|
1
|
|
24
|
8940162869
|
Liner
|
1
|
|
25
|
8940162870
|
Plate
- Rear End
|
1
|
|
26
|
8940162871
|
Pin
|
1
|
|
27
|
8940162872
|
Bearing
|
1
|
|
28
|
8940162873
|
Insert
Bushing
|
1
|
|
29
|
8940162874
|
O-Ring
|
1
|
|
30
|
8940162875
|
Seal
|
1
|
|
31
|
8940162876
|
Bushing
|
1
|
|
32
|
8940162877
|
Valve
- Throttle
|
1
|
|
33
|
8940162878
|
Spring
- Throttle Valve
|
1
|
|
34
|
8940162879
|
Exhaust
Deflector
|
1
|
|
35
|
8940162880
|
Inlet
Bushing
|
1
|
|
36
|
8940162881
|
Muffler
|
1
|
|
37
|
8940162882
|
Lever
- Throttle
|
1
|
|
Tune-Up Kit
|
8940162925
|
CP7763
& CP7763-6
Incl Index Nos: 5, 6, 7, 13, 14, 17, 18, 22, 29 & 30
|
|
Repair Kit
|
8940162927
|
CP7763
Incl Index Nos: 5, 6, 7, 8, 9, 10, 13, 14, 17, 18, 22, 29 & 30
|
|
Repair Kit
|
8940162928
|
CP7763-6
Incl Index Nos: 5, 6, 7, 8A, 9, 10, 13, 14, 17, 18, 22, 29 & 30
|
|
Tune-Up Kit
|
8940162926
|
CP7773
& CP7773-6
Incl Index Nos: 5, 6A, 7A, 13, 14, 17, 18, 22, 29 & 30
|
|
Repair Kit
|
8940162929
|
CP7773
Incl Index Nos: 5, 6A, 7A, 8B, 9, 10, 13, 14, 17, 18, 22, 29 &
30
|
|
Repair Kit
|
8940162930
|
CP7773-6
Incl Index Nos: 5, 6A, 7A, 8C, 9, 10, 13, 14, 17, 18, 22, 29 &
30
|
|
Protective Boot
|
8940163076
|
-
|
|
|
