You are here: Home > Plasma Cutter Parts > 118-003 YA2001 Snap-On 40 amp plasma cutter

118-003 YA2001 Snap-On 40 amp plasma cutter

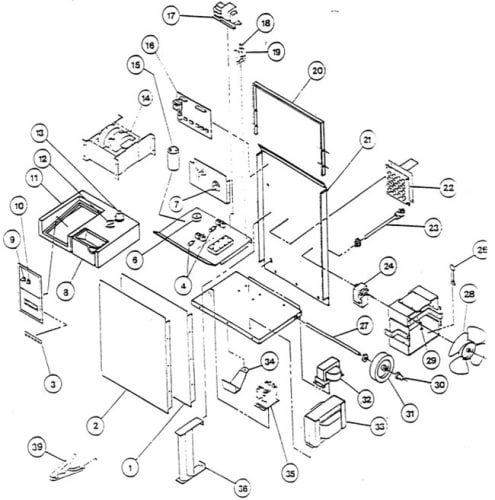

118-003 Replacement Parts List
Item No.
Part No.
Description
1
410-526-010
Front Plate
2
410-490-020
False Front Plate
3
860-894-000
Diagnostic Panel Assembly
4
213-022-000
Single Sided Spark Tip

213-023-000
Dual Sided Spark Tip
6
213-029-666
Ceramic Capacitor
7
210-220-000
Coupling Coil
8
312-070-000
Access Panel
9
246-213-000
Power Switch, DPST
10
246-214-000
Run / Setup Switch, SPDT
11
312-072-000
Molded Nose
12
251-003-000
Pressure Gauge
13
254-003-666
Air Regulator
14
860-897-888
Transformer
15
213-028-000
Capacitor, 800 mf, 350 Volt DC
16
860-962-666
Main Circuit Board
17
860-855-888
High Voltage Transformer
18
252-003-000
Air Pressure Switch
19
246-166-666
Solenoid
20
412-256-010
Handle
21
410-525-010
Back Panel
22
860-850-000
Capacitor Bank Assembly
23
218-089-000
Power Cord
24
216-085-366
Fan Motor
26
860-848-000
Transient Protector
27
413-022-100
Axle
28
316-010-000
Fan Blade
29
860-849-000
Diode Assembly
30
068-024-666
Hubs (2)
31
413-030-000
Wheel
32
860-852-888
Control Transformer 230 Volt AC to 120 & 24 Volt AC
33
860-845-888
Reactor Coil
34
413-023-105
Foot
35
216-165-000
Contactor
36
215-028-000
8 Ohn, 420 Watt Resistor
37
410-523-010
Right Side Panel
38
410-524-010
Left Side Panel
39
238-228-000
Ground Cable Assembly
40
860-853-666
5 Ohm, 50 Watt Resistor
41
860-993-666
500 Ohm, 100 Watt Resistor
42
860-992-000
25' Torch Assembly
43
44040
(334-266, 020104)
Standard Nozzle Cap
44
44010
(334-265, 020115)
Standard Nozzle
45
44030
(334-264, 020101)
Swirl Ring
46
44020
(334-263, 020103)
Electrode
47
44050
(512-087, 044016)
O-Rings
48
44140
(334-271, 020200)
Tapered Nozzle Cap
49
44110
(334-270, 020197)
Tapered Nozzle
Sort By:
Page of 1
098-142-000 Synthetic Lubricant 1/4oz 4424
098-142-000 Synthetic Lubricant 1/4oz 4424
Price $19.18

Synthetic Lubricant for plasma torch O-rings
131-315-666 Century Torch Head Kit 40 Amp / Includes-Head Trigger Handle
131-315-666 Century Torch Head Kit 40 Amp / Includes-Head Trigger Handle
Price $361.79

131-315-666 Torch Head Kit 40 Amp / Includes-Head Trigger Handle replaces part # 4409. For new style torch part # 860-992-100
246-166-666 Air Solenoid
246-166-666 Air Solenoid
Price $78.29

246-166-666 Air Solenoid
252-003-666 Century Switch, Air Pressure Service
252-003-666 Century Switch, Air Pressure Service
Price $90.90

252-003-666 Century Switch, Air Pressure Service
254-004-666 Century Heavy Duty Regulator
254-004-666 Century Heavy Duty Regulator
Price $106.01

254-004-666 Century Heavy Duty Regulator
334-263-908 Electrode Plasma 20 40 Amp 3 Pkg Repl. 4402 44020
334-263-908 Electrode Plasma 20 40 Amp 3 Pkg Repl. 4402 44020
Price $21.65 3 Pack

Century / Solar Style Electrode. Plasma Cutting Electrodes initiate the high intensity cutting arc and provide the contact necessary for arc maintenance. Electrodes are subject to wear, causing arc to weaken or be intermittent.
334-264-908 Swirl Ring Plasma 40 Amp Repl. 4403 44030
334-264-908 Swirl Ring Plasma 40 Amp Repl. 4403 44030
Price $18.95 Each

Century / Solar Style Plasma 40 Amp Swirl Ring. Swirl Ring imparts a swirling current to stabilize the arc. Keep your plasma cutter working at peak performance with these replacement parts.
334-265-908 Nozzle Plasma 40 Amp Straight Type 3pk Repl. 4401 44010
334-265-908 Nozzle Plasma 40 Amp Straight Type 3pk Repl. 4401 44010
Price $17.85 3 Pack

Century - Solar Style 40 Amp Plasma Cutting Nozzles. The Plasma Cutting Nozzle controls arc for smooth cutting. When Purchasing a pair of Nozzles and nozzle caps, they must be the same style and amp rating (i.e. tapered, 40 amp)
334-266-908 Nozzle Cap Plasma Square Type 40 Amp Repl. 4404 44040
334-266-908 Nozzle Cap Plasma Square Type 40 Amp Repl. 4404 44040
Price $15.95 Each

Century / Solar Style Nozzle Cap, Square Type. Nozzle Caps direct cooling air flow to the nozzle and workpiece.
334-270-908 Nozzle Plasma 40 Amp Tapered Type 3pk Repl. 4411 44110
334-270-908 Nozzle Plasma 40 Amp Tapered Type 3pk Repl. 4411 44110
Price $23.45 3 Pack

Century - Solar Style 40 Amp Tapered Type Plasma Cutting Nozzles. The Plasma Cutting Nozzle controls arc for smooth cutting. When Purchasing a pair of Nozzles and nozzle caps, they must be the same style and amp rating (i.e. tapered, 40 amp)
334-271-908 Nozzle Cap Plasma Tapered Type 40 Amp Repl. 4414 44140
334-271-908 Nozzle Cap Plasma Tapered Type 40 Amp Repl. 4414 44140
Price $22.85 Each

Century / Solar Style Nozzle Cap, Tapered Type. Nozzle Caps direct cooling air flow to the nozzle and workpiece.
334-274-100 Trigger Assembly Replaces 334-281-100
334-274-100 Trigger Assembly Replaces 334-281-100
Price $34.10

334-274-100 Trigger Assembly Replaces 334-281-100
334-276-100 Plasma Torch Handle Assembly
334-276-100 Plasma Torch Handle Assembly
Price $74.50

Plasma Torch Handle Assembly, no hardware included. Molded handles only
512-087-908 O-Rings 20/40 15 20 50 Amp 2 pack Repl. 4405 44050
512-087-908 O-Rings 20/40 15 20 50 Amp 2 pack Repl. 4405 44050
Price $3.32 2 Pack

Century / Solar Package of 2 O-Rings for 20/40, 15, 20 and 50 amp plasma cutters. The rubber O-Ring prevents air leaks which cause erratic cutting and cooling.

860-992-100 Plasma Torch 40 Amp 25 Foot Hose Old Style
860-992-100 Plasma Torch 40 Amp 25 Foot Hose Old Style
Discontinued

Century 860-992-100 Plasma Torch 40 Amp 25 Foot Hose. OEM Torch Head hose assembly includes hose, torch head, o-ring, swirl ring, electrode, nozzle, nozzle cap.
860-992-100a Plasma Torch 40 Amp 25 Foot Hose New Style
860-992-100a Plasma Torch 40 Amp 25 Foot Hose New Style
Price $794.75

Century 860-992-100 Plasma Torch 40 Amp 25 Foot Hose. OEM Torch Head hose assembly includes hose, torch head, o-ring, swirl ring, electrode, nozzle, nozzle cap.
860-992-999 Discontinued See 131-315-666 Torch Head For 860-992-100A
860-992-999 See 131-315-666 Torch Head For 860-992-100A
Discontinued See 131-315-666

860-992-999 Discontinued See 131-315-666 TORCH HEAD FOR 860-992-100A, 40 Amp, Used on 40 Amp models 118-001-118-007, 2020, 2040, 5Z031, PCS118, PCS2040, YA2001, YA2001A, YA2225
YA2001 Snap-On Plasma Cutter Owners Guide Instruction Manual
YA2001 Snap-On Plasma Cutter Owners Guide Instruction Manual
Price $8.00

This Operators manual provides specific information for your model plasma cutter. This manual contains information such as the Important Safety Instructions, Usage and Maintenance of your plasma cutter.
Model Coverage: YA2001
This document is provided as a download PDF format. We suggest you save it to your computer for future reference.
