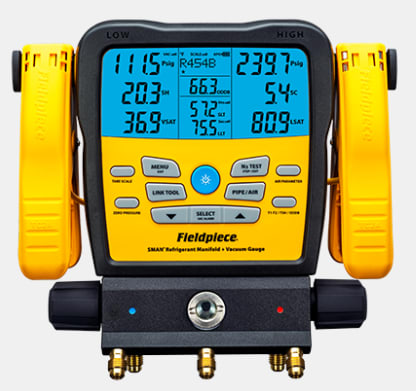

SM382V Fieldpiece Wireless Manifold 2 Valve

SM382V Fieldpiece Wireless Manifold 2 Valve

Our Price: $623.05


Product Code: FPISM382V
Qty:

Description Prop65

Rougher, tougher, readier than ever.

  • Supports over 70 refrigerants
  • A2L Compatible
  • Features an integral vacuum gauge
  • Logs hours of data
  • Runs a temperature compensated nitrogen pressure test
  • Displays in 12 languages
  • Serves as a central data hub for Job Link® wireless tools and connects to the Job Link® system app
  • Dust and water resistant (IP55)
Designed for Performance
Knowledge, power and experience are packed into the SMAN® Refrigerant 2-valve Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece’s laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market.
With wireless capabilities, data logging, and tightness testing, the SM382V is built so you can do your job easier, faster and better.

Includes:
  • SM382V 3-Port Manifold
  • (2) TC24 Wired Type-K Pipe Clamp Thermocouple
  • (1) ATA1 Type-K Bead Thermocouple with Clip
  • (1) ANC82 Easy-Open, Padded Case
  • (6) AA Alkaline Batteries
  • (1) Operator’s Manual
Product Features

Specifications
  • Display: LCD (5 inches diagonal)
  • Backlight: Blue (adjustable duration)
  • Low Battery Indication: is displayed when the battery voltage drops below the operating level.
  • Auto Power Off: 30 minutes of inactivity (adjustable)
  • Maximum Manifold Pressure: 800 Psig (5500 kPa)
  • Battery Type: 6 x AA alkaline
  • Battery Life: 350 hours typical (without vacuum, backlight, and wireless)
  • Radio Frequency: 2.4 GHz
  • Wireless Range: 1000 feet (305 meters) line of sight
  • Distance decreases through obstructions
  • Data Port: Micro USB (for extracting data logs or updating firmware)
  • Operating Environment: 32°F to 122°F (0°C to 50°C) at <75% RH
  • Storage Environment: -4°F to 140°F (-20°C to 60°C) at <80% RH (with battery removed)
  • Temperature Coefficient: 0.1 x (specified accuracy) per °C (0°C to18°C, 28°C to 50°C), per 1.8°F (32°F to 64°F, 82°F to 122°F)
  • Weight: 4.03 lbs (1.83 kg)
  • Water Resistant: Designed to IP54
