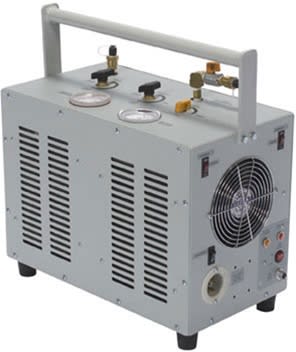

Tired of Slow Recovery Rates? HandiVac Offers Twice the Recovery Capacity of Typical Oil-less Units. Dual 0.75hp GoldPlus oil-less compressors double recovery rates for servicing commercial cooling units. Built-in anti-slugging feature automatically prevents liquid from harming compressors during direct liquid transfer. Oil-free compressors eliminate maintenance hassles. Easily switch between R12, R22, R134a, R500, R502, R410a, R409, MP39 and other high pressure refrigerants & blends. Automatic low pressure shut off at 15-in. Hg.
Float cable connection with bypass switch included.
Voltage
|
230 VAC, 60 Hz
|
Power
|
.75 HP
|
Fittings
|
3/8" Flare
|
Compressor
Type
|
2 Cylinder, Oil-less
|
Recovery
Vapor
|
0.62 lb/min
|
Recovery
Liquid
|
7.8 lb/min
|
Recovery
Push / Pull
|
25 lb/min
|
High
Pressure Shut-Off
|
550 psi, 400 psi reset
|
Auto
Shut-Off
|
15" hg
|
Self
Purge
|
Yes
|
Overfill
Protection
|
Yes
|
Dimensions
|
18" X 10" X 16"
|
Weight
|
63 lb
|
 Warning: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Product Features
HandiVac Offers Twice the Recovery Capacity of Typical Oil-less Units.
- Dual 0.75hp GoldPlus oil-less compressors double recovery rates for servicing commercial cooling units.
- Built-in anti-slugging feature automatically prevents liquid from harming compressors during direct liquid transfer.
- Oil-free compressors eliminate maintenance hassles. Easily switch between R12, R22, R134a, R500, R502, R410a, R409, MP39 and other high pressure refrigerants & blends.
- Automatic low pressure shut off at 15-in. Hg.
- Float cable connection with bypass switch included.
Specifications
Push/Pull (R502): 25-lb/min
Direct Liquid (R502): 7.80-lb/min
Vapor (R502): 0.62-lb/min
Weight: 63-lbs (28.6-kg)
Motor: dual 0.75hp
Hose Connections: 3/8-in. flare
Dimensions: 18-in x 10-in x 16-in
Part Number Power Options
RTO-500-115-F 110/50/1, 115/60/1, (2) 0.75hp, 15A
RTO-500-240-F 220/50/1, 230/60/1, (2) 0.75hp, 10A
Included with purchase:
5-cubic inch filter drier
6-ft float cable (3-pin connector)
Two 3/8-1/4" hose fittings
Power cord adapter (240V model only)
|
|
|
|
|
|
|
