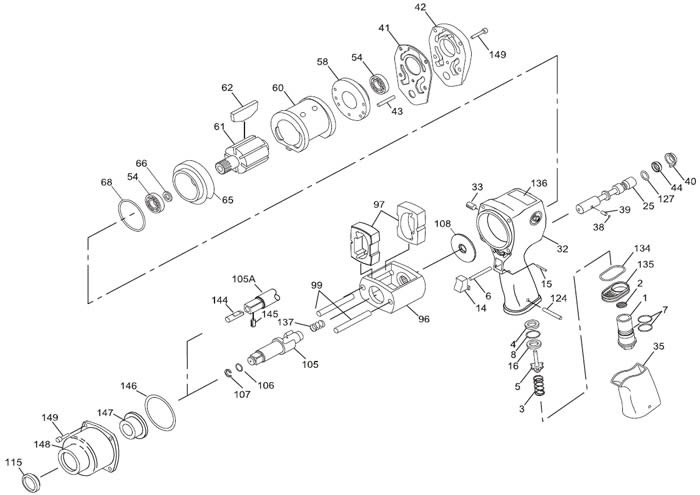

| Index No. | Part No. | Description | No. Req'd |
| 1 | CA147022 | Bushing - air inlet | 1 |
| 2 | CA059037 | Strainer - air | 1 |
| 3 | CA142464 | Spring - throttle | 1 |
| 4 | CA149095 | Spacer | 1 |
| 5 | CA142460 | Valve - throttle | 1 |
| 6 | CA144831 | Pin - throttle | 1 |
| 7 | C105693 | O-Ring | 2 |
| 8 | CA149096 | O-Ring | 1 |
| 14 | CA147017 | Trigger | 1 |
| 15 | CA144836 | Pin - roll | 1 |
| 16 | C139037 | Seat - throttle | 1 |
| 25 | CA147016 | Valve - reverse | 1 |
| 32 | CA156600 | HSG - motor | 1 |
| 33 | S089953 | Plug - pipe | 1 |
| 35 | 8940158432 | Handle - grip impact | 1 |
| 38 | S008613 | Ball | 1 |
| 39 | CA147021 | Spring - detent | 1 |
| 40 | CA155263 | Switch - regulator | 1 |
| 41 | 8940158633 | Gasket - motor housing (Model Bonly) | 1 |
| 42 | 8940158634 | Cover - motor housing (Model B only) | 1 |
| 43 | C085245 | Pin - dowel | 1 |
| 44 | 8940158535 | Spacer (Model B only) | 1 |
| 54 | C066342 | Bearing - ball | 2 |
| 58 | KF136268 | Plate - rear end | 1 |
| 60 | CA148607 | Liner | 1 |
| 61 | CA148606 | Rotor | 1 |
| 62 | CA148605 | Rotor blade (set of 6) | 1 |
| 65 | KF134665 | Plate - front end | 1 |
| 66 | CA087513 | Seal - oil | 1 |
| 68 | C087266 | O-Ring | 1 |
| 96 | CA155733 | Cage | 1 |
| 97 | CA155055 | Dog - clutch | 2 |
| 99 | CA155734 | Pin - clutch | 2 |
| 105 | CA148609 | Assembly - 1/2" square anvil RSR (friction ring) | 1 |
| 105A | CA156603 | Assembly - 1/2" square anvil RS (pin retainer) | 1 |
| 106 | P083071 | O-Ring | 1 |
| 107 | CA088097 | Retainer - socket | 1 |
| 108 | CA145569 | Washer - rear clutch | 1 |
| 115 | CA148608 | Seal clutch | 1 |
| 124 | R086991 | Pin - roll | 1 |
| 127 | CA147018 | O-Ring | 1 |
| 134 | CA148528 | Gasket | 1 |
| 135 | CA147023 | Deflector - exhaust | 1 |
| 136 | CA155779 | Decal - warning | 1 |
| 137 | CA154959 | Spring - compression | 1 |
| 144 | C076263 | Plug - retainer | 1 |
| 145 | C048499 | Pin - retainer | 1 |
| 146 | CA158192 | O-Ring | 1 |
| 147 | CA156601 | Bushing - shank | 1 |
| 148 | CA156602 | Housing - clutch | 1 |
| 149 | CA155947 | Screw / lock washer | 8 |
| - | 8940158638 | Tune-up Kit (incl 7, 8, 41, 62, 66, 68, 106, 107, 115, 127, 134, 144, 145, 146) | |
| - | 8940158640 | Repair Kit (CP6500 RSR) (incl Tune-up kit parts plus 97, 99, 105) | |
| - | 8940158639 | Repair Kit (CP6500 RS) (incl Tune-up kit parts plus 97, 99, 105A) | |
| - | 8940158675 | Conversion Kit (Model A to Model B) (incl 41, 42, 44) | |
