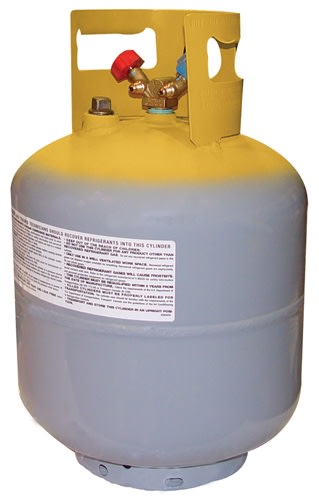

Product Features
- Powder coated cylinder for high gloss, durable finish
- Y-valve for liquid/vapor
- 3/4” NPT plugged opening accepts 80% fill float switch shut-off device if needed
- 1/4” opening for air purge valve
- Collar design for ease of handling
- Reusable and conforms to DOT-4BA400 specifications and ARI guidelines
- Nitrogen charged cylinder provides a clean, dry interior
- Storage and transport of recovered refrigerant gases
- UL Listed
- AUS Approved and TC Canadian Approved
Specifications:- Cylinder Capacity: 50 lb
- Without Float Switch
- Connection: 1/2" ACME
- Size (width): 12.25" x 18.78"
- Tare Weight: 28.71 lb
- Standard Specification: DOT - 4BA400
- Nominal Water Capacity: >47.7 lb / 21.6 L
- Service Pressure: 400 PSI / 2.7 MPa
- Tank Test Pressure: 800 PSI / 5.5 MPa
- Relief Valve Pressure: 600 PSI / 4.1 MPa
- Air Tightness Pressure: 400 PSI / 2.7 MPa
- Body Material: HP325 or HP345
- Color: Yellow / Gray
|
|
|
|
|
|
|
