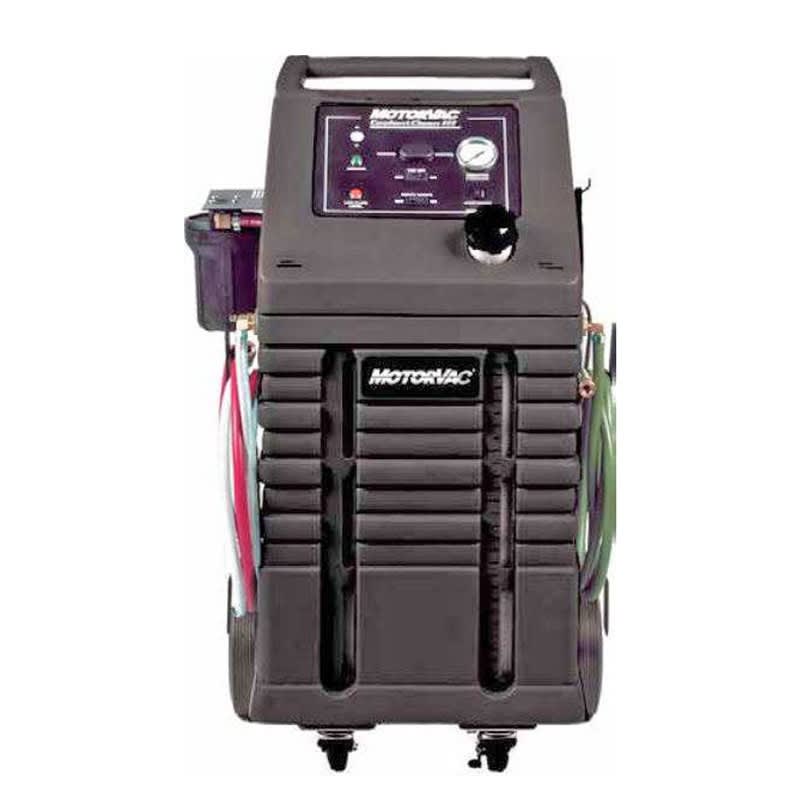

500-5100PD MotorVac CoolantClean III Engine Coolant Flush Machine

500-5100PD MotorVac CoolantClean III Engine Coolant Flush Machine

Price $4,056.13

Product Code: MOT500-5100PD
Qty:

Description Prop65

The 500-5100PD MotorVac CoolantClean III Engine Coolant Flush Machine With De-Gas Adapter and Coolant Flow Direction Adapter exchanges virtually all of the used coolant mixture in a vehicle’s cooling system in a few simple steps. The CoolantClean III coolant flush service can increase a shop’s profits by reducing the time it takes to do a complete fluid exchange to approximately 15 minutes. Simply by connecting to the vehicle’s upper radiator hose, the unit will flush virtually all of the old coolant and replace it with the new coolant.
The CoolantClean3 System is designed to service most automotive applications by exchanging virtually All of the coolant in the vehicle’s cooling system. Connections to the vehicle are achieved with the supplied adapters that install in-line between the vehicle’s radiator & upper radiator hose. Once connected, the unit can be safely used to:
  • Relieve system pressure to provide safe, worry-free access to the vehicle’s system.
  • Pull down or evacuate the coolant levels in the radiator and overflow tanks, providing safe connection of the unit without hot coolant worries.
  • Service the cooling systems by exchanging the coolant in the vehicle’s system.
Features include: Portable, Operates On 12 Volt DC Power, Easy Connection Though Radiator Hose, Internal Waste Tank, Easy Service Filter, Sturdy, Compact Design, Comprehensive Adapter Kit For Most Cars. Includes Standard Adapter Kit plus De-Gas and Coolant Flow Direction adapters.
500-5100PD MotorVac CoolantClean III Engine Coolant Flush Machine
Product Features
  • Static or dynamic fluid exchange
  • One switch, multi-function operation with “closed loop” mode at end of service
  • Unique “vacuum switch” regulates system depressurization and fluid evacuation
  • Complete fl ow synchronization maintains a 1-to-1 fluid ratio exchange
  • Front panel controls all machine functions with pressure gauge and warning lights
  • Industrial grade radiator hoses & adapters included to service most vehicles
  • Dual pump operation
  • Pressure is limited to 10 psi – if cap malfunctions, fluid will overflow into reservoir
  • Operates on 12 Volt DC
Specifications
Input: 12 VDC 8A

Machine Dimensions
Height: 96.5 cm (38”)
Width: 58.4 cm (23”)
Depth: 43 cm (17”)

Carton Dimensions
Height:104 cm (41”)
Width: 61 cm (24”)
Depth: 48 cm (19”)

Shipping Weight: 31.8 kg (70 lbs)
New Fluid Capacity: 24.6 L (26 qt)
Waste Tank Capacity: 24.6 L (26 qt)
Length of Power Cord: 3 m (10 ft)
Length of Hose: 2.4 m (8 ft)
Warranty: One Year

Includes:

500-5100PD: Includes Standard Adapter Kit plus De-Gas and Coolant Flow Direction adapters

Please consult the manual under the Documents tab for adapters information.

COOLANTCLEAN™ III Adapter List
ACCESSORIES
Part No.
Description
010-1052
Bottle 8 oz. clear, no cap
010-5602
Tool caddy 4 x 4 x 16 plastic, black
200-3106
Adapter kit - coolant clean (Standard)
SINGLE ADAPTERS - Included with Optional Adapter Kit #200-8803
Part No.
Description
063-1034
Adapter, plastic 2-1/4 x 2-1/2 x 3
070-2000
Hose, 2-1/4" OD cut into 5" lengths o/c
070-2001
Hose, 2-1/2" OD cut into 5" lengths o/c
070-2002
Hose, 3" OD cut into 5" lengths o/c
080-7000
Hose clamp 2-1/4" x 2-1/2"
080-7001
Hose clamp 2-1/2" x 3-1/2"
SINGLE ADAPTERS - Included with Optional Adapter Kit #200-3106
Part No.
Description
010-5408
Clamp large size #36 CT-2100
030-4404
Fitting step vacuum 1/4" x 3/8"
060-1400
Female 5/16"
063-1030
Adapter step 1-1/4" x 1-1/2" plastic
063-1031
Adapter plug 1-1/4" x 1-1/2" plastic
063-1032
Adapter step 1-3/4" x 2" plastic
063-1033
Adapter plug 1-3/4" x 2" plastic
070-0120
Hose 3/8" ID 4" rubber hose
070-0126
Hose 1-1/4" ID rubber hose NY braid black
070-0127
Hose 1-1/2" ID rubber hose NY braid black
070-0128
Hose 1-3/4" ID rubber hose NY braid black
070-0129
Hose 2" ID rubber hose NY braid black
080-6005
Hose clamp 1-1/16" to 2"
OPTIONAL ADAPTERS
Part No.
Description
063-1038
BMW coolant adapter - male
063-1039
Audi coolant adapter - male
200-8803
Adapter Kit - coolant clean (Heavy Duty)
