28586 JB Industries 2 Valve Brass Manifold w/R-134a, R-404A, R-507 - Bar/PSI - CCLE-60 Hoses

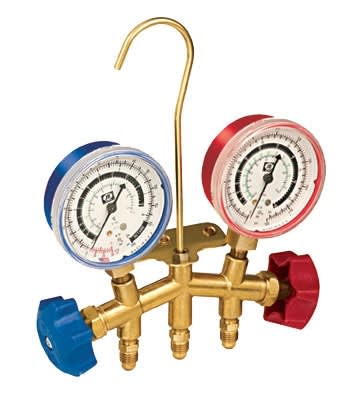

28586 JB Industries 2 Valve (BAR / PSI) Brass Manifold R-134A/R-404A/R-507A 63.5 mm Metric Gauges and 60" CCLE Hose Set

Alternative Views:


Price $173.40


Product Code: JBI28586
Qty:

Description Prop65


28586 JB Industries 2 Valve (BAR / PSI) Brass Manifold R-134A/R-404A/R-507A 63.5 mm Metric Gauges and 60" CCLE Hose Set - JB's classic forged brass manifold is offered with 2-1/2" (63.5 cm) metric gauges in BAR/PSI, KPA/PSI, and kg/cm2, as well as with standard CL and KobraŽ CLE series hoses.

An industry standard for countless years, the JB brass 2-valve manifolds feature our full flow design for faster evacuation/charging. Coupled with an angled bar for better knuckle clearance in rotating the hand wheels, and the original free flowing dual O-ring sealing system, these are the classic American made manifolds. All of JB's brass manifolds are equipped with heavy-duty metal gauge cases for added durability.

R-134A R-404A R-507A

JB's patent pending design of the fittings features a hood that locks the gasket into the fitting with a straight edge to straight edge force that eliminates the blowout of the gasket. The barbed depressor locks into the gasket exuding more outward force pushing the gasket further into place. The depressor is precisely machined and has a dimple that guides the valve core into place. The depressor is designed to provide maximum flow. Maximum flow, no blowouts, the JB difference.

Product Features
  • Manifold with 60" (152 cm) CCLE KobraŽ hose set
  • Standard 2-1/2 metric gauges, R-134A, R-404A, R-507A, scale BAR/PSI
  • Available with 3-1/8" (80 mm) metric gauges in select quantities
  • Surge dampened gauges for reduced needle movement
  • Original free floating dual O-ring sealing system for faster evacuation/charging
  • Available with 2-1/2" and 3-1/8" size gauges with and without boots
  • All metal gauges
  • Color-coded refrigerant dials for easy reading
  • Pull-out proof hanging hook
  • Replaceable intake/hose holder fittings for storage
  • Easy turning plastic hand wheels
  • Made in the USA
