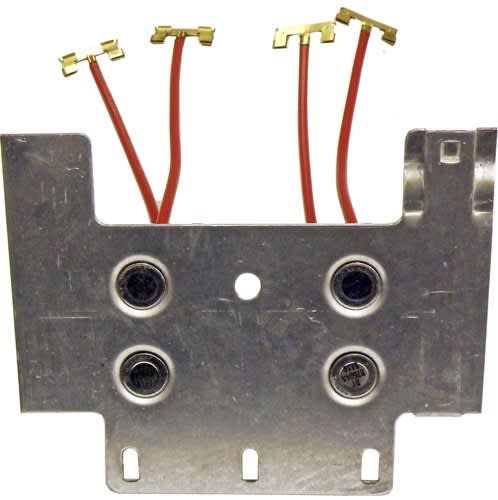

2299001576 Schumacher Heatsink Rectifier Assembly

2299001576 Schumacher Heatsink Rectifier Assembly
Old style plate has no mount for fan speed controller

Alternative Views:



Product Code: 2299001576
Discontinued

Description Prop65

Heatsink Rectifier Assembly, requires no soldering to install. Used on newer style units. Heavy Duty design for more reliability. 1/4" spade terminal leads make installation a snap. This unit does not include insulators, bolts, nuts or any other hardware.
Product Features
  • Heatsink Back Plate
  • 4 Wire Lead Set
  • Dual Spade Terminal Connections
  • Diodes Installed

Service Note:

When purchasing this rectifier it may be necessary to purchase 2 of a "169135 Single Male to Double Male Splitter Piggyback Spade Terminal". It will be used when replacing an old style Heatsink Rectifier Assembly with the new style Rectifier Assembly. Older units may have had an extra male spade for the fan controller to connect.
