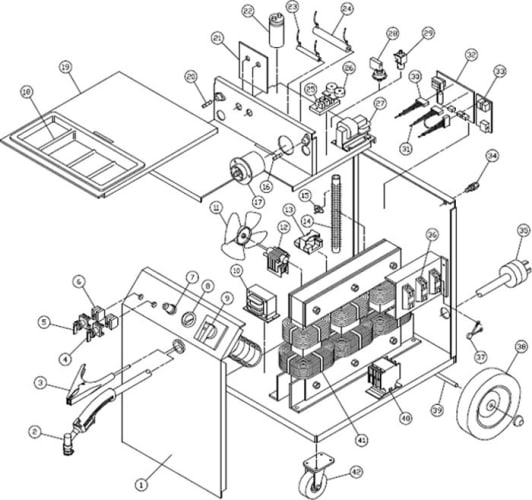

118-018Replacement Parts List
|
Item No.
| Part No.
| Description
|
1
| 743-213-666
| Front Panel
|
2
| 238-304-000
| Hand Held Torch Assembly, 25 ft
|
| 334-322-100
| Hand Held Torch Assembly, 45 ft |
| 334-315-100
| 180° Machine Torch Assembly
|
3
| 238-305-666
| Gound Cable with Clamp
|
| 239-010-102
| Clamp Only
|
4
| 246-251-666
| Run / Setup Switch
|
5
| 246-247-666
| Power Switch
|
6
| 246-252-666
| Contact (NO) |
| 246-253-666
| Contact (NC)
|
| 245-119-666
| Light Assembly with Bulb
|
7
| 254-005-666
| Air Regulator
|
8
| 251-003-666
| Pressure Gauge
|
9
| 246-246-666
| Rate Selector Switch with Knob
|
| 246-265-666
| Knob Only
|
10
| 880-199-888
| Control Transformer
|
11
| 316-007-666
| Fan Blade
|
12
| 216-088-666
| Fan Motor
|
13
| 246-255-666
| Pilot Arc Relay
|
14
| 245-100-666
| Pilot Arc Resistor
|
15
| 216-073-666
| Thermal Breaker
|
16
| 245-120-666
| 0.5 Amp Fuse
|
17
| 880-205-666
| Coupling Coil
|
18
| 312-130-666
| Parts Tray
|
19
| 743-220-666
| Top Panel
|
20
| 245-116-666
| 4 Amp Fuses (Pack of 3)
|
21
| 880-206-666
| Input / Output Circuit Board
|
22
| 213-028-666
| Capacitor
|
23
| 860-853-666
| 5 Ohm Resistor
|
24
| 880-210-666
| 500 Ohm Resistor
|
25
| 512-101-666
| Spark Block With Points
|
26
| 213-029-666
| Pilot Capacitors
|
27
| 880-202-666
| High-Voltage Transformer
|
28
| 246-254-666
| Air Safety Switch
|
29
| 246-166-666
| Air Solenoid
|
30
| 880-196-666
| Wire Harness |
31
| 880-195-666
| Wire Harness
|
32
| 860-962-666
| Main Circuit Board
|
33
| 880-209-666
| Pilot Arc Circuit Board
|
34
| 253-089-666
| Port Fitting with Nut
|
35
| 248-221-666
| Power Cord
|
36
| 244-085-666
| Rectifier
|
37
| 880-077-666
| Transient Protector
|
38
| 413-052-666
| Wheel with Hardware
|
39
| 413-053-666
| Axle with Hardware
|
40
| 246-249-666
| Contactor
|
41
|
| Main Transformer
|
42
| 413-054-666 | Casters with Hardware (2)
|
43
| 410-632-016 | Right Side Panel (Not Shown) |
44
| 410-633-016 | Left Side Panel (Not Shown) |
45
| 412-357-666 | Handle (Not Shown) |
46
| 412-360-016
| Lifting Ring (Not Shown)
|
