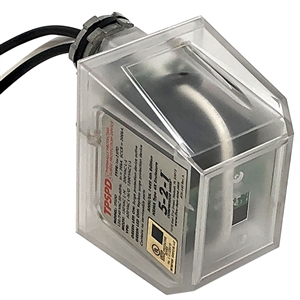

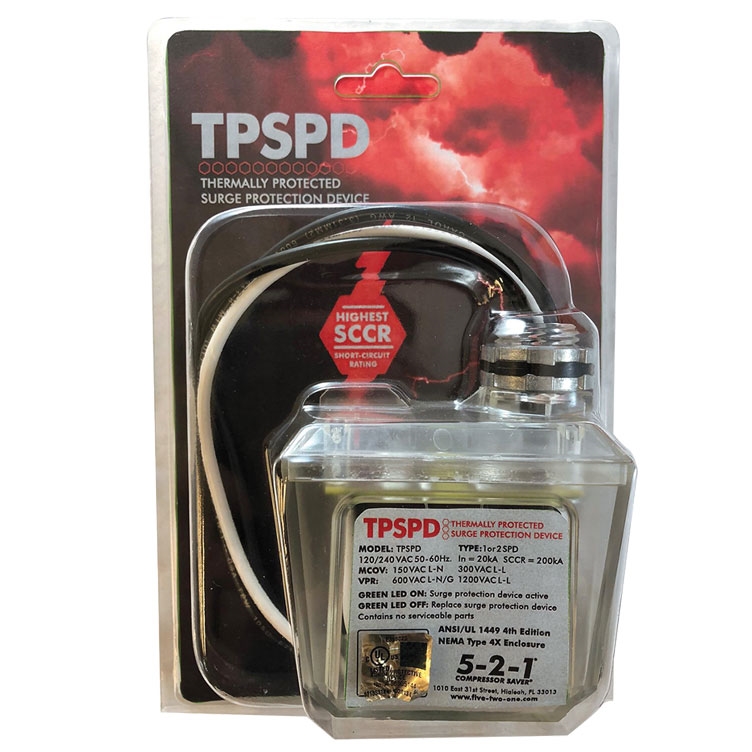

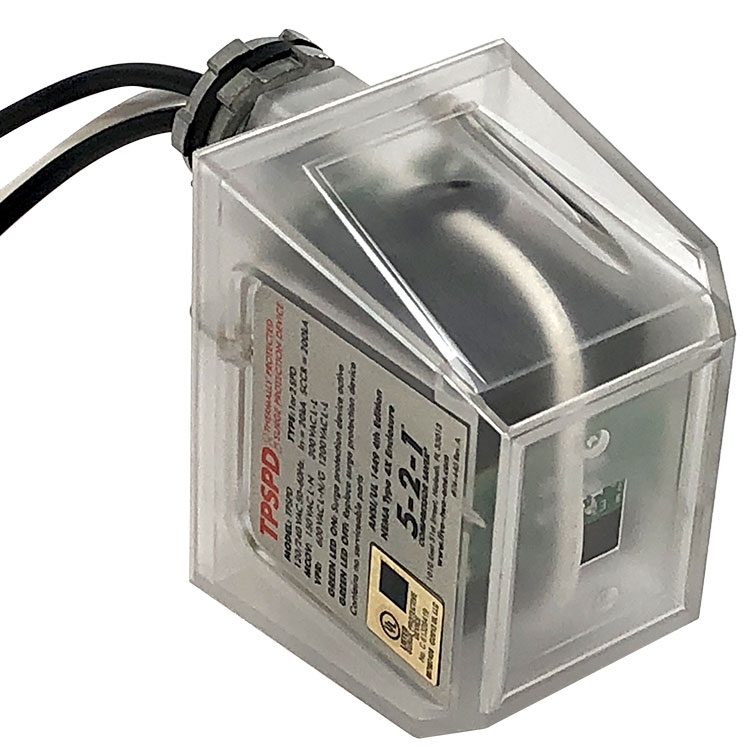

TPSPD 5-2-1 Thermally Protected Surge Protection Device

Alternative Views:

Price $81.37

Product Code: CPSTPSPD

Qty:

Description

Prop65

The 5-2-1® Thermally Protected Surge Protection device, TPSPD, is designed to protect HVAC equipment and other high-end appliances from damaging electrical surges produced by proximity lightning strikes and other power line transients. Engineered using the latest in Thermally Protected Metal Oxide Varistor (MOV) technology and independently tested to ensure superior protection and reliability for your customers.
Your air conditioning system is one of the most expensive pieces of equipment in your home. Protect your home's air conditioning system by installing a 5-2-1 Surge Protector.
The 5-2-1 Surge Protector keeps your air conditioning system safe as it is specially designed to interrupt power surges, so they never reach your equipment. Studies show that average home or business sees 300 potentially damaging surges each and every year. In fact, with more demand on the power grid, customers are seeing lower quality electrical service, which means even more damaging surges.

The TPSPD incorporates a GREEN LED visual indicator that lets the user know the equipment is being protected. When the GREEN LED indicator is OFF the connected equipment is not protected and surge protection device needs to be replaced. The TPSPD surge protectors can be installed by removing a knockout from the disconnect or the panel box.

Protect your AC and install a 5-2-1 Surge Protector today.

Product Features
Protection For:

Entire HVAC unit
Furnaces
Heat pumps
Motors
Refrigeration systems
Electro-mechanical devices

Surge Protection Device Specifications

Maximum Surge Current: 100,000 Amps
SPD Type: 1 or 2
Service Voltage (VAC): 120/240 (single phase), 50 or 60 Hz
Nominal Discharge Current Rating: 20kA
Short Circuit Rating (SCCR): 200kA
Maximum Continuous Operating Voltage (MCOV): 150VAC L-N 300VAC L-L
Voltage Protection Rating (VPR): 600VAC L-N/G 1200VAC L-L
Operating Temperature: -10 ˚C to 50 ˚C
Diagnostic Indicator: Green LED (ON) Active Protection Green LED (OFF) Replace Device
Approvals: UL 1449 4th Edition, ANSI, cUL
Enclosure: Nema 4X
Installation: Electrical Disconnect, Junction Box, Electrical Panel
Warranty: 3 years and a Connected Equipment warranty up to $10,000
