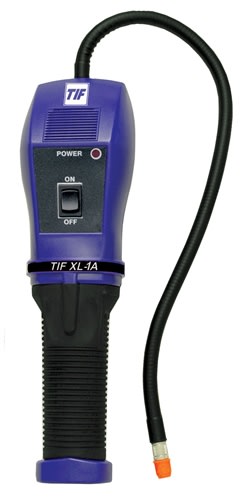

TIFXL-1A TIF Economy Refrigerant Leak Detector

TIFXL-1A TIF Economy Refrigerant Leak Detector



Product Code: TIFXL-1A
Discontinued

Description Prop65

The TIF XL-1A is a great choice for the economically minded technician. Features include, an all new ergonomic design with a rubber cushion grip on handle. Simple controls for easy operation. The advanced Digital Signal Processing, monitors the sensing tip up to 2000 times per second. Detects all halogenated refrigerants. Variable frequency audible alarm makes it easy to monitor leak rate. Flexible stainless steel probe with rubber liner for protection. Constant Power/Low Battery Indicator. Blow Molded carrying case, included. Certified to SAE J1627. Warranty 2 years. Ultimate Sensitivity < 0.4 oz. per year. Sensitivity Levels 1. Battery life Approx. 40 hrs.
Product Features
  • All new ergonomic design
  • Rubber cushion grip on handle
  • Simple controls for easy operation
  • Advanced Digital Signal Processing, monitors the sensing tip up to 2000 times per second
  • Detects all halogenated refrigerants
  • Variable frequency audible alarm
  • Flexible stainless steel probe with liner
  • Constant Power/Low Battery Indicator
  • Blow Molded carrying case, included
  • Certified to SAE J1627
  • Warranty up to 3 years


TECHNICAL DATA
Sensing Tip Life: Approx. 20 hours
Operating Temp: 30ºF to 125ºF (0ºC to 52ºC)
Power Supply: 3VDC, 2 “C” cell alkaline batteries (included)
Unit Dimensions: 10.25” x 2.75” x 2.25” (26 cm x 6.9 cm x 5.7cm)
Unit Weight: 1.2 lbs (544 grams)
Probe Length: 14” (35.5 cm)

SpecificationsTIF XL-1ATIF RX-1ATIF XP-1A
Ultimate Sensitivity< 0.4 oz. per year< 0.25 oz. per year< 0.1 oz. per year
True Mechanical PumpN/AYesYes
Visual Leak Indication LevelsN/A6 (single color)18 (tri-color)
Sensitivity Levels127
One Touch Reset and Keypad ControlsN/AYesYes
Mute ButtonN/AN/AYes
Battery TestN/AN/ATrue voltage indication
Battery LifeApprox. 40 hrs.Approx. 30 hrs.Approx. 30 hrs.
Warranty2 Years2 Years3 Years
