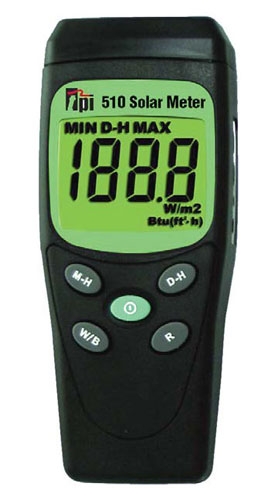

510 TPI Solar Meter

510 TPI Solar Meter

Price $129.95

Product Code: TPI510
Qty:

Description Prop65

The TPI 510 is an easy to use, solar irradiance meter for measurement of not only solar radiation, but all measurable light sources including all visible light. The TPI Solar Meter is state of the art and easy to use. It is designed to measure solar power in W/m2 or BTU (ft2*h). Use to find the optimal angle of inclination for installing solar panels. Measure light intensity through windows. Determine the effectiveness of solar film / window tint. Measure solar radiation (irradiance). Displays results in W/m2 or BTU. 0 to 1999 W/m2 (0 to 634 BTU) range. Min / Max and Data hold functions.
Product Features
  • Use to find the optimal angle of inclination for installing solar panels
  • Measure light intensity through windows
  • Determine the effectiveness of solar film / window tint
  • Measure solar radiation (irradiance)
  • Displays results in W/m2 or BTU
  • 0 to 1999 W/m2 (0 to 634 BTU) range
  • Min / Max and Data hold functions

Model 510 Specifications
Range 1999W/m 2 / 634BTU/(ft2*h)
Accuracy Typically within 10W/m 2
[3BTU/(ft2*h)] or 5%, whichever is greater in sunlight;
Additional temperature induced error 0.38W/m2/C
[0.12BTU/(ft2*h)/C] from 25C
Display: 3-1/2 digits LCD with maximum reading 1999
Sampling Time: Approx. 0.25 second
Resolution: 0.1W/m 2 / 0.1BTU/(ft2*h)
Over-Input Display shows" OL".
Operating Temp. & RH: 41F~104F (5C~40C), below 80%RH.
Storage Temp. & RH: 14F~140F (-10C~60C), below 70% RH.
Dimensions & Weight: 5.1 x 2.4 x 1.5 5.3oz
(132 x 60 x38 mm, approx. 150g)
EMC: This instrument is EMC-compliant and has undergone compatibility
tests according to EN61326 (1997) + A1 (1998) + A2 (2001).
Accessories User Manual
A9V battery(NEDA 1604 IEC 6F 22 JIS 006P)*1
Carrying Case
