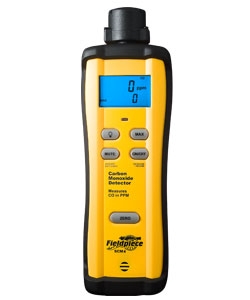

SCM4 Fieldpiece Carbon Monoxide Detector - Fast Enough for Walk Around Tests. The SCM4 Carbon Monoxide (CO) Detector has a very fast reaction time, and measures CO in parts per million (ppm). Its electrochemical sensor is fast enough for walk-around tests. Features and benefits include: Field-replaceable CO sensor; Advanced three-pin sensor measures 0 to 1000 ppm CO; Calibrate / Zero SCM4 to ambient quickly with the ZERO button; Audio and visual alarms w/mute; Bright-blue, backlit dual-display with MAX and real-time measurements displayed; Magnetic hanger for hands-free operation; Auto Power-Off (APO).
The "Walk-Around" Test: The SCM4 responds to changes in CO levels in real time.
- Zero the unit outdoors away from any source of CO (will not zero if CO levels are higher than 5ppm)
- Enter the structure
- Walk around and watch the display
- Move toward the area of highest concentration to find the CO source
CO Exposure Effects:
|
CO ppm
|
Effects
|
9 ppm
|
Minimal. Max allowable
concentration for eight hours (EPA and ASHRAE).
|
|
35 ppm
|
Max for continuous exposure for
one hour (EPA and ASHRAE).
|
|
50 ppm
|
Max for eight hours (OSHA).
|
|
100 ppm
|
Trips installed CO detectors.
UL2034 specifies a max exposure of 100 min.
|
|
200 ppm
|
In two to three hours: slight
headache, tiredness, dizziness, nausea. UL2034 specifies a max exposure
of 35 min.
|
|
400 ppm
|
In one or two hours: frontal
headaches. In three hours: life threatening. UL2034 specifies a max
exposure of 15 min.
|
|
800 ppm
|
In forty five minutes:
dizziness, nausea, and convulsions.
|
|
800 ppm
|
In two to three hours: death.
|
|
1,600 ppm
|
In one hour: death.
|
|
6,400 ppm
|
In fifteen minutes: death.
|
|
12,800 ppm
|
In three minutes: death.
|
