SC440 Fieldpiece Clamp Meter-TRMS,Mag

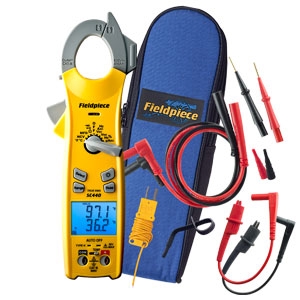

SC440 Fieldpiece Essential Clamp Meter

Price $200.14


Product Code: FPISC440
Qty:

Description Prop65

SC440 Fieldpiece Essential Clamp Meter - Feature Rich for HVACR Pros. Dual Display. True RMS Clamp Meter with Temperature, Inrush Current, Capacitance and Backlight - All-in-one HVACR meter - model SC440. The mid-size essential clamp meter has virtually every parameter for electrical and thermal HVACR testing in one meter.  This auto and manual ranger includes a host of safety features including a high-voltage LED and beeper, a continuity warning, push button non-contact voltage (NCV), a lead holder with detachable leads, and alligator probe tips for easy one-handed testing. As far as ranges go, it has temperature, capacitance, microamps DC for flame diode tests, and everyday electrical ranges for HVACR. Not to mention it is one of the most durable meters in the industry.
Product Features
  • Sturdy magnetic strap
  • True RMS
  • Inrush current
  • Test-lead holder
  • Volts AC/DC
  • True RMS
  • Inrush current
  • Duty cycle %
  • 400 amps AC
  • Magnetic strap
  • Dual display
  • Temperature F/C
  • Capacitance
  • Microamps DC
  • Frequency via leads and clamp
  • Non-contact voltage
  • 50 Mega Ohm with 0.1 resolution
  • Continuity
  • Diode test
  • Hold
  • Clamp probe holder
  • LCD backlight
  • Low battery indicator
  • Hi-voltage Warning

Included Items:

  • SC440 Meter
  • ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
  • ATB1 Wrap Tab Type K Thermocouple
  • ASA2 Short Alligator Lead Extensions
  • Velcro Strap
  • 9V Battery
  • ANC12 Padded Case
SC440 Specifications
Function
 		Range
 		Best Accuracy
 		Best Resolution
Volts AC
 600
 1.2%±8 0.0001
Amps AC
 400
 2.0%±10 0.01
Volts DC
 600
 0.5%±2 0.0001
µAmps DC
 500
 1.0%±2 0.1
Ohms
 50M
 1.0%±5 0.1
Microfarads
 5000
 3%±5 0.001
Hz (clamp)
 10 to 400
 0.1%±5 0.1
Hz (leads)
 10 to 1M 0.1%±5 0.1
Duty Cycle %
 5 to 95 2%±10 0.1
°F
 -30°F to 932°F ±1°F* 0.1
Battery
 9 Volt, 100 hrs typical battery life (Alkaline)

* System accuracy (SC440 meter + Type K thermocouple after field calibration)
