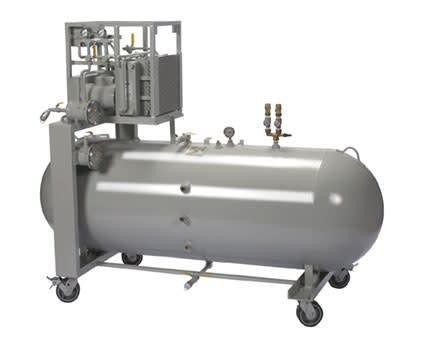

Evac-ASME Refrigerant Recovery and Storage System High Speed, High Efficiency Recovery and storage of all High Pressure Refrigerant.Blazing Recovery Rates to Service Chillers & Other Large Cooling Systems. Recovers R22 at 325-lb/min liquid & 6-lb/min vapor!. Rugged open drive compressor provides years of reliable service, even on refrigerants heavily contaminated with oil, air, moisture, & acids. Equipped with in-line oil separator. Services R12, R22, R134a, R502, R410a & other high-pressure refrigerants. Easy Operation. Purging lines and switching from liquid to vapor recovery modes simply involves turning three 3way hand valves and rerouting one hose.
Packaged recovery/storage unit for high pressure refrigerants. Unit is hard piped and permanently mounted on ASME tank. For use with large tonnage chillers. Able to recover R22 at 325lbs/minute push/pull, 6.0lbs/minute vapor. Capable of storing up to 6448lbs of R134a at 80% capacity. Dual 250-psi relief valves on diverting valve. Mounted on casters for mobility. 80% tank full float switch and 12' cable. Bottom drain connection for easy maintenance. Liquid and Vapor ports: 3/4" threaded connection with isolation ball valves. ETL certified.
 Warning: This product may expose you to chemicals including lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Product Features
- High Speed, High Efficiency Recovery and storage of all
High Pressure Refrigerants
- Packaged recovery/storage unit for high pressure
refrigerants
- Unit is hard piped and permanently mounted on ASME tank
- For use with large tonnage chillers
- Able to recover R22 at 325lbs/minute push/pull,
6.0lbs/minute vapor
- Capable of storing up to 6448lbs of R134a at 80% capacity
- Dual 250-psi relief valves on diverting valve
- Mounted on casters for mobility
- 80% tank full float switch and 12' cable
- Bottom drain connection
- Liquid and Vapor ports: 3/4" threaded connection with
isolation ball valves
- ETL certified
|
Specifications
|
|
Push/Pull Rates (R22)
|
325-lbs/min
|
|
Vapor Rates (R22)
|
6.0-lbs/min
|
|
Float Connection
|
3-pin BH
|
|
Connections
|
3/4" flare
|
|
Low Pressure Switch
|
15" Hg
|
Certifications
- Certified by ETL to UL-1963 standards
- Rated in accordance with ARI Standard 740-1998
|
Order Number
|
Specifications
|
Tank/gal
|
Weight
|
Condensor
|
|
CRH-A-240-1-500
|
230/60/1, 220/50/1, 3hp, 15A
|
500
|
2050
|
Air
|
|
CRH-A-230-3-500
|
230/60/3, 220/50/3, 3hp, 20a
|
500
|
2050
|
Air
|
|
CRH-A-460-3-500
|
460/60/3, 415/50/3, 3hp, 15A
|
500
|
2050
|
Air
|
|
CRH-W-240-1-500
|
230/60/1, 220/50/1, 3hp, 15A
|
500
|
2075
|
Air/Water
|
|
CRH-W-230-3-500
|
230/60/3, 220/50/3, 3hp, 20a
|
500
|
2075
|
Air/Water
|
|
CRH-W-460-3-500
|
460/60/3, 415/50/3, 3hp, 15A
|
500
|
2075
|
Air/Water
|
|
CRH-A-240-1-850
|
230/60/1, 220/50/1, 3hp, 15A
|
850
|
2275
|
Air
|
|
CRH-A-230-3-850
|
230/60/3, 220/50/3, 3hp, 20a
|
850
|
2275
|
Air
|
|
CRH-A-460-3-850
|
460/60/3, 415/50/3, 3hp, 15A
|
850
|
2275
|
Air
|
|
CRH-W-240-1-850
|
230/60/1, 220/50/1, 3hp, 15A
|
850
|
2300
|
Air/Water
|
|
CRH-W-230-3-850
|
230/60/3, 220/50/3, 3hp, 20a
|
850
|
2300
|
Air/Water
|
|
CRH-W-460-3-850
|
460/60/3, 415/50/3, 3hp, 15A
|
850
|
2300
|
Air/Water
|
Included with purchase:
- One 48cu" filter core
- Two 10’ x 3/4" diameter hose
- One 20’ x 3/4" diameter hoses
- 100' power cord for controls
- 50' power cord for unit
- 12' tank float cable
- Two each 3/4"-5/8" and 5/8"-1/2" reducing fittings
|
|
|
|
|
|
|
