PT200W CPS Digital Wireless Vacuum Pressure Temperature Gauge

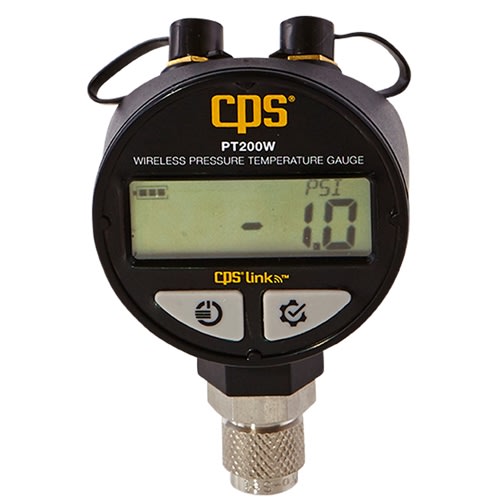

PT200W CPS Digital Wireless Pressure Temperature Gauge
Alternative Views:

Price $279.48

Product Code: CPSPT200W

Description Prop65

PT200W Wireless Vacuum Pressure Temperature Gauge

The PT200W is a compact, portable instrument for accurately measuring and calculating HVAC/R data such as pressure, Super Heat, Sub Cooling, and temperature differential (tH-tL) that are critical to properly servicing HVAC/R equipment. Use the PT200W as a stand-alone gauge or pair it with a mobile device to set up, store or e mail client and job lists, jobsite data, invoices and other convenient, time saving features. Pressure range of -14.5 PSIG to 750 PSIG and Temperature Range: 23F to 149F, Great for calculating superheat, subcooling, vacuum, temperature and general system performance. The PT200W is a precision pressure temperature gauge for obtaining accurate pressure or temperature measurements during evacuations of HVAC systems. It is also ideal for obtaining vacuum data while conducting time, target, dynamic and static vacuum tests. The PT200W may be used as a standalone gauge, or it may be paired with a mobile device(using the free CPS Link app) for greatly enhanced job-site capabilities.

Product Features
  • Large, 5 digit LCD display with low battery indicator
  • Easy 2 button control (On/Off and Units)
  • Select from 4 different units (at any time)
  • Atmospheric to 0 micron pressure range
  • Auto-Off after 10 minutes of no use
  • Operates up to 20 continuous hours on one 9V alkaline battery (included)
  • Compatible with all refrigerant gases (including ammonia)
  • Field cleanable sensor
  • Includes stainless steel T connector, hanger hook, durable canvas storage case, temperature clamps and Quick Start Guide all packed in a clear clamshell
  • Designed and manufactured in the USA with US and foreign components.


  • Choose from 8 different languages to work in
  • Log vacuum test data (viewable in real time graphs)
  • Client Lists Enter and retain client information
  • Job Checklist Create and retain job reminders
  • Job Tracker Create and retain record of services performed
  • Geolocation Record where (global coordinates) and when (time stamp) jobs performed
  • Set low and high alarms
  • Cloud backup of data
Operating Pressure Range: -14.5 PSIG to 750 PSIG
Pressure Reading Accuracy: 1% of reading +/- 0.1 PSIG (0.01 bar)
Maximum Pressure: 750 PSIG MWP, 3000 PSIG Burst
Operating Temperature Range: 23F to 149F (-5C to 65C)
Temperature Reading Accuracy: +/- 0.36F (+/- 0.2C)
SH,SC And Saturation Temperature accuracy: +/- 0.5F (+/- 0.3C)
tH & tL Thermistor Temperature Range: -40F to 302F (-40C to150C)
Clamp Opening: 1-1/8 (28.5mm)
Cord Length: 6ft (1,82m)
Storage Temperature Range: -40 to 185F (-40C to 85C)
Operating and Storage Humidity: 0-95%, Non-condensing
Wireless Range: Power: High = Up to 250 ft. (76 m); Normal = Up to 175 ft. (53 m); Low = Up to 100 ft. (30 m)
Power Source: One 9 volt alkaline battery (ANSI 1604AC - IEC 6LR61)
Battery Life: Up to 40 hours continuous use.
Auto-Off*: 10 minutes = default if no key pressed, no wireless connection, gauge not logging data.
Mechanical Connection: Standard 1/4 female SAE refrigerant hose type (stainless steel) with core depressor
Warranty: 1 year
Gauge To Wireless Device Connection: Patented Wireless CPS Link Technology (US Patent No. 9,043,161)

*Wireless range and auto-offsettings can be configured only on the app.
