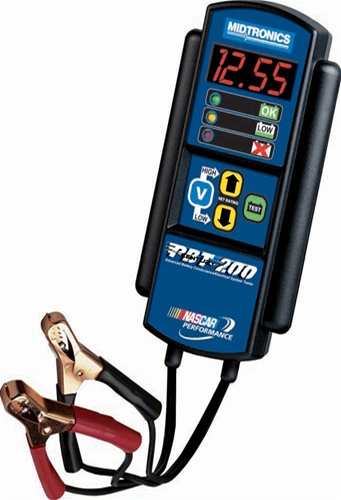

PBT-200 Midtronics Advanced Battery Conductance Electrical System Tester

An Essential Tester for the Professional Technician

• Proven conductance technology
• Accurate battery test decision in seconds
• No user interpretation of meter required
• Tests discharged batteries - no charge required before testing
• Voltmeter mode
• Displays available CCA's following each test
• Bad cell detection
• High/low voltage capture
• Improved starter / charger system testing

Rating System
CCA = 200 - 850
DIN = 120 - 550
EN = 200 - 900
IEC = 120 - 550
SAE = 200 - 900

Operating Temperature
0 F to 120 F
(-18 C to 50 C)

Voltage Range
8 - 17 Volt DC

Interface Operations
Dual conductor Kelvin clamps

Display
3 LEDs (green, yellow, red)
3 position LED voltage screen

Housing Material
Acid resistant ABS plastic

Product Dimensions
7.5" x 3.5" x 2.0"
(230 mm X 102 mm X 65 mm)

Product Weight
16 oz
(427 g)

Power Requirements
Uses power of the battery under test (minimum 8 volts required)

Warranty
Midtronics standard one-year warranty
