460 TPI Oscilloscope 20 MHz Oscilloscope Dual Channel True RMS DMM Leads Charger

460 TPI Oscilloscope 20 MHz Oscilloscope Dual Channel True RMS DMM Leads Charger

Price $871.60

Product Code: TPI460
Qty:

Description Prop65

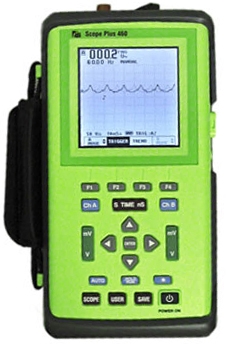

TPI 460 Handheld Oscilloscope. Dual Channel, 20MHz Oscilloscope with True RMS DMM - The 460 hand held oscilloscope features a 3” x 3” cold cathode fluorescent display providing test data in a clear easy to see format. The cursor readout function allows the width and amplitude of a signal to be measured precisely instead of trying to figure it out manually. Technicians appreciate the bright backlight of the 3" x 3" cold cathode flourescent display and rugged construction inside and out.

20 MHz Bandwidth: Capture signals from AC/DC drive motors, sensors, actuators, line and control voltages, UPS and industrial machines.

Cursor Readout: Measure the width and amplitude of the signal and display it on the screen instead of trying to figure it out manually.

Decibels: Accurately measure sound signals.

Pre and Post Triggering: View the waveform before and after the point the scope triggers at to find glitches and other anomalies with the signal.

Trend Mode: Graph readings over a predetermined time period to check for surges or dropouts.

Dual Input: View two waveforms on the display for comparison and troubleshooting.

True RMS DMM: Measure AC/DC volts up to 600V, frequency to 20 MHz, and resistance to 20 Meg ohm. Obtain accurate measurements of non-sinusoidal AC voltage and current waveforms found in controls and circuits with True RMS.

Real Time Sample Rate: View two waveforms on the display for comparison and troubleshooting.

Bright LCD Backlight: Adjust brightness levels for clarity in any light condition.

Optically Isolated RS232 Output: Transfer data safely without a direct connection to your computer’s circuitry.

Continuous Autoset: Feature automatically determines the correct vertical and horizontal settings for optimum waveform viewing. Autoset provides hands free operation while moving between test points.

Included with the 460: Two Test Leads, two Banana to BNC Adapters, one DC-60 MHz x 1 x 10 Passive Oscilloscope Probe, Power Supply and Instruction Manual


Product Features
  • 4,000 count true RMS DMM, CACV, DCV ohms and continuity buzzer need optional adapters for current measurement
  • 20 MHz Bandwidth
  • Cursor Readout
  • Decibels
  • Pre and Post Triggering
  • Trend Mode
  • Dual Input
  • Real Time Sample Rate
  • Bright LCD Backlight
  • Optically Isolated RS232 Output
  • Continuous Autoset

New with the 460:

  • Cursor Readout
  • Decibels
  • Pre and Post Triggering
  • cULus 3111

Model 460 Applications

  • Power Quality
  • Variable Speed Drives
  • Industrial Motor Controls
  • Battery Testing
  • Programmable Logic Controls
  • NC/CNC Machines
  • Uninterruptable Power Supplies
  • Audio
  • Video
  • Industrial Lighting Controls
  • Factory Automation
  • Line Conditioners
  • Voltage Regulators
  • Inverters
  • Gaming Industry

Category Ratings:

  • Category I: Usually electronic equipment or equipment where measures have been taken to limit transient over voltages.

  • Category II: Single phase loads like appliance personal computers, television sets, and other household loads. Outlets located more than 30 feet froma CAT III source or more than 60 feet from a CAT IV source.

  • Category III: Distribution level fixed installations like distribution panel devices, short branch and feeder circuits, three phase loads, and single phase commercial lighting.

  • Category IV: Equipment and lines located on the power line side of a service panel or where a low voltage connection is made to utility power

SPECIFICATIONS:

Display:

    Size
    76mm X 76mm (3" X 3")
    Pixels
    240 X 240 pixels
    LCD type
    STN Normally Gray or Black
    Back Light
    CCFL

Memory:

    Waveform
    Screens (2)
    Setup
    User Setup (1)

Power:

    External
    Power Adapter (5.5V / 2A)
    Internal Battery
    Ni-MH 1.2V X 4
    Battery Operating Time
    More than 2.5 hours with bright backlight
    Charging Time
    10 hours (in power off condition)

SCOPE MODES


Horizontal:

    Samples per division
    25 samples / div.
    Time / division
    Equivalent sampling
    50ns to 500ns / div
    Real time sampling
    1us to 2s / div
    Modes Single, Auto, Normal, Glitch
    Accuracy Real time sampling +/- (0.1% + 0.04 time/div)
    Equivalent sampling
    +/- (0.5% + 0.08 time/div)

Vertical:

    Samples Rate
    25 Mega samples per second
    Bandwidth (-3dB)
    DC Coupled
    1:1 shielded test leads ; DC to 10MHz


    Coaxial cable (50Ω) ; DC to 20MHz

    AC Coupled
    1:1 shielded test leads ; 10Hz to 10MHz


    Coaxial cable (50Ω) ; 10Hz to 20MHz
    Resolution
    8 bits

    Channel 2
    Coupling AC, DC, GND

    Input impedance
    Approx. 1M Ohm
    Sensitivity
    50mV to 200V/div 1,2,5 sequence
    Accuracy
    +/- (3% + 0.05 range/div)
    Display modes
    CH1, Dual
    Maximum Input Voltage
    600V

Trigger:

    Position
    Ver 1; Fixed Position / Ver 3; Adjustable Position
    Mode
    Free run, normal
    Source
    Internal (CH1/CH2)
    Slope
    Positive / Negative
    Sensitivity
    Real time sampling .... 2 divisions or more
    Equivalent sampling .... 3 divisions or more

Trend Plot:

    Plot Time
    30 sec/div to 1-hour/div
    Plot Data Type
    Max / Min Selectable

Temperature Measurement:

    Optional Adapter
    A301 (k - Type thermocouple)
    Range
    -40° F to 500° F
    Accuracy +/- (1.5% + 5 digits)

Pressure / Vacuum Measurement:

    Optional Adapter
    A620
    Range
    Pressure 500 psi
    Vacuum 30inHg
    Accuracy Pressure +/- (5% + 5 digits)
    Vacuum +/- (1.5% + 5 digits)

Current Measurement:

    Optional Adapter 1
    A251 (AC AMPS)
    Range
    0 - 40A / 40 - 400A
    Accuracy (0 - 40A)
    +/- (2.0% + 10 digits, 50 / 60 Hz)
    (40 - 400A) +/- (2.0% + 10 digits, 50 / 60 Hz)
    Optional Adapter 2
    A256 (AC/DC AMPS)
    Range 0 - 40A / 40 - 400A
    Accuracy (0 - 40A) +/- (2.0% + 10 digits, 50 / 60 Hz)
    (40 - 400A) +/- (2.0% + 10 digits, 50 / 60 Hz)
    Optional Adapter 3
    A296 (AC/DC AMPS)
    Range 0 - 400A / 400 - 1000A
    Accuracy (0 - 400A) +/- (2.0% + 10 digits, 50 / 60 Hz)
    (400 - 1000A) +/- (2.0% + 10 digits, 50 / 60 Hz)

MULTIMETER MODES


DC Volts (CH1/CH2)

    Range
    Resolution
    Accuracy
    400mV
    0.1mV
    +/- (0.5% + 5 digits)
    4V
    0.001V
    +/- (0.5% + 5 digits)
    40V
    0.01V
    +/- (0.5% + 5 digits)
    400V
    0.1V
    +/- (0.5% + 5 digits)
    600V
    1V
    +/- (0.5% + 5 digits)

AC Volts (CH1/CH2)

    Range
    Resolution
    Accuracy
    400mV
    0.1mV
    20Hz to 50Hz; +/- (2% + 20 digits)
    4V
    0.001V
    50Hz to 1kHz; +/- (1% + 10 digits)
    40V
    0.01V
    1kHz to 20kHz; +/- (2% + 10 digits)
    400V
    0.1V
    40Hz to 400Hz; +/- (1% + 10 digits)
    600V
    1V
    40Hz to 400Hz; +/- (1% + 10 digits)

Frequency (CH1/CH2)

    Range
    Resolution
    Accuracy
    100Hz
    0.01Hz
    +/- (1.0% + 10 digits)
    1KHz
    0.1Hz +/- (0.5% + 5 digits)
    10KHz
    1Hz +/- (0.5% + 5 digits)
    100KHz
    10Hz +/- (0.5% + 5 digits)
    1MHz
    100Hz +/- (0.5% + 5 digits)
    10MHz 1kHz +/- (0.5% + 5 digits)
    20MHz 10kHz +/- (2.5% + 5 digits)

OHM (CH1 ONLY)

    Range
    Resolution
    Accuracy
    400 Ohm
    0.1 Ohm +/- (0.7% + 5 digits)
    4K Ohm
    1 Ohm +/- (0.5% + 5 digits)
    40K Ohm 10 Ohm +/- (0.5% + 5 digits)
    400K Ohm 100 Ohm +/- (0.5% + 5 digits)
    4M Ohm 1k Ohm +/- (1.0% + 10 digits)
    20M Ohm 10k Ohm +/- (3.0% + 20 digits)

Continuity (CH1 ONLY)

    Range
    Resolution
    Accuracy
    4 K Ohm
    1 ohm
    Beeps < 0.1 K ohm, +/- (2% + 5 digits)

Diode (CH1 ONLY)

    Range
    Resolution
    Accuracy
    2 V
    1 mV
    Open circuit voltage < 5 V


    Short circuit current < 5 mA


    Reading accuracy; +/- (2% + 5 digits)

dBV (CH1 ONLY)

dBV=20 log |Vin|

dBM (CH1 ONLY)

0dBM=1mw
