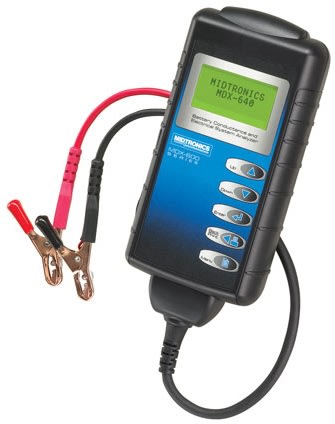

MDX-640 Midtronics 6 & 12 Volt Battery Analyzer

MDX-640 Midtronics 6 & 12 Volt Battery Analyzer

Price $385.00

Product Code: MDTMDX-640
Qty:

Description Prop65

Maximum battery testing productivity The MDX-600 Series from Midtronics combines 30 years of experience and innovation gained from selling essential tools to nearly every car and truck OEM in the world, with the industry standard conductance technology for battery testing to make testing safe, fast, and simple. Save Time and Money by Improving Battery Testing Productivity The MDX-600 Series helps you improve customer service by reducing wait times. Increase sales by proactively testing batteries and electrical systems. Increase customer satisfaction by identifying potential problems before they occur. MDX-600 Series advanced features include Multiple vehicle applications, battery types and rating systems. Large back-lit screen and improved user interface. Integrated printer option Improved removable cable design.

SAFE to use anywhere, even in front of the customer
FAST and accurate testing of the battery or electrical system in seconds
SIMPLE, proven user interface eliminates guesswork and user error to provide an accurate analysis every time.

The MDX Series advanced features include: Multiple vehicle applications, battery types, and rating systems Large back-lit screen and improved user interface Integrated printer option Improved Removable Cable Design Which helps to: Save time and money by improving battery and electrical diagnostic productivity Improve customer service by reducing wait time Increase sales by proactively testing batteries and electrical systems Increase customer satisfaction by identifying potential problems before they occur.
Product Features
  • Battery Conductance and Electrical System Analyzer
  • Quick starter analysis without disabling the ignition
  • Advanced menu-driven interface for a complete charging system analysis in seconds
  • The MDX Series advanced features include: Multiple vehicle applications, battery types, and rating systems. Large back-lit screen and improved user interface.
MDX-640 Battery Conductance Analyzer Includes:
  • MDX-600 Series Analyzer
  • MDX-640 Software (installed)
  • Manual
  • Stud adapters
  • 4' cable set
Vehicle Applications:
  • Automotive Motorcycle
  • Marine Cranking
  • Lawn and Garden
  • Group 31
  • Commercial
  • 4D/8D
Battery Type:
  • Regular flooded
  • AGM flat plate
  • AGM spiral
  • Gel
Global Systems:
  • CCA, CA, MCA, JIS, SAE, EN, DIN, IEC 6 and 12 volt batteries
  • 12 & 24 volt charging system testing
Advanced Starter/Alternator Testing (650 / 650P Only)
  • Quick starter analysis without disabling the ignition
  • Advanced menu-driven interface for a complete charging system analysis in seconds
Additional Features:
  • VIEW/PRINT to view last test from memory or print another copy
  • Large back-lit display keeps operation simple for all levels of users
  • Data card reader for future software upgrades
  • 4 or 10 Removable cable set for running the test from the drivers seat.
  • QC MODE for performing quality control testing
  • Multiple Languages
  • COUNTER Information to track activity, including good vs. replace, batteries and system test results
Models:
MDX-640
Battery Conductance Analyzer Includes: MDX-600 Series Analyzer, MDX-640 Software (installed), Manual, stud adapters, 4 cable set
MDX-650 Battery Conductance and Electrical System Analyzer Includes: MDX-600 Series Analyzer, MDX-650 Software (installed), Manual, stud adapters, 10 cable set, tool bag.
MDX-650P Battery Conductance and Electrical System Analyzer with Integrated Printer Includes: MDX-600 Series Analyzer with integrated printer, MDX-650 Software (installed), Manual, stud adapters, 10 cable set, tool bag.
Available Accessories:
  • A156 Tool Bag Carrying Case
  • A207 Replacement 4 Battery Test Cable
  • A208 Replacement 10 Battery Test Cable
  • A033 Lead Stud Adapters, 2 male, 2 female
  • A095 6 pack, thermal paper* *Replacement paper rolls available at most office supply stores
  • A087 IR Printer with Charger (for MDX-640)
Applications:
  • Automotive
  • Motorcycle
  • Marine
  • Lawn & Garden
  • Group 31
  • Commercial 4D/8D
  • 6 & 12 Volt batteries
Display: 5-line Text/Graphical Backlit Display

Operating Temperature: 32F to +122F

Test Range:
  • CCA: 100-2000 BY 5
  • CA: 100-2000 BY 5
  • MCA: 100-2000 BY 5
  • JIS#: By Part Number
  • EN: 100-2000 BY 5
  • DIN: 100-1200 by 5
  • SAE: 100-2000 by 5
  • IEC: 100-1200 by 5
Voltage Range: 1Vdc 30Vdc

Cable Length: 4-ft

Power Requirements: Uses the power of the battery under test and 6 AA Internal Batteries

Languages: English, Spanish, French Canadian, Portuguese

Housing Material: Acid resistant ABS plastic

Dimensions: 7.7 x 3.9 x 2.4

Weight: (1.2lbs)
