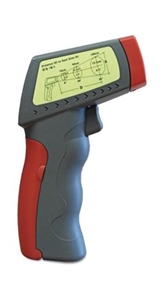

384A TPI Infrared Thermometer With Laser -4 To 1,832 F 9:1 Ratio With K-Type Input

384A TPI Infrared Thermometer With Laser -4 To 1,832 F 9:1 Ratio With K-Type Input

Price $112.80


Product Code: TPI384A
Qty:

Description Prop65


TPI 384A Non-Contact IR Thermometer 0°F to 1832°F (-18°C to 1000°C) 8:1 Ratio with Laser Sighting - Thoroughly testing and diagnosing high efficiency HVACR systems or large surface areas can be labor intensive and expensive. Using the appropriate non-contact thermometer can reduce man hours and help insure system performance more easily, accurately and affordably.

The 384A is a gun-type non-contact IR thermometer that is capable of measurements from 0°F to 1832°F (-18°C to 1000°C). Measure Hard-to-reach, sensitive, or large moving target areas. Use the 384A to measure surface temperature and watch the LCD immediately display accurate data without the use of a probe.

Product Features
  • Easy to use single button operation
  • 0.1 resolution for best reading
  • Last reading hold
  • Soft holster pouch included
  • 9.5:1 distance to spot ratio
  • Large, easy to read display
  • °C and °F selectable
  • 9V battery included
  • Temperature range: 383: -31°F to 999°F (-35°C to 560°C)

Applications

  • Remote vent and return temperature measurements
  • Tubing, piping, and sheet metal temperatures
  • Leaks around cooler or freezer doors

HVACR

  • Compressor heads
  • Vents
  • Insulation
  • Leaks around cooler or freezer doors
  • Leaks around windows
  • Steam traps
  • Registers

FOOD

  • Surface temperatures
  • Holding cabinets
  • Serving temperatures
  • Storage temperatures

ELECTRICAL

  • Cables
  • Circuit breakers
  • Connections
  • Machinery
  • Motors and Transformers

Specifications

  • Range: -31°F to 999°F (-35°C to 560°C)
  • Accuracy: ±2% or ±2°C or ±3°F whichever is greater
  • Repeatability: ±2% of reading or ±2°C whichever is greater
  • Response Time: 500 m Second
  • Spectral Response: 7µm ~ 14µm
  • Emissivity: 0.95 fixed
  • Distant to Target Ratio: 9.5:1
  • Laser Sighting: Yes
  • °C / °F Select: Yes
  • Display: 4 digits
  • Display Resolution: 0.1° / 1° Automatic
  • Display Hold: Last reading display for 7 seconds
  • Low Battery Detection: Yes
  • Back Light: Yes
  • Operating Temperature: 0°C ~ 50°C
  • Storage Temperature: -25°C ~70°C without battery
  • Relative Humidity: 10% ~ 95%
  • Weight: 7oz (200g)
  • Dimension: 155mm x 127mm x 35mm
  • Power: 9V Alkaline or NiCd battery
