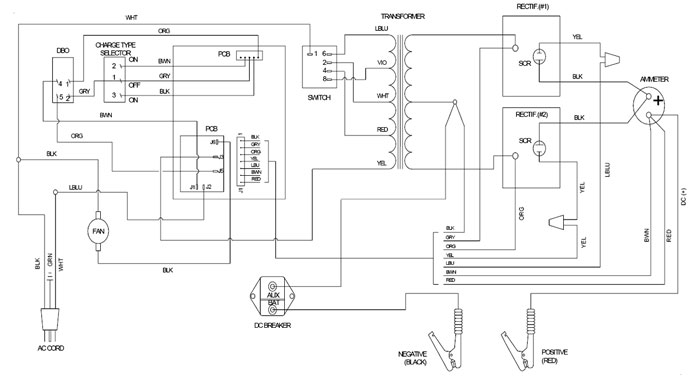

ESS6011 Associated Battery Charger Parts List (New Style)
Dated 12/19/2019 & Later


Item Description Part No.
1 Axle With Nuts 610052
2 Wheel With Nut 611157
3 Rectifier (1) 611467
4 Rectifier (2) 611468
5 Harness 611237
6 Transformer 611492
7 Fan Blade 610189
8 Fan Motor With Blade 610190
9 DC Circuit Breaker 610536
10 Switch (Momentary)
610263
11 Switch (On-Off-On) 611167
12 A/C Power Cord 611481
13 DC Cable Clamp Set 611493
14 Cable Clamps 6199
15 Jaw Repair Kit 610970
16 Circuit Board 611495
17 Fan Control Relay Board 611470
18 Ammeter 605204
19 Power Switch With Knob 611187
20 Pointer Knob 603147
- Parts Not Shown -

Clamp Bar
610517

Handle 605213

Sort By:
Page of 1
603147 Associated Pointer Knob (Press-On) 603147 Associated Pointer Knob (Press-On)

Associated Pointer Knob with spring clip (Press-On). Fits 1/2 round shaft switches and timers only. For 3/4 round shaft applications see 610930.

Price $10.95
604579 Associated Stop/Go Polarity Indicator Assembly 604579 Associated Stop/Go Polarity Indicator Assembly

STOP/GO LITE Assembly will upgrade any battery charger clamp kit or repair an existing damaged light. A great safety feature for any battery charger. Fits Snugly inside a clamp lever and reads red for no-go, green for go, preventing reverse connection in poorly lit or unreadable conditions.

Price $33.71
605204 Associated Ammeter 0-100 Amp Range W/ Boost 605204 Associated Ammeter 0-100 Amp Range W/ Boost

Associated 605204 Ammeter 0-100 Amp Range w/ Boost. Includes Sealing Gasket, Mounting Template and mounting hardware.

Price $29.34
605213 Associated Chrome Handle 605213 Associated Chrome Handle

Chrome Handle with screws and insulated clamp bar.

Price $52.11
610052 Associated Axle With Nuts 610052 Associated Axle With Nuts

610052 Associated Axle With Nuts. Axle 3/8" O.D. x 15-3/4" Long

Price $30.68
610189 Associated Fan Blade Kit 610189 Associated Fan Blade Kit

610189 Associated Fan Blade Kit, includes two blades with the same diameter, rotation, pitch and wings but differing shaft diameter for older units.

Price $14.39
610190 Associated Fan Motor Kit With Blade 115 Volt 610190 Associated Fan Motor Kit With Blade 115 Volt

Universal Fan Motor Installation Kit includes everything needed to install on virtually any unit. Comes complete with a 115v. skeleton frame motor (reversible), equipped with 1/4" spade terminals for electrical connections, a fan blade, a set of 1/4" female spade terminal adapter leads, 1/4" Crimp-on female spades for alternate hook up, 2 sets of pin terminals for molex plug installation and 2 wire nuts.

Price $62.04
610263 Associated Rocker Switch SPDT 610263 Associated Rocker Switch SPDT

610263 Associated Rocker Switch SPDT

Price $11.36
610517 Associated Clamp Bar 7" 610517 Associated Clamp Bar 7"

610517 Associated Clamp Bar 7"

Price $7.58
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp) 610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.

Price $17.87
611157 Associated Wheel Kit Rubber 6 Inch 611157 Associated Wheel Kit Rubber 6 Inch

611157 Associated Wheel Kit Rubber 6 Inch

Price $35.97
611167 Associated SPDT Switch (On-Off-On) 611167 Associated SPDT Switch (On-Off-On)

611167 Associated SPDT Switch (On-Off-On)

Price $19.04
611187 Associated 8 Position Rotary Selector Switch With Pointer Knob 611187 Associated 8 Position Rotary Selector Switch With Pointer Knob

This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.

Price $44.18
611237 Associated Harness 7 Pin Housing 611237 Associated Harness 7 Pin Housing

Harness 7 Pin Housing

Price $30.68
611467 Associated Rectifier #1 ESS6008 ESS6011 611467 Associated Rectifier #1 ESS6008 ESS6011

611467 Associated Rectifier #1 ESS6008 ESS6011

Price $88.24
611468 Associated Rectifier #2 ESS6008 ESS6011 611468 Associated Rectifier #2 ESS6008 ESS6011

611468 Associated Rectifier #2 ESS6008 ESS6011

Price $88.24
611470 Associated Fan Relay Board 611470 Associated Fan Relay Board

611470 Associated Fan Relay Board

Price $61.13
611481 Associated A/C Power Cord 115 Volt 611481 Associated A/C Power Cord 115 Volt

611481 Associated A/C Power Cord 115 Volt

Price $46.40
611493 Associated DC Cable Clamp Set ESS6011 611493 Associated DC Cable Clamp Set ESS6011

611493 Associated DC Cable Clamp Set ESS6011

Price $184.55
611495 Associated Printed Circuit Board ESS6011 611495 Associated Printed Circuit Board ESS6011

611495 Associated Printed Circuit Board ESS6011

Price $128.91
6199 Associated 400 Amp Clamp Kit (Pair) 6199 Associated 400 Amp Clamp Kit (Pair)

Made in the USAProfessional quality heavy-duty clamps for all booster cables. Replace Associated clamps or upgrade other lesser products with these professional quality replacement clamps.

Price $25.91
6200 Associated Side Terminal Adapter Pair 6200 Associated Side Terminal Adapter Pair

Need side terminal adapters? Model 6200 fits Associated and most other insulated clamps for easier connections. Side terminal adapters clip easily into place inside the clamp rivit and pull out of the way when not in use.

Price $7.34
ESS6011 Associated 70/35/200 Amp 12/24 Volt Automatic Automotive Battery Charger / Power Supply ESS6011 Associated 70/35/200 Amp 12/24 Volt Automatic Automotive Battery Charger / Power Supply

Made In The USA The ESS6011 Associated 70/35/200 Amp 12/24 Volt Automatic Automotive Battery Charger / Power Supply provides safe effective charging at 12 Volt and 24 Volt Flooded / Maintenance Free, AGM, Gel Cell, and Deep-Cycle Batteries, as well as Spiral Cell, Orbital or Optima Batteries. The Electrical Stability System (ESS™) technology turns ESS6011 into a stable power supply for extended service procedures or re-flashes while the battery is removed while maintaining a nominal 13.7V DC Output. The Deep Discharge and Recovery with desulfation mode enables the user to recover dead batteries ultimately saving the cost of the unit over several batteries that would have normally gone to waste.

Price $781.75
