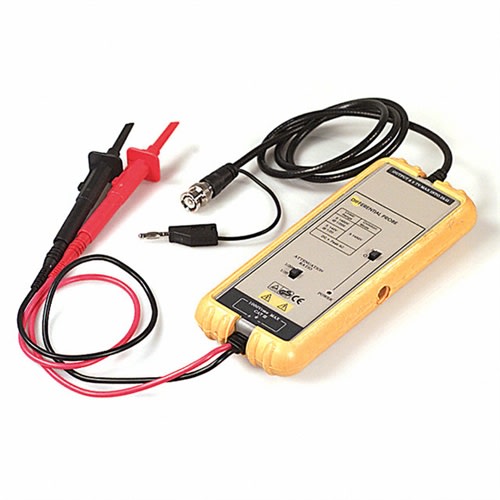

ADF25 TPI Differential Oscilloscope Probe

ADF25 TPI Differential Oscilloscope Probe

Price $325.45


Product Code: TPIADF25
Qty:

Description Prop65

TPI ADF25 Differential Oscilloscope Probe -  Selecting the correct oscilloscope probe ensures accuracy and can improve the performance of your test instrument. TPI offers a wide range of high quality oscilloscope probes designed to meet the most demanding applications.
Product Features

Oscilloscope / Differential Probe Selection

Selecting the correct oscilloscope probe ensures accuracy and can improve the performance of your test instrument. TPI offers a wide range of high quality oscilloscope probes designed to meet the most demanding applications.

The IP series monolithic probes have switchable attenuation and are available in 60 and 250MHz. These probes are ideal for technicians that need a basic oscilloscope probe.

The slimline design P and SP series probes are available in fixed or switchable attenuation. These series of probes are perfect for the technician needing additional features such as replaceable cable and interchangeable probe tip. The compensation adjustment for these probes is located in the BNC to eliminate noise pickup.

TPI also offers three models of high voltage differential probes all with high common mode rejection, wide bandwidth, and fast rise times. Differential probes enable the viewing of signals not referenced to earth ground and provide better performance than a matched pair of single ended oscilloscope probes when measuring these types of signals.

Several important factors must be taken into account when selecting the proper probe.

  • The probe should have sufficient bandwidth and rise time for the test instrument and application. Choose a probe with at least an equal bandwidth as the scope it will be used with. For best performance a probe with twice the bandwidth as the scope should be selected.
  • For oscilloscope probes, the input capacitance of your oscilloscope should be within the compensation range specification of the probe. In addition, if your oscilloscope has readout function, select a probe with this capability.
  • For differential probes, make sure the maximum differential voltage is adequate for your application and the common mode rejection specification meets the requirements of the tests being performed. Refer to the oscilloscope and differential probe specification tables to select the correct probe for your application.

Oscilloscope / Differential Probe Terminology

>>Attenuation: Ratio of the output signal to the input signal. Attenuation should remain constant decreasing by 3dB only as the frequency increases to the maximum bandwidth.

>>Bandwidth: The maximum -3dB frequency that can be expected.

>>Cable Length: Length of the cable from the end of the probe to the end of the connector. It is important to use a probe with just enough cable length for your needs. Long cables increase the capacitance and propagation delay of the probe.

>>Compensation Range: The range a probe can be compensated to match the input capacitance of the test equipment it is being used with.

>>IEC 1010: Probes with the IEC 1010 category rating have been designed for safety.

>>Input Impedance: The total resistance and capacitance as measured at the tip of the probe. This specification is used to define the loading effect of a probe. At frequencies under 1MHz the input resistance of the probe will have the most influence. At higher frequencies the input capacitance will have the most influence.

>>Max Input Voltage: The maximum voltage the probe can be used at.

>>Max Differential Voltage: The maximum differential voltage that can be measured by a differential probe.

>>Readout: Probes with this capability are compatible with readout function oscilloscopes that automatically detect and display the attenuation factor of the probe.

>>Rise Time: The time required for the leading edge of a pulse to rise from 10% to 90% of its final value.

>>CMRR: Common Mode Rejection Ratio. A measure of a differential probes ability to reject any signals common to both test points in a differential measurement.


FUNCTION

ADF25

ADF25A

ADF25C

Bandwidth

DC -25 MHz (-3dB)

DC -25 MHz (-3dB)

DC -70 MHz (-3dB)

Accuracy

± 2%

± 2%

± 2%

Rise Time

14nS

14nS

14nS

CMRR (Typical) @ 50Hz

-80dB

-86dB

-80dB

CMRR (Typical) @ 20kHz

-60dB

-66dB

-60dB

CMRR (Typical) @ 200kHz

-50dB

-56dB

-50dB

Input Impedance

4M/10pf each side to ground 8M/5pF between inputs

4M/10pf each side to ground 8M/5pF between inputs

10M/10pf each side to ground 20M/5pF between inputs

Input Voltage

±140V DC Inc.Pk AC @ 20:1 or 100V RMS

±170V DC Inc.Pk AC @ 10:1 or 50V RMS

±700V DC Inc.Pk AC @ 100:1 or 400V RMS

Maximum Differential

± 1,400VDC Inc. Pk AC 200:1 or 1,000V RMS

± 1,400VDC Inc. Pk AC 100:1 or 500V RMS

± 7,000VDC Inc. Pk AC 1,000:1 or 5,000V RMS

Output Voltage

± 7V minimum 2KΩ load

± 7V minimum 2KΩ load

± 7V minimum 50KΩ load

Offset (typical)

<± 5mV -10° C to + 40° C

Common Mode

± 1,400V DC Inc. Pk AC or 1,000V RMS

± 1,400V DC Inc. Pk AC or 1,000V RMS

± 7,000V DC Inc. Pk AC or 2,500V RMS

Noise (typical)

0.7mV RMS

0.7mV RMS

0.9mV RMS

Output Source Impedance

1Ω @ 1kHz. 8Ω @1 MHz

1Ω @ 1kHz. 8Ω @1 MHz

50Ω

Operating Temperature

-10° C to + 40° C (14°F to 104°F)

Power Requirements

4 AA cell or 6V main adapters: DC/600mA or DC/800mA

Power Supply

Not included

Input Leads

45 cm double insulated PVC terminated in 44 mm safety plugs

45 cm double insulated PVC terminated in 44 mm safety plugs

60 cm double insulated Rubber terminated in sprung hooks

IEC1010

CAT III

CATIII

CATII
