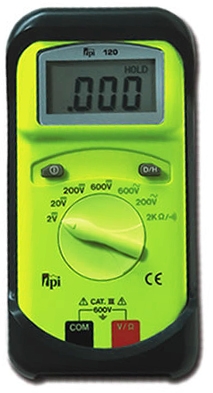

120 TPI Compact Digital DMM W/Boot Test Leads And Manual

120 TPI Compact Digital DMM W/Boot Test Leads And Manual

Price $28.60

Product Code: TPI120
Qty:

Description Prop65


TPI 120 Compact Digital Multimeter (DMM) with Boot, Test Leads and Manual - When using the Model 120, press the DATA-H button at any time on any function or range to freeze the reading on the LCD display. This function is very useful when measuring in locations where the display is difficult to read.

Safety: Meets CE and IEC 1010 requirements. UL Listed.

Large LCD: Easy to read at all angles and the majority of lighting levels.

Data Hold:Freeze readings on the display.

Rubber Boot: Added protection when the instrument is dropped. (120NB does not include boot.)

Versatile: Use accessories like a carbon monoxide attachment to expand the capabilities of the 120.

Product Features
  • 2,000 count display
  • 0 to 600 volts AC and DC
  • 0 to 2,000 ohms
  • Audible continuity
  • 10 MOHM internal impedance
  • 0.5 % DCV basic accuracy
  • cULus 61010-1
  • CAT II - 1000V, CAT III - 600V

The 120 comes complete with the following accessories:

  • 120 Instrument
  • Rubber Boot
  • Test Lead Set
  • 9V Battery
  • Instruction Manual

Model 120 Applications

  • HVAC/R Applications:
    • Line voltage
    • Control circuit voltage
    • Heating element resistance (continuity)
    • Compressor winding resistance
    • Contactor and relay coil resistance
    • Continuity of wiring
  • Electrical Applications:
    • Measure line voltage
    • Continuity of circuit breakers
    • Voltage of direct drive DC motors.

Category Ratings:

  • Category I: Usually electronic equipment or equipment where measures have been taken to limit transient over voltages.

  • Category II: Single phase loads like appliance personal computers, television sets, and other household loads. Outlets located more than 30 feet froma CAT III source or more than 60 feet from a CAT IV source.

  • Category III: Distribution level fixed installations like distribution panel devices, short branch and feeder circuits, three phase loads, and single phase commercial lighting.

  • Category IV: Equipment and lines located on the power line side of a service panel or where a low voltage connection is made to utility power
Model 120 Specifications
DC Volts Maximum Input: 600V

Maximum Resolution: 0.001V

Accuracy: +/-0.5%

AC Volts Maximum Input: 600V

Maximum Resolution: 0.1V

Accuracy: +/-1.2%

DC Amps N/A
AC Amps N/A
Resistance (Ohms) Maximum Input: 2KΩ

Maximum Resolution: 0.001KΩ

Accuracy: +/-0.5%

Frequency N/A
Capacitance N/A
Inductance N/A
Temperature

(K-Type Thermocouple)

N/A
Continuity Audible at less than 100Ω
Diode N/A
Duty Cycle N/A
True RMS Responding No
Conductance No
Pulse Width No
Data Hold Yes
Min/Max Record No
Time Stamp Logging No
Relative Mode No
Compare Mode No
RS-232 Output No
Process Loop Output No
Sleep Mode / Auto Off No
Protective Boot Yes (standard)
Display Type 2000 count LCD
Range Selection Manual
Operating Temperature 32F to 104F (0C to 40C)
Storage Temperature 14F to 122F (-10C to 50C)
Humidity 80% non-condensing
Size 6 x 3.1 x 1.2 (187mm x 86mm x 33mm) with boot
Weight 12oz (340g) with boot
Battery Type 9V Alkaline (NEDA 1604)
Battery Life 500hrs Typical
OverInput Category CAT III 600V
Agency Approval IEC 61010-1
Warranty 3 Years
