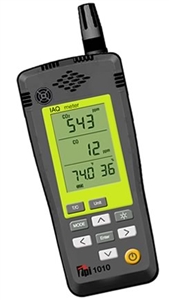

Model 1010A IAQ Meter Specifications
|
|
Function: CO2
|
Range: 0 to 5000ppm
Accuracy: 50°F~104°F: ±5% of rdg+75ppm
<50°F, >104°F: ±10% of rdg+75ppm
|
|
Function: Temperature
|
Range: -5°F to 140°F
-20°C to 60°C
Accuracy: ±2°F
±1°C
|
|
Function: Dew Point Temperature
|
Range: -47°F to 135°F
-44°C to 57°C
Accuracy: Calculation
±1°C
|
|
Function: Wet Bulb Temperature
|
Range: 3°F to 135°F
-16°C to 57°C
Accuracy: Calculation
|
|
Function: Relative Humidity
|
Range: 5% to 95%
Accuracy: ±2°F
±1°C
|
|
Function: CO
|
Range: 0 to 500ppm
Accuracy: ±3ppm or ±5% of rdg whichever is greater
|
|
Function: % Outside Air
|
Range: 0 to 100%
Accuracy: Calculation
|
|
Data Logging
|
Up to 4,000 samples 1 sec to 23hr 59min interval
|
|
Display Type
|
3 line with annunciators and backlight
|
|
CO2 Alarm
|
Audible and visual, selectable level (factory default 30ppm)
|
|
Operating Temperature & Humidity
|
CO and CO2: 14°F to 122°F (-10°C to 50°C)
All Other Function: -4°F to 140°F (-20°C to 60°C)
Humidity 15 ~ 95% non-condensing
|
|
Storage Temperature
|
-4°F to 140°F (-20°C to 60°C)
|
|
Power supply
|
3 AA batteries ( 4.5V)
AC/DC adapter 5Vout (Center positive)
Battery Life: 40 hours typical without backlight
|
|
Output
|
Serial output via USB connection
Infrared output to optional A740 printer
|
