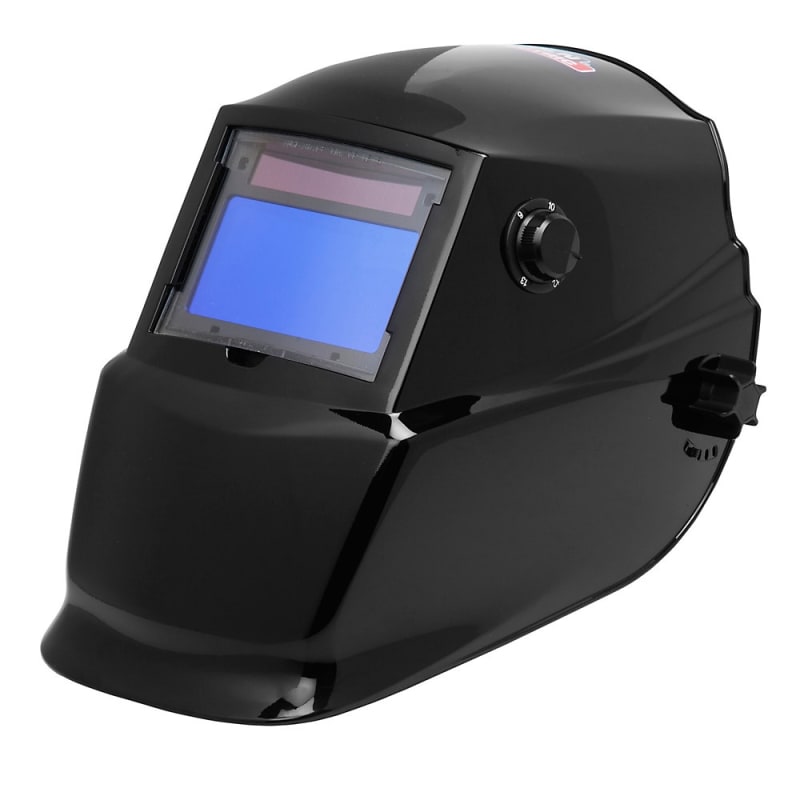

CK3192-1 Lincoln Electric Lincoln Midnite Black Auto-Darkening Welding Helmet

The CK3192-1 Lincoln Electric Lincoln Midnite Black Auto-Darkening Welding Helmet features improved optical clarity for reduced eye strain with auto-darkening DIN 9-13, with 4 arc sensors. This second generation welding helmet has a larger viewing area (3.78 inch x 2.05 inch) and many improved practical features to make welding safer and easier. Highest level optical clarity. Variable sensitivity and delay functions. 4 arc sensors. Replaceable battery. Grind mode. A test button feature. Variable sensitivity and delay with grind mode feature. Its variable-shade lens auto-darkens when an arc is struck. A rugged light weight helmet with comfortable headgear.

• Improved optical clarity for reduced eye strain
• Auto-darkening DIN 9-13, with 4 arc sensors
• Replaceable battery
• Variable sensitivity and delay
• A grind mode feature
• Auto-darkening 9-13 variable shade
• A wide viewing area (3.78” x 2.05”)
• Improved optical lens clarity
• A grind mode feature
• A test button feature
• Four arc sensors, for improved sensitivity
• A replaceable battery, to extend service life
• A unique Canadian themed design, not available in the US market
• Comes with multiple inner and outer protective clear replacement lenses

Whats in the box

• Main helmet assembly
• CR2450 battery with clip
• Operator’s manual
• 4x outer and 3x clear inner lens replacements

CARTRIDGE SIZE	3.54 in x 4.33 in
VIEW SIZE	3.78 in x 2.05 in
UV/IRPROTECTION	Up to shade DIN 16 at all times
NUMBER OF SENSORS	4
SHADE CONTROL	External
VARIABLE WELDING SHADES	DIN 9 to 13
LIGHT SHADE STATE	3.5
POWERSUPPLY	Solar cells with replaceable battery (CR2450)
LIGHT TO DARK SWITCHING TIME	0.00004sec (1/25,000 sec)
SENSITIVITY CONTROL	Highto low, by variable dial knob
DELAYCONTROL	0.1s – 1.0s , by variable dial knob
TIG AMP RATING	5 Amps or greater, DC or AC
COMPLIANCE	DINplus, CE, ANSI Z87.1-2003, CSA Z94.3
OPERATING TEMPERATURE RANGE	14°F - 131°F (-10°C - +55°C)
STORAGE TEMPERATURE RANGE	-4°F - 158°F (-20°C - +70°C)

Parts
KP2851-1 VIKING™ 700G/750S Series Headgear with Sweatband
KP3046-100 Cheater Lens 1.00 MAG
KP3046-125 Cheater Lens 1.25 MAG
KP3046-150 Cheater Lens 1.50 MAG
KP3046-175 Cheater Lens 1.75 MAG
KP3046-200 Cheater Lens 2.00 MAG
KP3046-225 Cheater Lens 2.25 MAG
KP3046-250 Cheater Lens 2.50 MAG
KP2930-1 VIKING™ All Purpose Sweatband Pack
