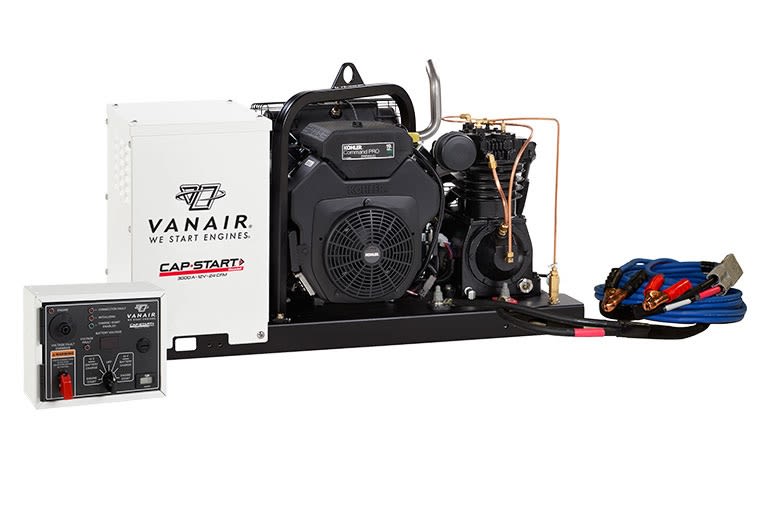

CAP-START®3000+AIR Vanair Super Capacitor 12/24V 3000 Amp 24CFM Jump Starter 052230

CAP-START®3000+AIR Vanair Super Capacitor 12/24V 3000 Amp 24CFM Jump Starter 051375

Price $15,445.00

Price with Selected Options: $15,445.00



Product Code: VAN052230

Add An Air Tank (Optional)

Air Tank*:

Add A Fuel Tank (Optional)

033018*:

Add Power Connection (Optional)

MA269945*:

Remote Start Receptacle Kit (Required)

275704*:

Remote Panel Connection Cable (Required)

275698*:


Qty:
Description Prop65

12/24 Volt Volt Start/Charge - 24 HP EFI Honda® Gas Plus 24 CFM Air with 30’ 3/0 Arctic Grade Start Cable with 12V Fuel Pump, and Cold Weather Package (Skid Mount - no air tank, fuel tank or battery included).

CAP-START®3000 Vanair Super Capacitor 12 Volt 3000 Amp Capacity Jumpstarter. The Vanair CAP-START®3000 featuring the Vanair Super Capacitor (VSC™) provides instantaneous engine starting power to get vehicles back up and running...FAST! No more waiting for batteries to charge — getting the vehicles back to work in mere seconds! CAP-START®3000 is the fastest vehicle starting system on the market and can start all vehicles without downtime. Features include a Fast self-recharge rate of 15 seconds. Elevated starting potential to negate cable voltage loss. High output discharge of up to 3240 AMP, specifically designed to overcome the initial friction for starting rotation in cold engines, followed by continued output power of approximately 800-1000 AMP through the starting event. Able to maintain glow plug and machine/vehicle parasitic loads without draining the capacitor start system. Override function to allow for charging of batteries below 4V. 240 AMP 3-stage charging system. Time out technology to prevent battery over charge with over current monitoring. Weather protected electrical enclosure, reverse polarity protection, open, closed or low circuit safety, low engine oil pressure shut down, engine over temperature shut down and self-regulating 3-stage charging system. Includes 30’ 3/0 starting cables. Flexible down to -67 °F (-55 °C), UL class K stranded copper utilized to minimize voltage drop.

THE
CAP-START®3000 IS PACKED WITH POWER TO GET YOU BACK ON THE ROAD... FAST
3000+ AMPS of Instantaneous Starting Power
12/24 Volt Charging and Starting Capabilities
240 AMP 3-Stage Alternator for Fast Recharging
Industry leading Vanair Super Capacitor (VSC™)
Remote Mount Control Panel (includes 10' harness)
10' Truck battery connection harness included


Remote Control Panel (Air Units Only)
PERFORMANCE
• Vanair Super Capacitor (VSC™)
• 3000 + AMPS Starting Capability
• 12V & 24V Charge & Start
• 240 AMP 3-Stage Alternator
• 24 HP Honda®
• Heavy-Duty Belt Drive System

CONVENIENCE
• Integrated Lifting Points
• Tough, Powder Coated Sheet Metal
• Corrosion-Resistant Galvanneal Steel Canopy
• Anderson Connector at Machine
• Gasoline Fuel
STARTING CABLES
• 30 Feet of 3/0 Polar-Grade Cable
• UL/AWG Specification Compliant
• Fine Stranded, Flexible Copper Wire
• Cold Weather Flexibility
• Tangle Resistant
• Chemical, Abrasion and Water Resistant
• Extruded Polarity Stripe for Safety

SAFETY
• Weather-Protected Electrical Enclosure
• Reverse Polarity Protection
• Open, Closed or Low Circuit Safety
• Low Engine Oil Pressure Shut Down
• Engine Over Temperature Shut Down
• Smart, Self-Regulating 3-Stage Charging System
CONTROL PANEL
• Engine Start/Stop Function
• Hour Meter
• Voltage Output Display
• Charge/Start Mode Selector
• Mode Indicator Lights
• System Fault Lights
OPTIONAL ACCESSORIES
• Industrial 3/0 Cables (25, 30 & 35 ft.)
• Vibration Isolators
• Cable Kits for Connection to Chassis Battery
• Maintenance Kit
• Cold Weather Kits
• 24 CFM Air Compressor
Product Features
  • 3000+ AMPS of Instantaneous Starting Power
  • 12/24 Volt Charging and Starting Capabilities
  • 240 AMP 3-Stage Alternator for Fast Recharging
  • Innovative Vanair Super Capacitor (VSC™)
Specifications
  • 12/24 Volt Volt Starting: Up to 3240 AMP Starting Capability
  • Fuel Capacity: Plumb to Chassis or Remote 11 Gal. tank
  • Fuel Type: Gasoline
  • Engine Type: 24 HP EFI Honda
  • Drive System: Dual V & Micro V Serpentine
  • Battery: Tie to Chassis
  • DC Alternator: 240 AMP 12V/24V DC
  • 3000+ Amps of Instant Starting Power
  • 12/24 Volt Charging and Starting Capabilities
  • 240 AMP 3-Stage Alternator for Fast Recharging
  • Innovative Vanair Super Capacitor (VSC)
  • Dimensions with fittings (In.): 45.0L X 21.0W X 27H
  • Dry Weight (Lbs.): 575 (cables not included in weight)
