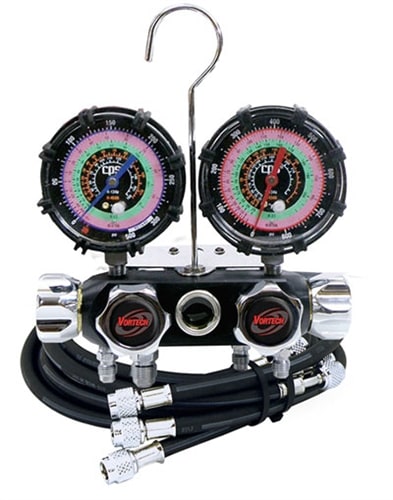

MV4H4P5Z CPS BlackMax Black - Chrome R-134a 22 404A 410A 4 Valve Anodized Aluminum Sight Glass Manifold Gauge Set With 5 ft. Premium Hoses

MV4H4P5Z CPS BlackMax Black - Chrome R-134a 22 404A 410A 4 Valve Anodized Aluminum Sight Glass Manifold Gauge Set With 5 ft. Premium Hoses

Alternative Views:


Price $165.78

Product Code: CPSMV4H4P5Z
Qty:

Description Prop65

BlackMax® Black & Chrome series 4 valve anodized aluminum block body with three ¼" SAE and one ⅜" SAE vacuum port, Vortech® Deep Vacuum Valves, 3 premium 5ft Pro-Set® Black & Chrome hoses with ¼" SAE 45° Premium Hoses, an extra large sight glass for monitoring flow, 3 ⅛" (80mm), Class 1.0 R-134a, 22, 404A, 410A with internal silicon dampening cup for Flutter-Free operation, protective gauge boots, and hanging hook.  MADE IN USA
Product Features
  • BlackMax® Black & Chrome series 4 valve anodized aluminum block body
  • Three ¼" SAE and one ⅜" SAE vacuum port
  • Vortech® Deep Vacuum Valves
  • 3 premium 5ft Pro-Set® Black & Chrome hoses with ¼" SAE 45° ends
  • Extra large sight glass for monitoring flow
  • 3 ⅛" (80mm), Class 1.0 with internal silicon dampening cup for Flutter-Free operation
  • Protective gauge boots
  • Hanging hook
  • MADE IN USA
Specifications:
Body Type: 4 valve anodized aluminum body with three ¼" SAE charging ports, one ⅜" SAE vacuum port and large sight glass
Valve Type: Vortech® Deep Vacuum Valves
Gauge Type: 3 ⅛" (80mm), Class 1.0 with internal silicon dampening cup for Flutter-Free operation
Refrigerant Scales: R-134a, 22, 404A, 410A
Pressure Scales: PSI
Temperature Scales: °F
Hoses: 3 premium 5ft Pro-Set® Black & Chrome hoses with ¼" SAE 45° ends
Warranty: 1 year
Packaging: Custom tin box

2-Valve Manifold 1/4" SAE Fittings 3-1/8" 1.0% Gauges with Triple-Seal™ Valves
MBH4 R134a, R22, R404A, R410A Gauges, Manifold Only
MBH4P5Z R134a, R22, R404A, R410A Gauges and 5 ft Premium Hoses
MBH4P5AZ R134a, R22, R404A, R410A Gauges and 5 ft Premium Anti-Blow Back Hoses
MBH4P5EZ R134a, R22, R404A, R410A Gauges and 5 ft Premium Ball Valve Hoses
2-Valve Manifold 1/4" SAE Fittings 3-1/8" 1.0% Gauges with Vortech® Valves
MV2H4Z R134a, R22, R404A, R410A Gauges, Manifold Only
MV2H4P5Z R134a, R22, R404A, R410A Gauges and 5 ft Premium Hoses
MV2H4P5AZ R134a, R22, R404A, R410A Gauges and 5 ft Premium Anti-Blow Back Hoses
MV2H4P5EZ R134a, R22, R404A, R410A Gauges and 5 ft Premium Ball Valve Hoses
4-Valve Manifold 1/4" SAE Fittings, 3/8" SAE Vac Port, 3-1/8" 1.0% Gauges with Vortech® Valves
MV4H4Z R134a, R22, R404A, R410A Gauges, Manifold Only
MV4H4P5Z R134a, R22, R404A, R410A Gauges and 5 ft Premium Hoses
MV4H4P5AZ R134a, R22, R404A, R410A Gauges and 5 ft Premium Anti-Blow Back Hoses
MV4H4P5EZ R134a, R22, R404A, R410A Gauges and 5 ft Premium Ball Valve Hoses
