6019 Associated Battery Charger Parts List

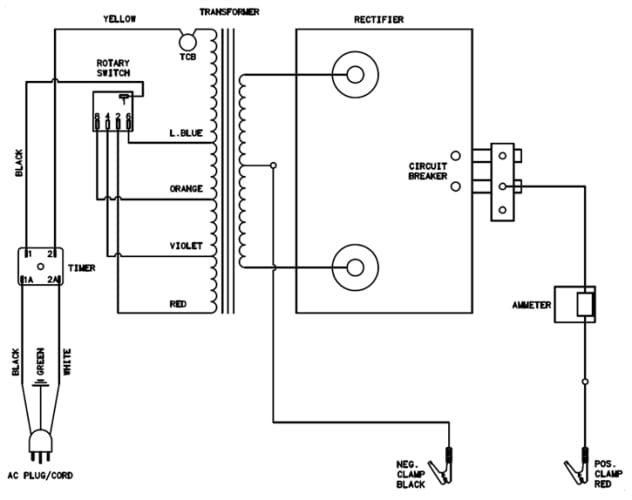

MODEL 6019 REPAIR PARTS
Diagram # Description Part Number
1 Transformer 611102
2 Rectifier 611097
3 Charge Rate Switch 611187
4 Timer w/knob 610895
5 Ammeter 610695
6 Front Panel 611100
7 DC Circuit Breaker (1) 611028
8 Back Panel 610977
9 Right Side Panel 611032
10 Top Panel 611011
11 Base Panel 610054
Not Shown


AC Power Cord 610696

DC Cable Set 610824

Front Leg 610825

Axle w/nuts 610052

Wheels w/nuts (2) 605672

Handle 610753

Left Side Panel 611031



MAINTENANCE INSTRUCTIONS
Worn clamps should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part number of DC Cable Set. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a qualified serviceman. Incorrect reassembly may result in a risk of electric shock when the unit is subsequently used.

Sort By:
Page of 1
603147 Associated Pointer Knob
603147 Associated Pointer Knob
Price $12.34

Pointer Knob. Half Round Shaft.
605672 Associated Wheel Kit With Nuts (Set Of Two Plastic)
605672 Associated Wheel Kit With Nuts (Set Of Two 6" Plastic)
Price $34.92

605672 Associated Wheel Kit With Nuts (Set Of Two 6" Plastic)
610043 Associated 3/8 Axle Cap (Each)
610043 Associated 3/8 Axle Cap (Each)
Price $2.18

610043 Associated 3/8 Axle Cap (Each)
610695 Associated Ammeter Horizontal 0-40 Amp Range W/ Start
610695 Associated Ammeter Horizontal 0-40 Amp Range W/ Start
Price $26.99

Horizontal Snap In Mount, no tools needed to install. "Wire Through" Induction pick-up
610820 Associated DC Cable Set
610820 Associated DC Cable Set
Price $117.53

DC CABLE SET
610825 Associated Leg
610825 Associated Leg
Price $33.75

Associated 610825 LEG
610895 Associated Timer W/Knob
610895 Associated 90 Minute Mechanical Timer With Knob
Discontinued See 611254

Mechanically controls charging in timed Mode with manual hold mode. Two Independent Single Pole Single Throw (SPST) Switches rated 15 amperes. 1/4" spade terminals. Timer has Hold Position.
*See 611254 retrofit Timer kit.
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)
Price $17.29

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.
611028 Associated DC Circuit Breaker
611028 Associated DC Circuit Breaker
Price $26.38

DC CIRCUIT BREAKER
611097 Associated Rectifier Installation Kit
611097 Associated Rectifier Installation Kit
Price $55.05

Rectifier Installation Kit. The Highest rated 20 Diode Rectifier in the market.
611187 Associated Rotary Selector Switch with Pointer Knob
611187 Associated Rotary Selector Switch with Pointer Knob
Price $42.76

This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.
611245 Associated 120 Minute Electronic Timer with Knob
611245 Associated 120 Minute Electronic Timer with Knob
Price $65.55

611245 Associated 120 Minute Electronic Timer with Knob, for use in units with a 120 minute timer already installed. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

611280 Associated Front Panel 6019 120 Min Timer
611280 Associated Front Panel 6019 120 Min Timer
Price $59.06

Front Panel 6019 120 Min Timer
6200 Associated Side Terminal Adapter Pair
6200 Associated Side Terminal Adapter Pair
Price $6.62

Need side terminal adapters? Model 6200 fits Associated and most other insulated clamps for easier connections. Side terminal adapters clip easily into place inside the clamp rivit and pull out of the way when not in use.
6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair)
6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair)
Price $32.09

Made In U.S.A.Professional quality heavy duty 500 amp replacement clamps for all booster cables. Replace Associated clamps or other manufacturer's products with these professional quality insulated clamps. Clamps incorporate Associated's innovative "Flexi-Spring" for long cable life at the point it bends most. Possibly the best clamp in the industry.
6202 Associated 500 Amp Heavy Duty Coated Clamp  Kit (Pair - Bulk Packaged)
6202 Associated 500 Amp Heavy Duty Coated Clamp Kit (Pair - Bulk Packaged)
Price $28.95

Made In U.S.A.6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated for repair shops or fleet maintenance departments and don't need retail packaging, this is your answer. White box units have no POP Sales card attached and are bulk packaged. Professional quality heavy duty 500 amp replacement clamps for all booster cables. Replace Associated clamps or other manufacturer's products with these professional quality insulated clamps. Clamps incorporate Associated's innovative "Flexi-Spring" for long cable life at the point it bends most. Possibly the best clamp in the industry.
