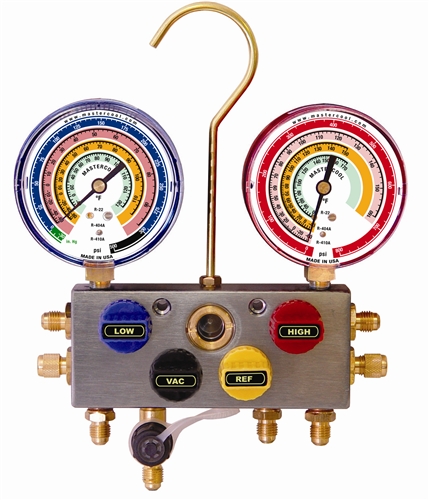

86836 Mastercool 4-Way Manifold Gauge Set R134A W/4-36" Hoses With Straight Snap-N-Seal? Couplers 3 1/8"

86836 Mastercool 4-Way Manifold Gauge Set R134A W/4-36" Hoses With Straight Snap-N-Seal Couplers 3 1/8"
All features listed may not be in photo

Price $303.69


Product Code: MSC86836
Qty:

Description Prop65

Mastercool 86836 R134A 4-Way Aluminum Manifold Gauge Set W/4-36" Hoses with Straight Snap-N-Seal Couplers and 3 1/8" Gauges - Mastercool is the leading manufacturer of professional quality AC/R manifold gauge sets. Their manifold gauge sets are constructed of the finest materials and machined with precision to the highest standards. At Mastercool, every manifold they build is built to last. With features like: 3/8” BORE 4-WAY BALL VALVE MANIFOLD, Full 3/8” bore through the block for increased flow resulting in considerably faster charging and recovery, Ball valve rotates 90˚ between two Teflon washers requiring little effort to turn, even under pressure, Opens and closes quickly with only a quarter turn, Knob position shows whether valves are open or closed (Vertical = OPEN, Horizontal = CLOSED). Includes set of four 36" hoses with straight Snap-N-Seal couplers.
Product Features
  • 3/8” BORE 4-WAY BALL VALVE MANIFOLD
  • Full 3/8” bore through the block for increased flow resulting in considerably faster charging and recovery
  • Ball valve rotates 90° between two Teflon washers requiring little effort to turn, even under pressure
  • Opens and closes quickly with only a quarter turn
  • Knob position shows whether valves are open or closed (Vertical = OPEN, Horizontal = CLOSED)
  • Set of Four 36" Hoses (Blue, Yellow, Red, Black)
  • Straight Snap-N-Seal Couplers
  • Solid extruded aluminum body
  • Stainless steel ball valve design controls flow smoothly and quickly with only a quarter turn
  • Extra large sight glass for visual refrigerant check
  • Large 3-1/8" (80mm) gauges
  • Silicone dampened gauges smooth out needle movement
  • Gauges can easily recalibrate in the field to maintain accuracy
  • R134a Auto A/C 4-way manifold gauge set
  • Packaged in blow molded case
  • Hose connections for blue and red are 14mm-M
  • Yellow hose is 1/2" ACME-F with Auto Shut-Off Valve
  • Gauges are 3-1/8" in PSI/Kpa and °F
