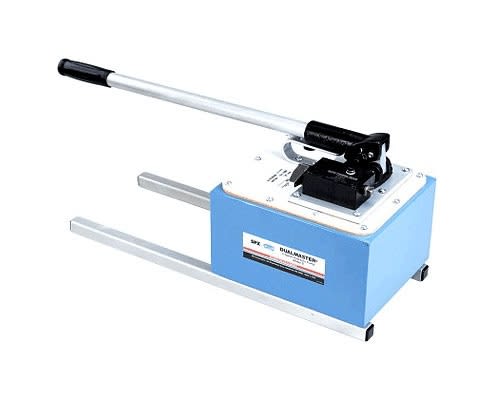

4008 OTC Dualmaster 2 Speed Hand Pump

4008 OTC Dualmaster 2 Speed Hand Pump

Alternative Views:


Price $4,543.00


Product Code: OTC4008
Qty:

Description Prop65

OTC 4008 DualmasterŪ Two-Stage Hand Pump - OTC's finest hand-operated power units. These fast acting, two-stage pumps not only handle high force, high pressure requirements up to 10,000 PSI, but deliver extremely high volume at low pressure (7.35 cu. in. per stroke from 0 to 200 PSI) to quickly move the ram piston to and from the work. Pumps have a built-in relief valve, preset at the factory for 10,000 PSI. Maximum handle effort is 90 lbs. Two basic Dualmaster models are offered: No. 4008 for use with single-acting rams, and No. 4009 for use with double acting rams.
Product Features

Specifications:

OTC 4008 DualmasterŪ Two-Stage Hand Pump Specifications
Maximum
Pressure
Piston
Diameter
Piston
Stroke
Reservoir
Capacity
Oil
Port
First Stage 200 PSI
2-1/2"1-1/2"
460 cu in useable
3/8" NPTF
 Second Stage 10,000 PSI
1/2"
