117-039 2175 Solar 130 amp MIG welder (phase-control)

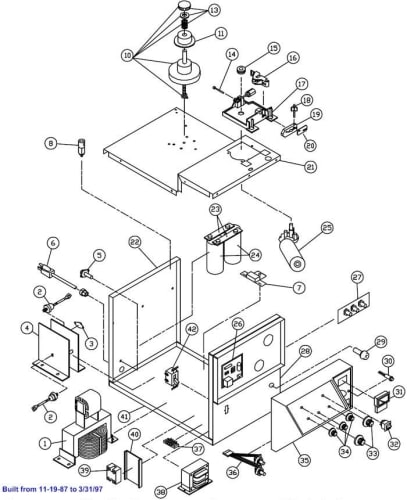

117-039 Replacement Parts List
Item No.
Lincoln #
Customer #
Description
1

860-948-888
Main Weld Transformer
2
214-004-666
214-004-666
Diode
3
216-053-666
216-053-666
Thermostat
4

860-506-666
Fan Shroud / Heat Sink Assembly
5

246-116-666
Fuse Holder


245-060-666
Fuse (BAN30 or BLN30)
6

248-164-666
Power Cord, 30"
7

245-145-666
Resistor, 25 Ohm, 50 Watt
8
246-086-666
246-212-666
Gas Solenoid, 24 Volt DC
10
312-066-666
860-575-000
Spindle
11
312-110-666
541-083-000
Spindle Adapter
13

246-363-000
Tensioner Knob Only (no spring or washer)
14

239-123-000
239-208-000
Inlet Guide Tube
15
310-122-500
4323
Drive Roller, 0.024 / 0.030 / 0.035

860-616-002
4324
Drive Roller for Aluminum
16

880-111-666
312-107-000
Tension Arm
17
880-130-666
880-130-666
Drive Base Assembly with Arm
18

246-326-666
Gun Connector Knob
19
412-465-666
412-465-666
Gun Connector Block
20

412-464-000
Copper Jumper
21

410-680-010
Drive Deck
22

880-555-010
Back Panel
23

410-190-666
Buss Bar
24
213-018-666
213-018-666
Capacitor, 45,000 mf, 45 Volt DC
25
216-089-666
216-089-666
Drive Motor with Gearbox
26
880-113-666
880-292-008
Main Circuit Board
27

880-114-666
Spot-Stitch Circuit Board
28

410-344-030
Front Panel
29
312-045-666
312-046-666
Receptacle Assembly
30

245-059-666
Power Indicator Light
31

247-063-000
Wire Speed Meter
32

216-077-666
Momentary Paddle Wire & Gas Switch
33

246-140-666
Knob 1.5"
34

246-139-666
Knob 1-3/16"
35

312-101-666
Molded Nose
36
880-052-666
860-936-666
Heat & Wire Speed Harness with Pots
37

239-094-666
Terminal Block
38

880-041-888
Control Transformer, 230 Volt AC to 24 Volt DC, 6 Amp
39
216-055-666
216-055-666
Triac Relay, 40 Amp
40

412-134-666
Triac Heatsink
41

410-602-666
Base
42a
216-042-666
216-042-666
Power Switch with Open Contacts for 117-039-200
42b
246-371-000
246-371-000
Power Switch with Enclosed Contacts for 117-039-200a
43

238-009-500, 4018
Ground Cable with Plug & Clamp, 12'
44
239-292-666 41007
Ground Clamp
45
334-303-001
334-286-666
Gas Regulator (Not Shown)
46
059-245-666
059-089-000
Gas Hose (Not Shown)
47

246-103-000
Hood Handle (Not Shown)
48
KP11-25, KH710
43090, 334-159-300,
KP2039-1B1, M15522
0.025 Contact Tips (Not Shown)
49
KP11-30, KH711
43100, 334-160-300,
KP2039-2B1, M15523
0.030 Contact Tips (Not Shown)
50
KP11-35, KH712
43110, 334-161-300,
KP2039-3B1, M15524
0.035 Contact Tips (Not Shown)
51
KP11-45, KH713
43390, 334-202-300,
KP2039-4B1, M57242
0.045 Contact Tips (Not Shown)
52
KP21T-50
43480, 334-203-300,
KP1942-1, M15578
Steel Welding Nozzle (Not Shown)
53
KP21T-62
43300, 334-210-300,
KP1942-3
Aluminum Welding Nozzle (Not Shown)
54
KP21-62-FAS
43290, 334-211-300,
KP1956-1, M15577
Spot Welding Nozzle (Not Shown)
55
238-155-100
238-155-100
Mig Gun 10' (Not Shown)
56
KP45-40-15
4331, KP1937-1
Steel Liner (Not Shown)
57
KP1959-1
4325, 334-374-000
Teflon Liner (Not Shown)
Sort By:
071-014-908 Century Drive Roller Key Set 071-014-908 Century Drive Roller Key Set

Century Drive Roller Key Set. For use with Mig welders made by Century Mfg Co. Set includes both flat stock and woodruf keys for most welders, use when buying a new drive roller. Some older units had the key made into the drive roller, the new style drives rollers are slotted and require a woodruf key to lock them to the shaft.

Discontinued
081-055-666 Screw With Washer & Nut 081-055-666 Screw With Washer & Nut

081-055-666 Screw With Washer & Nut

Discontinued
131-211-100 Mig Gas Conversion Kit 2111 131-211-100 Mig Gas Conversion Kit 2111

131-211-100 Mig Gas Conversion Kit 2111. Includes fixed regulator, 24 Volt Solenoid, Gas hose and clamps, fittings for hose and welder.

Discontinued
131-211-200 Mig Gas Regulator & Hose Kit 131-211-200 Mig Gas Regulator & Hose Kit

131-211-200 Mig Gas Regulator & Hose Kit. Includes fixed regulator, Gas hose and clamps, fittings for hose and welder.

Discontinued
131-311-908 0-30 CFH 2 Stage Gas Conversion Kit (2112) 131-311-908 0-30 CFH 2 Stage Gas Conversion Kit (2112)

131-311-908 Gas conversion Kit (2112) Mig Gas Regulator & Hose Kit for Mig Welders. Includes adjustable regulator, 4' Gas hose and clamps, fittings for hose and welder. 0-30 CFH 2 Stage Gas regulator.

Price $149.95
213-018-666 Capacitor 213-018-666 Capacitor

Capacitor for Century and other Welders. Replaces Marquette 40400027

Discontinued
214-004-666 150 Amp Diode 214-004-666 150 Amp Diode

214-004-666 150 Amp Diode. Replaces diodes from other vendors. Marquette, Lincoln, Napa and many others. 300 Peak Reverse voltage.

Discontinued See 214-013-666
214-013-666 Christie Automotive Rectifier Diode 150 Amp 214-013-666 Christie Automotive Rectifier Diode 150 Amp (541106-013)

214-013-666 Christie Automotive Rectifier Diode 150 Amp 600 Peak reverse Volt (541106-013). Replaces diodes from other vendors. Marquette, Lincoln, Century, Napa and many others. (150K60A).

Price $27.95
216-042-666 Switch, 40 Amp 250 Volt  DPST 216-042-666 Switch, 40 Amp 250 Volt DPST

216-042-666 Switch, 40 Amp 250 Volt  DPST

Discontinued
216-053-666 Thermal Breaker 216-053-666 Thermal Breaker

216-053-666 Thermal Breaker

Price $66.52
216-055-666 Relay Triac 40 Amp Replaces Marquette # 43700007 216-055-666 Relay Triac 40 Amp

Relay Triac 40 Amp Replaces Marquette # 43700007

Price $107.82
216-079-666 24 Volt Drive Motor 216-079-666 24 Volt Drive Motor

216-079-666 24 Volt Drive Motor

Discontinued
216-089-666 24 Volt Drive Motor 216-089-666 24 Volt Drive Motor

216-089-666 24 Volt Drive Motor.

Discontinued
Gun, Mig 130 Amp 10 Ft. The 238-155-000 replaces: 238-224-000, 238-224-100, 238-155-100, 123-155-500, 4320 238-155-000 Gun, Mig 130 Amp 10 Ft

Gun, Mig 130 Amp 10 Ft. The 238-155-000 replaces: 238-224-000, 238-224-100, 238-155-100, 123-155-500, 4320

Discontinued
239-052-908 Lincoln Cable Connector, Set #4-#1 (4031) 239-052-908 Lincoln Cable Connector, Set #4-#1 (4031)

Lincoln Cable Conncetor Set. Precision machined from special contour extended brass. Equipped with heat and oil resistance molded covers. Easily twists into position. Model 239-052-908. One pair 3/8 brass male plugs. Fits most Century Arc and MIG welders. For cable size #4-#1

Price $89.50
239-292-666 41007 Clamp, Ground 239-292-666 41007 Clamp, Ground

239-292-666 41007 Clamp, Ground

Price $30.60
246-086-000 Century Solenoid 24 Volt Air Service 246-086-000 Century Solenoid 24 Volt Air Service

246-086-000 Century Solenoid 24 Volt Air Service

Discontinued See 246-086-666
246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008. 246-086-666 Century Solenoid 24 Volt Air Service

246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008, B7161370.

Price $119.85
246-107-666 Century Knob 1-1/2" Round 1/4" Stem Diameter Black Plastic 246-107-666 Century Knob 1-1/2" Round 1/4" Stem Diameter Black Plastic

246-107-666 Century Knob 1-1/2" Round 1/4" Stem Diameter Black Plastic. Replaces 246-140-666

Price $12.85
246-139-666 Century Control Knob 1-3/16" Skirted 246-139-666 Century Control Knob 1-3/16" Skirted

246-139-666 Century Control Knob 1-3/16" Skirted. Fits 1/4" half shaft switches.

Price $15.95
246-326-666 Century Gun Connector Knob 246-326-666 Century Gun Connector Knob

246-326-666 Century Gun Connector Knob

Price $11.95
246-371-000 Switch, DPST 40 Amp 246-371-000 Switch, DPST 40 Amp

246-371-000 Switch, DPST 40 Amp

Price $86.82
310-122-500 Century Steel Drive Roller .024 .030 .035 4323 310-122-500 Century Steel Drive Roller .024 .030 .035 4323

Century Drive Roller .024 .030 .035 in Part number 4323. For use with steel welding wire in all Mig welders made by Century Mfg Co. Does Not Include key.

Price $23.70
312-045-666 Receptacle Assembly 312-045-666 Receptacle Assembly

312-045-666 Front Panel Female Receptacle Kit for many Century made welders. For matching male plugs see part # 239-052-908. Replaces part # 312-028-100.

Price $74.50
312-066-666 Spindle 312-066-666 Spindle

Spindle assembly. 246-363-000 Knob, 081-055-666 Bolt Washer, 330-029-666 Spring, 312-193-000 Spindle. Spool adapter (312-110-666) is not included in this kit.

Discontinued
334-203-000 Nozzle, 1/2 Id 334-203-000 Nozzle, 1/2 Id

Tweco Style MIG Welding Nozzle, Recessed. (1 pack). Replaces Century/Lincoln part numbers: 4348, 43480, 334-203-100, 334-203-500, 334-203-908, M15578, Magnum 100, KP21T-50, 21-50. Works with most Century and Lincoln Electric welders.

Price $16.54
334-221-000 Trigger, Mig Gun 334-221-000 Trigger, Mig Gun

334-221-000 Trigger, Mig Gun

Price $56.50
334-227-000 Tube, Conductor Large Id 334-227-000 Tube, Conductor Large Id

334-227-000 Tube, Conductor Large Id

Price $61.55
334-228-000 Diffuser, Gas Mig Gun Large Id 334-228-000 Diffuser, Gas Mig Gun Large Id

Diffuser, Gas Mig Gun Large Id. Gas diffuser for the following MIG guns: 4320, 238-155-000, 238-155-100, 238-155-500, 238-224-000, 238-224-100.

Price $40.33
334-303-001 Regulator, Gas 7-35 Cfh 334-303-001 Regulator, Gas 7-35 Cfh

334-303-001 Regulator, Gas 7-35 Cfh

Price $210.89
412-465-666 Mig Gun Connector Block 412-465-666 Mig Gun Connector Block

Mig Gun Connector Block

Price $77.08
860-616-908 Century Composite Aluminum Drive Roller 43240 860-616-908 Century Composite Aluminum Drive Roller 43240

860-616-908 Century Composite Aluminum Drive Roller 43240. (860-908-002) For use with soft welding wire in all Mig welders made by Century Mfg Co.

Price $42.50
880-052-666 Heat And Wire-Feed Potentiometers With Harness 880-052-666 Heat And Wire-Feed Potentiometers With Harness

880-052-666 Heat And Wire-Feed Potentiometers With Harness

Price $134.03
880-113-666 Circuit Board Assembly, Phase Control 880-113-666 Circuit Board Assembly, Phase Control

Circuit Board Assembly, Phase Control. Replaces the 860-934-000, 880-113-000, 880-154-000, 880-292, 880-292-003, 880-292-008 and others.

Discontinued
880-130-666 Drive Deck 880-130-666 Drive Deck with Arm

880-130-666 Drive Deck

Price $170.36
KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023 KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack)

KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023, Replaces Century and Marquette Part Numbers:4309, 43090, 334-159-000, 334-159-300, 334-159-908, M15522, KP11-25 & Others. Used on Century made welders model 117-001 to 117-090.

Price $10.10
KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack) KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack)

KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack). Same as KP11-30, KP2039-2B1, M15523, Mig030.  Replaces Century and Marquette Part Numbers: 4310, 43100, 334-160-000, M15523, KP11-30 & Others. Used on Century made welders model 117-001 to 117-090.

Price $10.10
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KH712 Lincoln .035" Tweco Style Mig Contact Tip (10 Pack)

KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. Replaces Century and Marquette Part Numbers: 4311, 43110, 334-161-000, M15524, KP11-35 & Others. Used on Century made welders model 117-001 to 117-090.

Price $10.10
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack)

KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack) Replaces KP11-45, KP2039-4B1, M57242, Mig045, 43990, 334-202-300

Discontinued See KP11-45
KH727 Lincoln Nozzle, Spot Weld (each) KH727 Lincoln Nozzle, Spot Weld (each)

KH727 Lincoln Nozzle, Spot Weld (each). Replaces Century Part Numbers: 4329, 43290. 334-211-000, 334-211-100, 334-211-300, 334-211-500, 334-211-908, KP1956-1, KP21-62-FAS.

Price $15.75
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KP11-45 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack)

KP11-45 Lincoln .045" Tweco Style Mig Contact Tip (Sold Each) Replaces KH713, KP2039-4B1, M57242, Mig045, 43990, 334-202-300

Price $7.50
KP1959-1 Mig Gun Liner .035 - .045 10 Ft Teflon KP1959-1 Mig Gun Liner .035 - .045 10 Ft Teflon For Aluminum

Mig Gun Liner .035 - .045 10 Ft, For most Century Solar and small Lincoln welders using aluminum wire. Replaces  (4325, 334-230, 334-374) - Teflon Liner. For Steel See KP1937-1, 4331, 334-229, 334-373 Steel Liner.

Price $49.80
KP21-62-FAS Lincoln Nozzle, Spot (each) KP21-62-FAS Lincoln Nozzle, Spot (each)

KP21-62-FAS Lincoln Nozzle, Spot (each).Lincoln Electric/Century Spot Welding Nozzle (1 pack). Replaces part numbers 4329, 43290, 334-211-000, 334-211-100, 334-211-500, 334-211-908, KH727, KP1956-1, Magnum 100L, Tweco 21-62-FAS.

Price $15.65
KP21T-50 Lincoln Mig Gas Nozzle Recessed Steel Welding KP21T-50 Lincoln Mig Gas Nozzle Recessed Steel Welding

KP21T-50 Lincoln Nozzle, Fixed Recess .505 in (12.8 mm) inner diameter. The nozzle protects threads and openings during the MIG welding process, directs shielding Gas around the tip and MIG wire for protection. Use when welding with shielding Gas only. Steel Welding.

Price $13.50
KP21T-62 Lincoln Nozzle, Aluminum (each) KP21T-62 Lincoln Nozzle, Aluminum (each)

KP21T-62 Lincoln Nozzle, Aluminum (each). Century Aluminum Nozzle (1 pack). Replaces part numbers 4330, 43330, 334-210-000, 334-210-100, 334-210-300, 334-210-500.

Price $13.50
KP45-40-15 Mig Gun Liner .035 - .045 15Ft Steel KP45-40-15 Mig Gun Liner .035 - .045 15Ft Steel

Mig Gun Liner .035 - .045 15Ft, For most Century Solar and small Lincoln welders. Replaces KP1937-1, 4331, 334-229, 334-373 Steel Liners. For Aluminum See KP1959-1 (4325, 334-230, 334-374) - Teflon Liner.

Price $25.56
S27985-4 Lincoln Electric Drive Motor S27985-4 Lincoln Electric Drive Motor

Lincoln Electric S27985-4 Wire Drive Assembly - Replaces older obsolete Century Units as well.

Price $192.00
