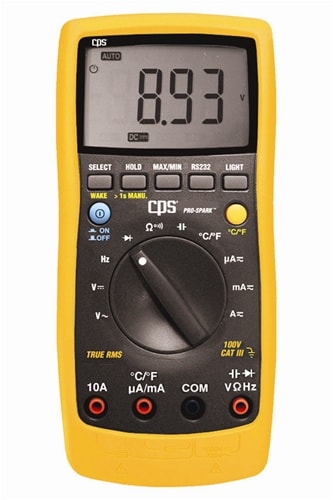

DM450 CPS True RMS Digital Multimeter

DM450 CPS True RMS Digital Multimeter

Price $115.61

Product Code: CPSDM450
Qty:

Description Prop65

The CPS DM450 True RMS Digital Multimeter Includs features needed to troubleshoot most electrical and HVAC problems. Simple to use with pushbuttons acessable even in gloves. Advanced features like an RS232 data port for computer logging and interface, 4 digit large charicter display, True-rms, frequency, capacitance, temperature, data hold and min-max record, frequency make this meter far and above the best choice.
Product Features
  • RS-232 interface
  • Designed to international safety standard IEC1010 CAT.III 1000V
  • Secondary molded case
  • Display: 4 digit large character LCD
  • DC Voltage: 60m/6/60/600V ± 0.5%, 1000V ± 0.8%
  • AC Voltage: 60m/6/60/600V ± 0.8%, 700V ± 1.0%
  • DC Current: 600?/6000?/60m/600mA ± 1.2%, 10A ± 1.5%
  • AC Current: 600?/6000?/60m/600mA ± 1.5%, 10A ± 2.0%
  • Resistance: 600/6k/60k/600k/6M˝ ±1.0%, 60M˝ ± 1.5%
  • Capacitance: 6nF ± 1.8%, 60n/600n/ 6? F ± 1.0%, 60?/600?/6mF ± 1.5%
  • Frequency: 6000/60k/600k/6M/60MHz ± 0.5%
  • Diode Test
  • Continuity Test - audible
  • Autorange and Manual Range
  • Data Hold
  • Max./Min. Value Measurement
  • Back Light
  • Auto Power Off
  • One 9V Alkaline battery
  • Size: 195 x 92 x 43mm
  • Weight: Approx. 380g (including battery)
Accessories:
  • Hard carrying case
  • Test leads
  • “K” type bead Thermocouple
  • Data log application software & RS232 cable
Temperature:
  • -40°C to 500°C ± 2%
