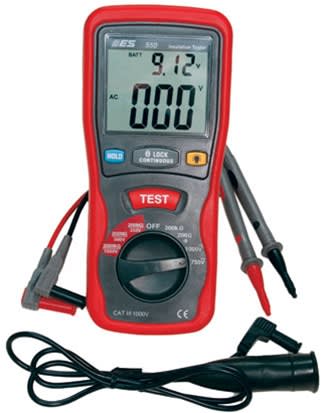

550 Electronic Specialties Insulation Tester
550 Electronic Specialties Insulation Tester

Price $318.54

Product Code: ESI550
Qty:

Description Prop65

The 550 is used to check high voltage circuits on Hybrid cards for leaks to ground. The 550 can supply 250V, 500V and 1000V test voltages for doing complete insulation testing. You can not easily test for high voltage leakage without a high volt test source. The 550 is auto-ranging and can measure up to 2000 MegaOhm with a resolution of 1 K Ohm.
Product Features
  • Used to check for voltage leaks on Hybrid car electrical wiring
  • Outputs 250V, 500V and 1000V test voltages for taking very high Ohm readings
  • CAT III safety rated - a requirement of the car manufacturers
  • Comes with a blow molded case
  • Meets IEC10101, CATIII 1000V
  • Large dual display with white LED backlighting
  • Test Hold function for easy operation
  • Over Range indication
  • Low battery indication
  • Includes (6) AA batteries, test leads & blow mold case
Specifications:
  • Voltage AC: 0-750V 1V
  • Voltage DC: 0-1000V 1V
  • Resistance: 0-200, 2000 .1 Ohm
  • Test Voltage: 250V-200 MegOhm, 500V-200 MegOhm, 1000V-2000 MegOhm
  • Continuity Test: Audible Beep < 40 Ohm
  • This tester is used in all NAPA Hybrid training courses
